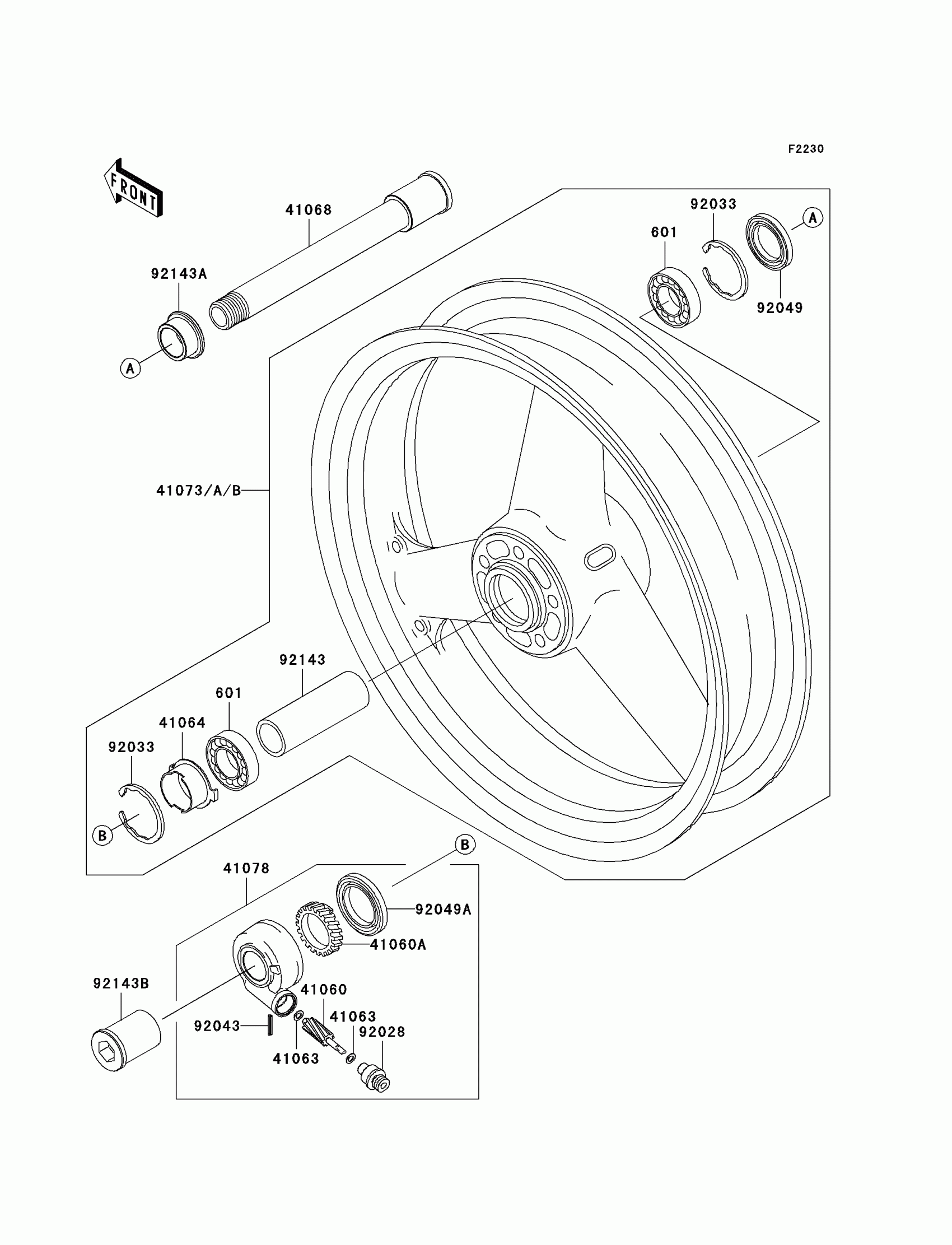

Kawasaki ZZR1200 Front Wheel Diagram

Description

Price

601

BEARING-BALL,#6005UU

601B6005UU

$22.38

41060

GEAR-METER SCREW,9T

41060-1140

$20.37

41060A

GEAR-METER SCREW,24T

41060-1141

$27.51

41063

WASHER,5.1X9X0.4

41063-001

$4.17

41064

RECEIVER-SPEEDOMETER

41064-1055

$12.07

41068

AXLE,FR

41068-1327

$89.47

41073

WHEEL-ASSY,FR,BLACK

41073-1618-R2

$1,149.10

41078

CASE-ASSY-METER GEAR

41078-1082

$121.46

92028

BUSHING,METER GEAR CASE

92028-1634

$17.08

92033

RING-SNAP,47MM

92033-1042

$3.22

92043

PIN,SPRING,3X18

92043-1454

$3.92

92049

SEAL-OIL,BJN 32 47 5

92049-1377

$9.88

92049A

SEAL-OIL,BJN-C2 35 52 5

92049-1378

$13.88

92143

COLLAR,FR HUB,L=94

92143-1476

Unavailable

92143A

COLLAR,FR AXLE,RH,L=17.5

92143-1477

$37.15

92143B

COLLAR,FR AXLE,LH,L=44.5

92143-1478

$45.80
