2005 Kawasaki ZZR1200 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

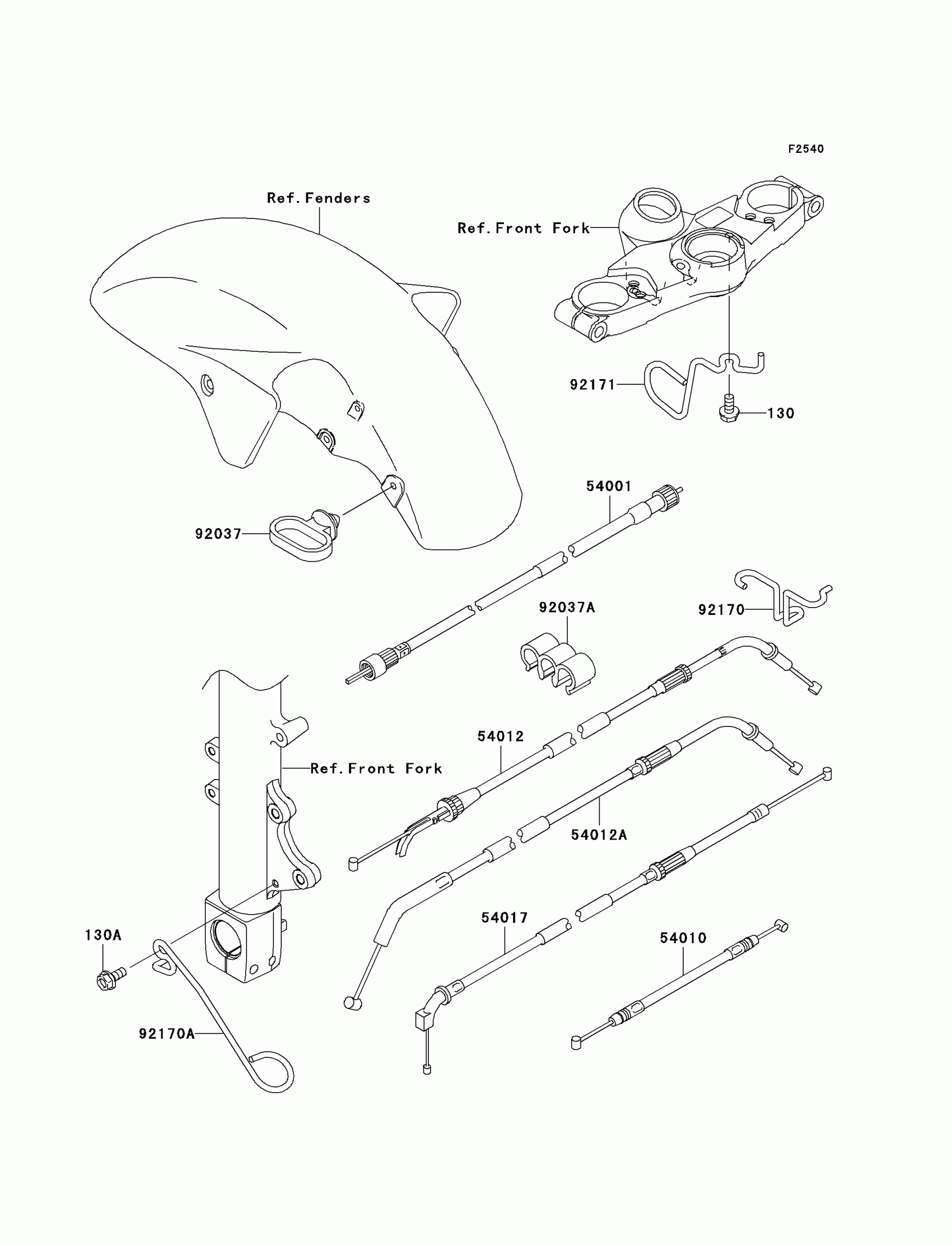

2005 Kawasaki ZZR1200 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130L0612

1
Out of stock

130A

BOLT-FLANGED,6X14

130V0614

1
Out of stock

54001

CABLE-SPEEDMETER

54001-1259

1
Out of stock

54010

CABLE,SEAT LOCK

54010-1128

1

$39.52

In stock

54012

CABLE-THROTTLE,OPENING

54012-1652

1
Out of stock

54012A

CABLE-THROTTLE,CLOSING

54012-1653

1
Out of stock

54017

CABLE-STARTER

54017-1089

1

$37.15

In stock

92037

CLAMP,CABLE

92037-1459

1

$20.18

In stock

92037A

CLAMP,CABLE

92037-1697

1

$7.49

In stock

92170

CLAMP,CABLE

92170-1207

1

$10.24

In stock

92170A

CLAMP,CABLE

92170-1669

1

$18.69

In stock

92171

CLAMP,CABLE

92171-1508

1

$15.56

In stock
← Rear Master Cylinder Front Fork →
