2005 Kawasaki ZZR1200 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

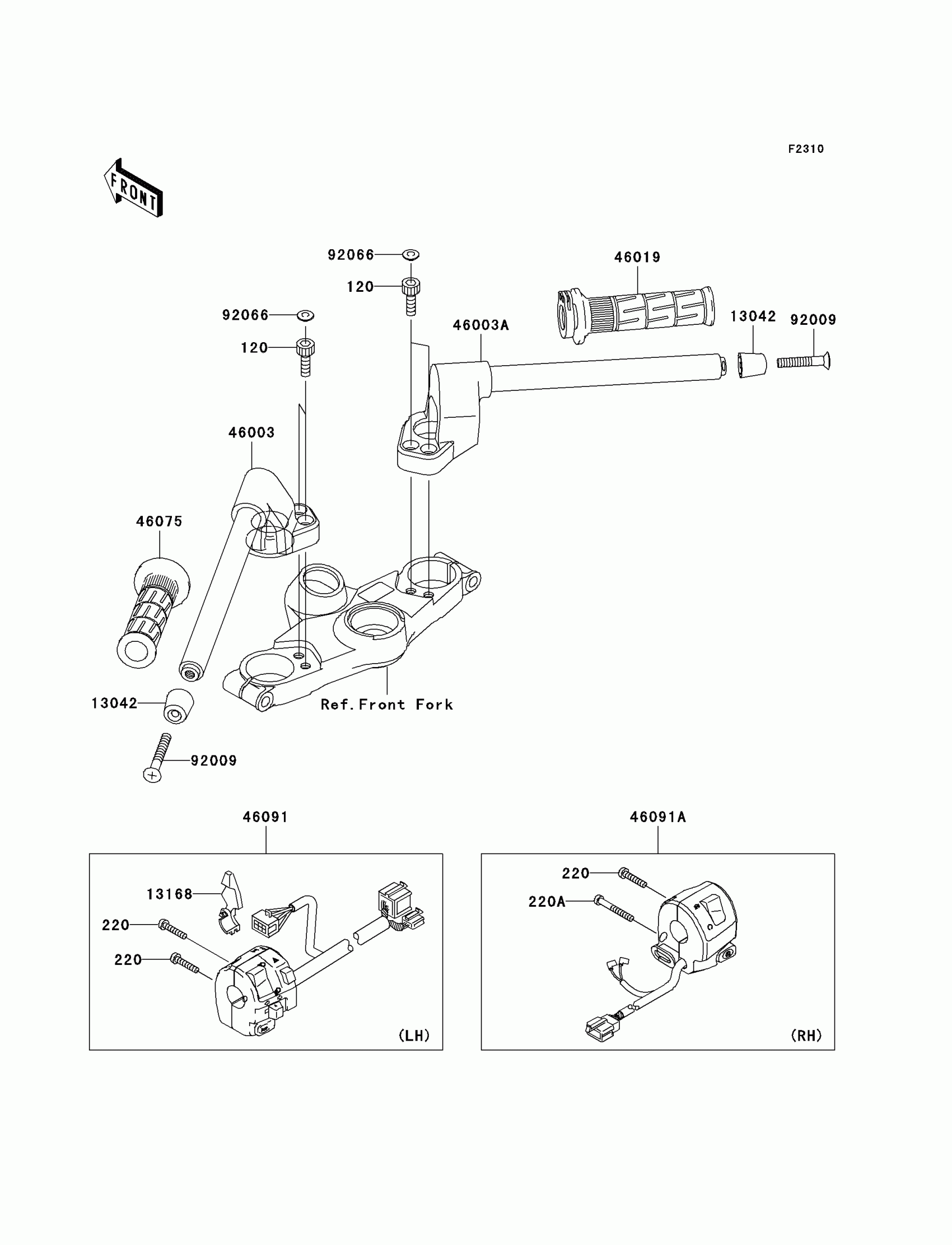

2005 Kawasaki ZZR1200 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X25

120S0825

1
Out of stock

220

1

$2.92

In stock

220A

SCREW-PAN-CROS,5X40

220C0540

1
Out of stock

13042

WEIGHT,HANDLE

13042-1005

1

$30.18

In stock

13168

LEVER,CHOKE

13168-1516

1

$7.77

In stock

46003

HANDLE,LH,P.SILVER

46003-1578-458

1

$226.48

In stock

46003A

HANDLE,RH,P.SILVER

46003-1579-458

1

$216.07

In stock

46019

GRIP-ASSY,THROTTLE

46019-1095

1

$55.22

In stock

46075

GRIP,HANDLE,LH

46075-1144

1

$19.42

In stock

46091

1

$219.53

In stock

46091A

1

$148.76

In stock

92009

SCREW,8X45

92009-1257

1
Out of stock

92066

PLUG

92066-1216

1

$3.69

In stock
