2005 Kawasaki ZZR1200 Stand Diagram

← All diagrams

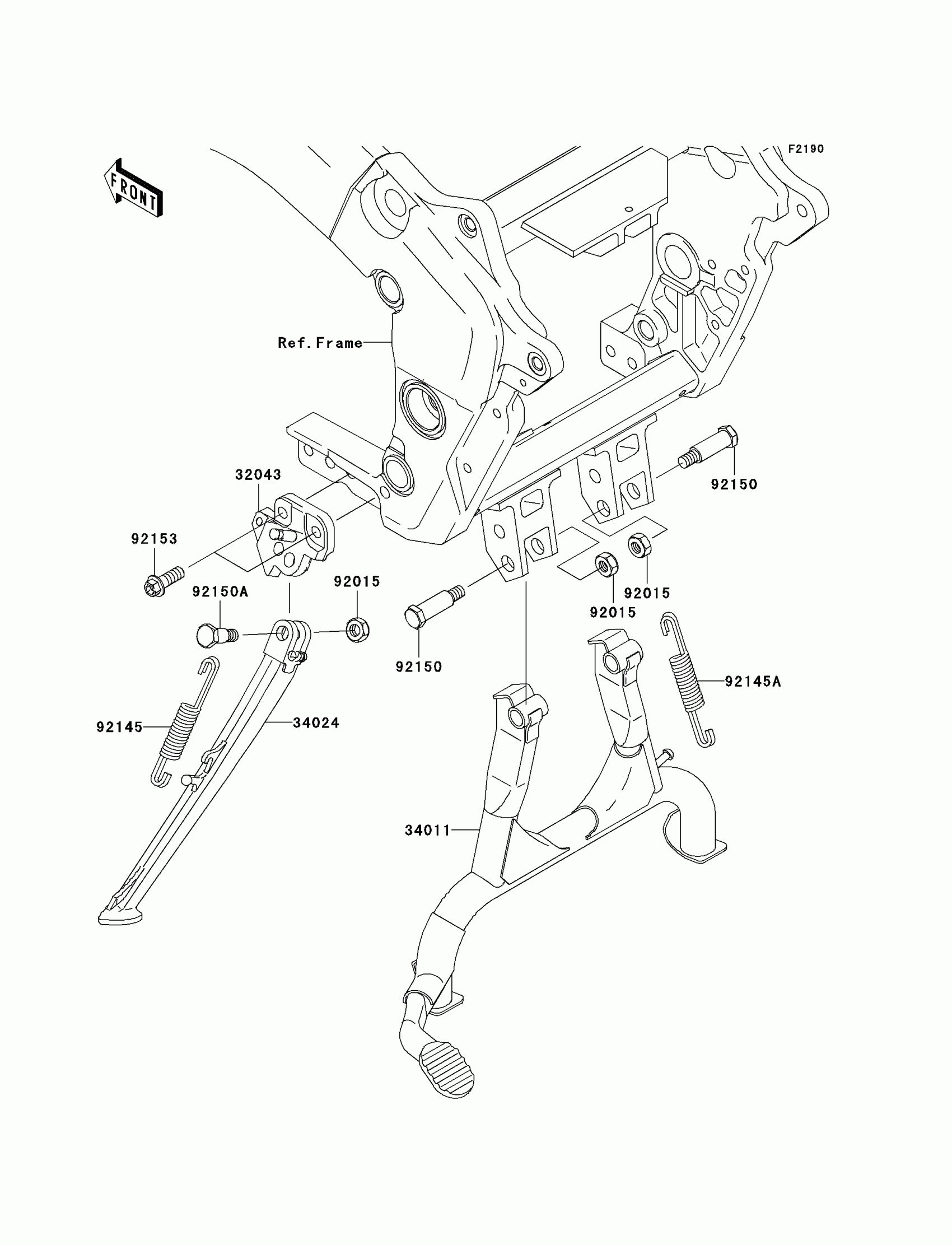

Find the part on the Stand diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

1

$111.45

In stock

34011

STAND-CENTER

34011-1201

1

$168.65

In stock

34024

STAND-SIDE,P.SILVER

34024-1391-458

1

$161.10

In stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92145

SPRING,SIDE STAND

92145-0095

1

$21.34

In stock

92145A

SPRING,CENTER STAND

92145-1550

1

$23.98

In stock

92150

1

$15.02

In stock

92150A

BOLT,SIDE STAND

92150-1941

1
Out of stock

92153

BOLT,FLANGED,10X28

92153-1217

1
Out of stock
