2005 Kawasaki ZZR1200 Cowling Lowers Diagram

← All diagrams

Find the part on the Cowling Lowers diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

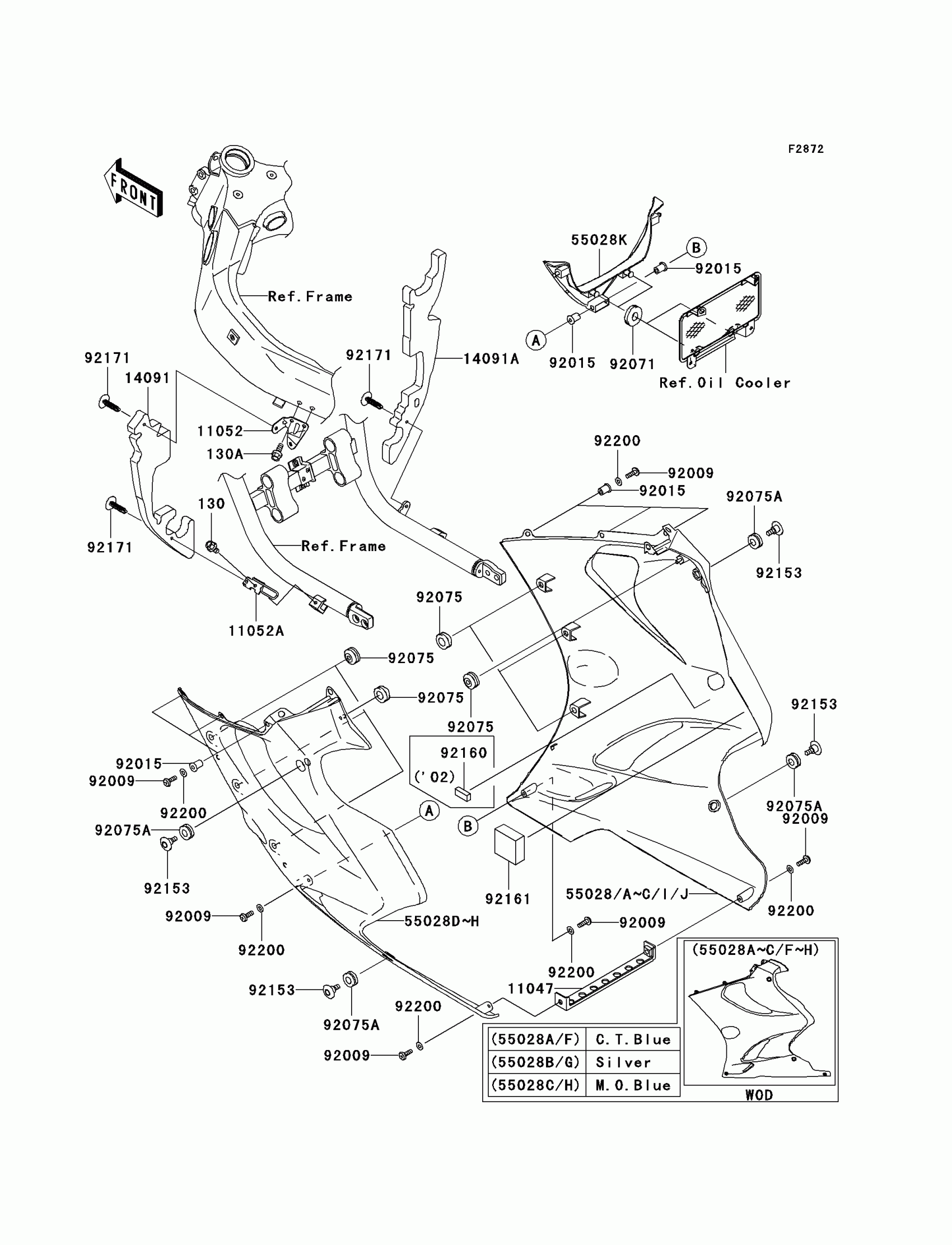

2005 Kawasaki ZZR1200 Cowling Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130J0610

1
Out of stock

130A

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

11047

BRACKET,LWR COWLING

11047-1080

1
Out of stock

11052

BRACKET,LWR COWL COVER,LH,UPP

11052-1872

1
Out of stock

11052A

BRACKET,LWR COWL COVER,LH,LWR

11052-1947

1
Out of stock

14091

COVER,LWR COWLING,LH

14091-1505

1
Out of stock

14091A

COVER,LWR COWLING,RH

14091-1506

1
Out of stock

55028C

COWLING,LWR,RH,M.O.BLUE

55028-0001-726

1
Out of stock

55028H

COWLING,LWR,LH,M.O.BLUE

55028-1448-726

1
Out of stock

55028K

COWLING,FR

55028-1450

1
Out of stock

92009

SCREW,5X16

92009-1909

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92071

GROMMET

92071-1043

1
Out of stock

92075

DAMPER

92075-1067

1
Out of stock

92075A

DAMPER

92075-1634

1
Out of stock

92153

BOLT,SOCKET,6MM

92153-1181

1
Out of stock

92161

DAMPER

92161-1307

1
Out of stock

92171

CLAMP

92171-1280

1
Out of stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock
