2005 Kawasaki ZZR1200 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

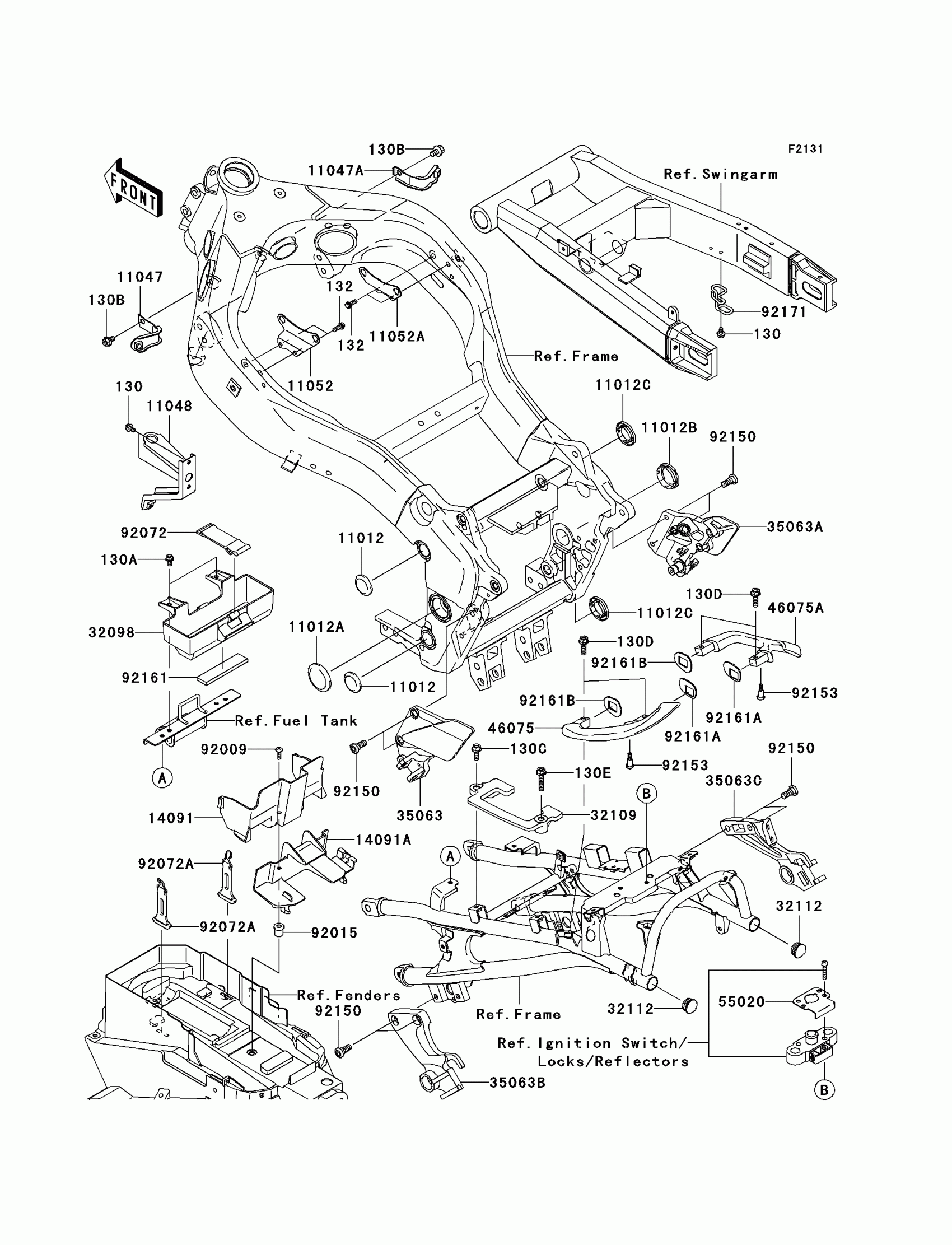

2005 Kawasaki ZZR1200 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130J0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130B

BOLT-FLANGED,8X12

130J0812

1
Out of stock

130C

BOLT-FLANGED,8X20

130J0820

1
Out of stock

130D

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

130E

BOLT-FLANGED,8X35

130J0835

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132J0616

1
Out of stock

11012

CAP

11012-1460

1
Out of stock

11012A

CAP

11012-1657

1
Out of stock

11012B

CAP

11012-1688

1
Out of stock

11012C

CAP,PIVOT

11012-1821

1
Out of stock

11047

BRACKET,RADIATOR,UPP,LH

11047-1931

1
Out of stock

11047A

BRACKET,RADIATOR,UPP,RH

11047-1932

1
Out of stock

11048

BRACKET,OIL COOLER&RADIATOR

11048-1169

1
Out of stock

11052

BRACKET,IGNITION COIL,LH

11052-1695

1
Out of stock

11052A

BRACKET,IGNITION COIL,RH

11052-1696

1
Out of stock

14091

COVER,STORAGE,FR

14091-1459

1
Out of stock

14091A

COVER,STORAGE,RR

14091-1460

1
Out of stock

32098

CASE-TOOL

32098-1141

1
Out of stock

32109

GRIP-FRAME

32109-1306

1
Out of stock

32112

PLUG,22X3

32112-008

1
Out of stock

35063

STAY,FR,LH,P.SILVER

35063-1216-458

1
Out of stock

35063A

STAY,FR,RH,P.SILVER

35063-1217-458

1
Out of stock

35063B

STAY,RR,LH,P.SILVER

35063-1218-458

1
Out of stock

35063C

STAY,RR,RH,P.SILVER

35063-1219-458

1
Out of stock

46075

GRIP,GRAB RAIL,LH,F.BLACK

46075-1206-21

1
Out of stock

46075A

GRIP,GRAB RAIL,RH,F.BLACK

46075-1207-21

1
Out of stock

55020

GUARD,SEAT STRIKER

55020-1498

1
Out of stock

92009

SCREW,5X18

92009-1655

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92072

BAND,TOOL

92072-1176

1
Out of stock

92072A

BAND,U LOCK

92072-1428

1
Out of stock

92150

BOLT,SOCKET,8X20

92150-1839

1
Out of stock

92153

BOLT,SOCKET,6MM

92153-1180

1
Out of stock

92161

DAMPER

92161-1274

1
Out of stock

92161A

DAMPER,GRAB RAIL,RR

92161-1316

1
Out of stock

92161B

DAMPER,GRAB RAIL,FR

92161-1317

1
Out of stock

92171

CLAMP,HOSE

92171-1532

1
Out of stock
