2005 Kawasaki ZZR1200 Cowling Diagram

← All diagrams

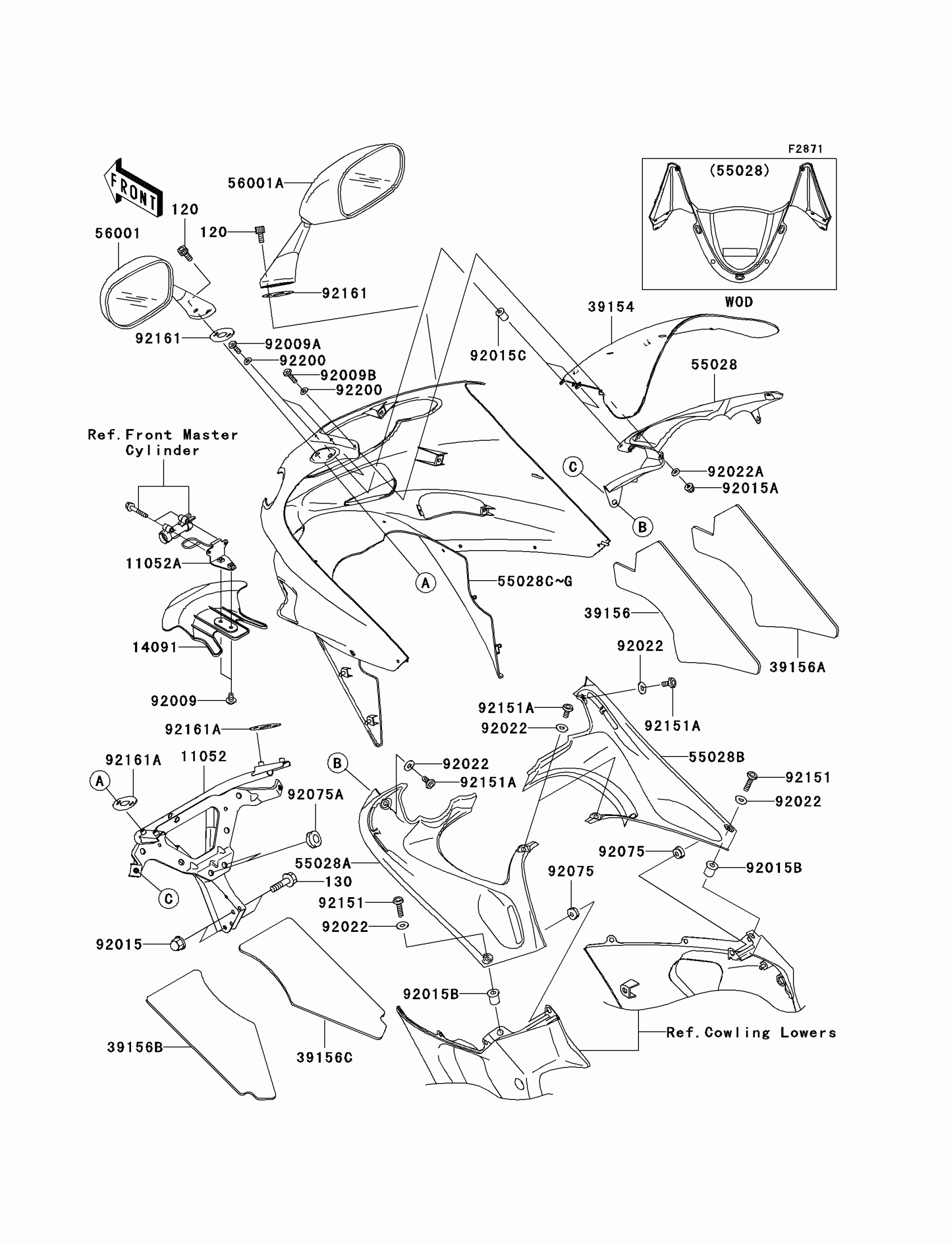

Find the part on the Cowling diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120P0616

1
Out of stock

130

BOLT-FLANGED,8X30

130J0830

1
Out of stock

11052

1

$607.64

In stock

11052A

1

$15.56

In stock

14091

COVER,UNDER BRACKET

14091-1504

1

$19.92

In stock

39154

WINDSHIELD

39154-1156

1

$214.48

In stock

39156

PAD,UPP COWLING,LH

39156-1712

1

$36.87

In stock

39156A

PAD,UPP COWLING,RH

39156-1713

1

$36.87

In stock

39156B

1

$23.15

In stock

39156C

1

$23.15

In stock

55028

1

$164.19

In stock

55028A

1

$144.99

In stock

55028B

1

$149.16

In stock

55028G

COWLING,UPP,M.O.BLUE

55028-1447-726

1

$907.84

In stock

56001

MIRROR-ASSY,LH

56001-1543

1

$81.11

In stock

56001A

MIRROR-ASSY,RH

56001-1544

1

$81.11

In stock

92009

SCREW,6X10

92009-1661

1
Out of stock

92009A

SCREW,5X16

92009-1909

1
Out of stock

92009B

SCREW,5X20

92009-1934

1
Out of stock

92015

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92015A

NUT,LOCK,FLANGE CAP,5MM

92015-1263

1
Out of stock

92015B

NUT

92015-1700

1

$6.82

In stock

92015C

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92022

WASHER,6.5X16X1

92022-1143

1

$3.12

In stock

92022A

1

$3.12

In stock

92075

DAMPER,6X16X7

92075-1011

1

$5.84

In stock

92075A

DAMPER

92075-1067

1

$3.72

In stock

92151

BOLT,SOCKET,6X25

92151-1611

1

$1.95

In stock

92151A

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92161

DAMPER,MIRROR

92161-1234

1

$3.85

In stock

92161A

DAMPER,MIRROR

92161-1298

1

$7.97

In stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock
