2003 Kawasaki ZRX1200R Swingarm Diagram

← All diagrams

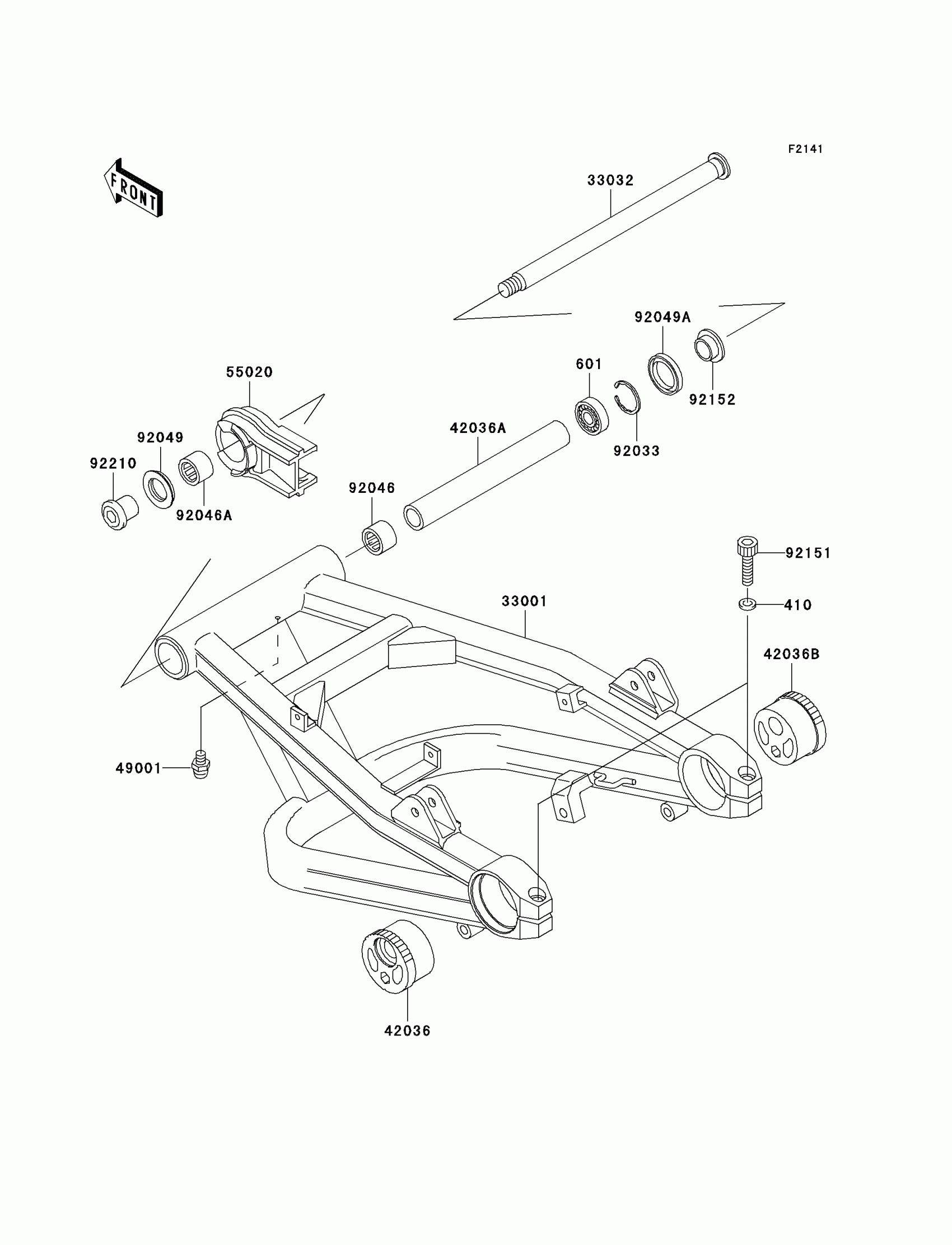

Find the part on the Swingarm diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki ZRX1200R Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

W-PLAIN-S

410E1000

1

$0.63

In stock

601

1

$9.42

In stock

33001

ARM-COMP-SWING

33001-1603

1

$1,243.92

In stock

33032

SHAFT-SWING ARM

33032-1182

1

$110.48

In stock

42036

1

$65.05

In stock

42036A

1

$58.48

In stock

42036B

1

$71.67

In stock

49001

NIPPLE-GREASE

49001-1051

1

$2.44

In stock

55020

GUARD,CHAIN

55020-1742

1

$37.60

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92046

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92046A

BEARING-NEEDLE,BM2824

92046-1202

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92151

BOLT,SOCKET,10X40

92151-1899

1

$4.42

In stock

92152

1

$7.13

In stock

92210

NUT,PIVOT,16MM

92210-1077

1
Out of stock
