2003 Kawasaki ZRX1200R Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

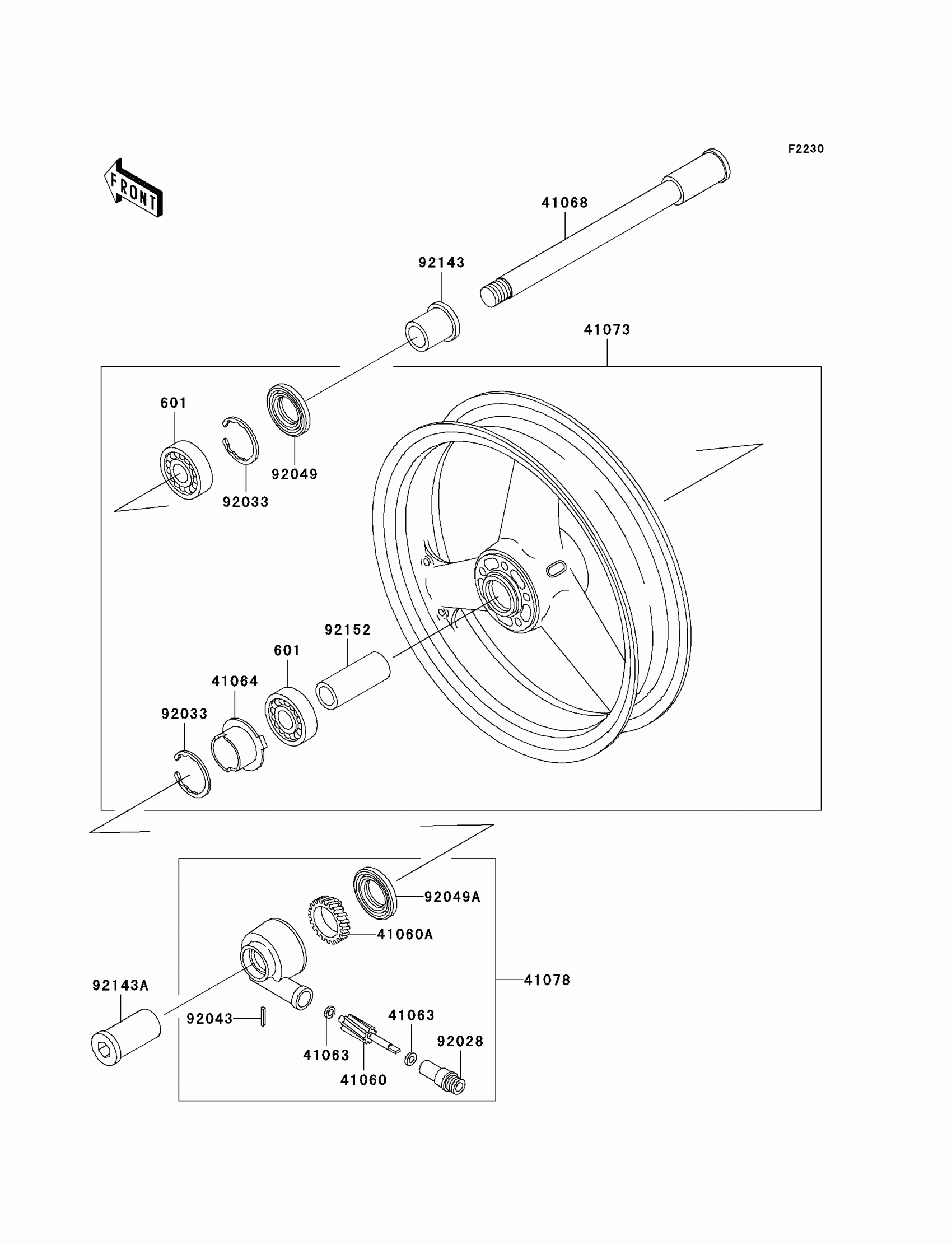

2003 Kawasaki ZRX1200R Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

1

$24.49

In stock

41060

GEAR-METER SCREW,9T

41060-1140

1

$20.37

In stock

41060A

1

$28.67

In stock

41063

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

41064

1

$12.58

In stock

41068

AXLE,FR

41068-1327

1

$89.47

In stock

41073

WHEEL-ASSY,FR,BLACK

41073-1618-R2

1

$1,149.10

In stock

41073A

WHEEL-ASSY,FR,SILVER

41073-1618-V5

1

$1,145.67

In stock

41078

1

$121.46

In stock

92028

1

$17.08

In stock

92033

RING-SNAP,47MM

92033-1042

1

$3.36

In stock

92043

PIN,SPRING,3X18

92043-1454

1

$3.92

In stock

92049

SEAL-OIL,BJN 32 47 5

92049-1377

1
Out of stock

92049A

SEAL-OIL,BJN-C2 35 52 5

92049-1378

1
Out of stock

92143

COLLAR,FR HUB,L=94

92143-1476

1

$34.30

In stock

92143A

1

$37.15

In stock

92143B

1

$45.80

In stock
