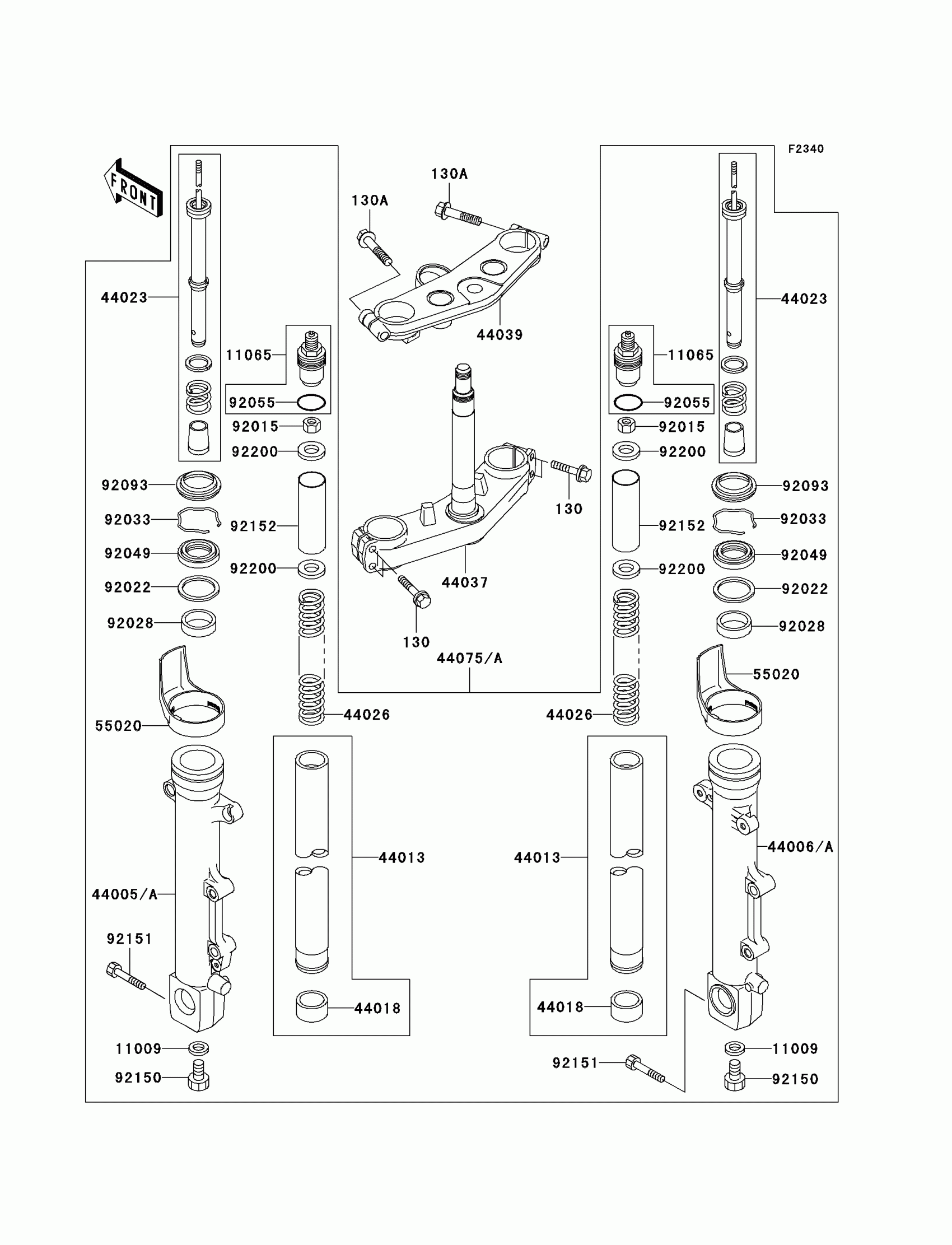

2003 Kawasaki ZRX1200R Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki ZRX1200R Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X40

130J0840

1
Out of stock

130A

BOLT-FLANGED

130J1045

1

$7.44

In stock

11009

1

$4.12

In stock

11065

CAP

11065-1120

1

$194.41

In stock

44005

1

$568.95

In stock

44006

1

$568.95

In stock

44013

PIPE-FORK INNER

44013-1492

1

$472.56

In stock

44018

1

$33.06

In stock

44023

CYLINDER-SET-FORK

44023-1155

1

$585.80

In stock

44026

SPRING-FRONT FORK

44026-1729

1

$114.11

In stock

44037

HOLDER-FORK UNDER

44037-1419

1

$683.55

In stock

44039

HOLDER-FORK UPPER

44039-1318

1

$358.86

In stock

44075

DAMPER-SET-FORK

44075-0002

1
Out of stock

55020

GUARD,FORK

55020-1691

1

$9.53

In stock

92015

NUT

92015-1795

1

$4.85

In stock

92022

WASHER

92022-1299

1

$6.82

In stock

92028

BUSHING

92028-1784

1

$21.39

In stock

92033

RING-SNAP

92033-1077

1

$3.94

In stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1496

1
Out of stock

92055

RING-O

92055-1123

1

$4.93

In stock

92093

1

$14.61

In stock

92150

BOLT,12X22

92150-1398

1

$8.95

In stock

92151

BOLT,SOCKET,8X45

92151-1991

1

$7.58

In stock

92152

COLLAR,FORK,L=115

92152-1361

1

$11.25

In stock

92200

WASHER

92200-1349

1
Out of stock
