2003 Kawasaki ZRX1200R Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

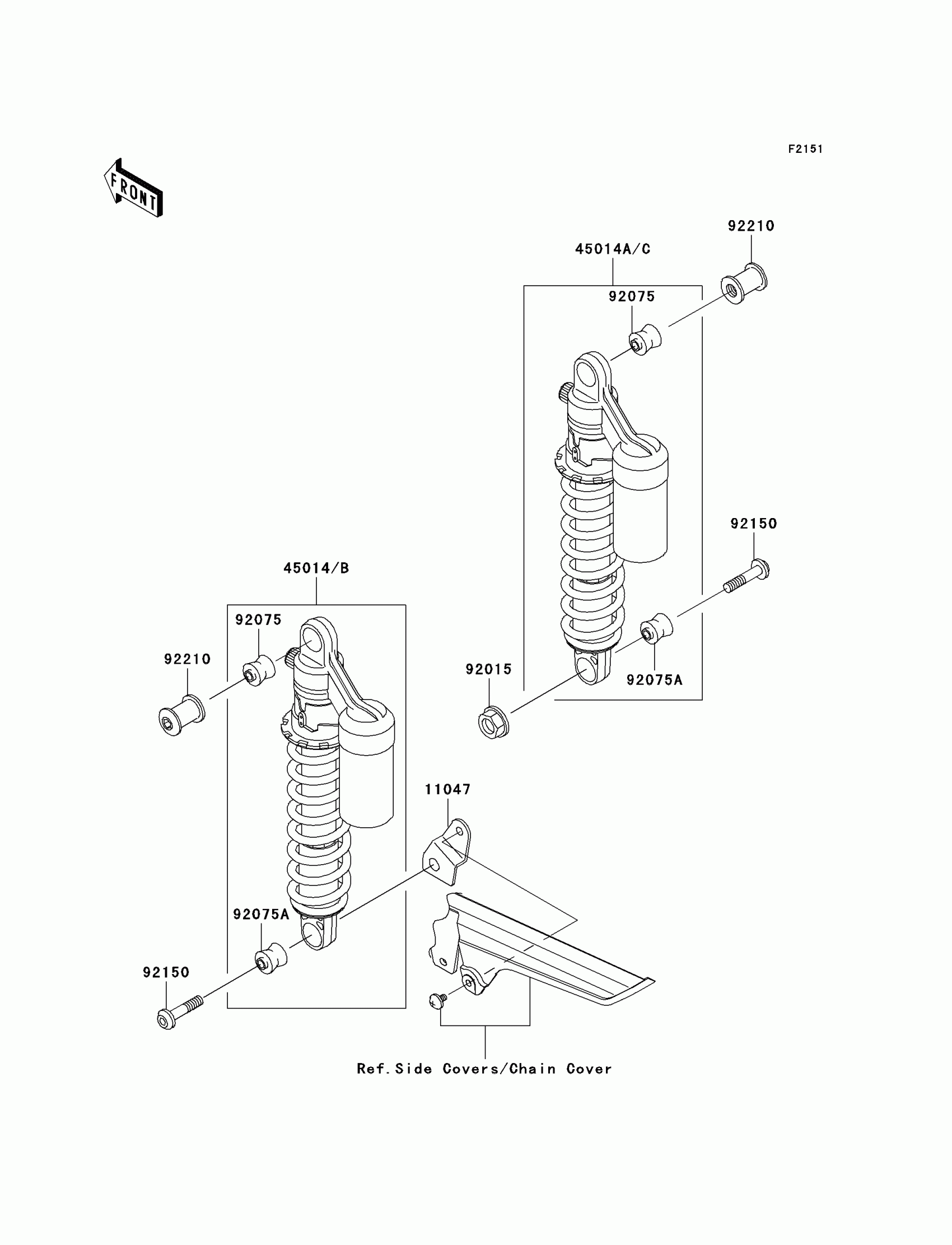

2003 Kawasaki ZRX1200R Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,CHAIN CASE

11047-1239

1
Out of stock

45014

SHOCKABSORBER,LH,BARREL

45014-0001-2H

1
Out of stock

45014A

SHOCKABSORBER,RH,BARREL

45014-0002-2H

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1335

1
Out of stock

92075

DAMPER,SHOCKABSORBER

92075-1141

1
Out of stock

92075A

DAMPER,SHOCKABSORBER

92075-1586

1
Out of stock

92150

BOLT,SOCKET,10X45

92150-1736

1
Out of stock

92210

NUT,HOOK

92210-1274

1
Out of stock
