2003 Kawasaki ZRX1200R Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

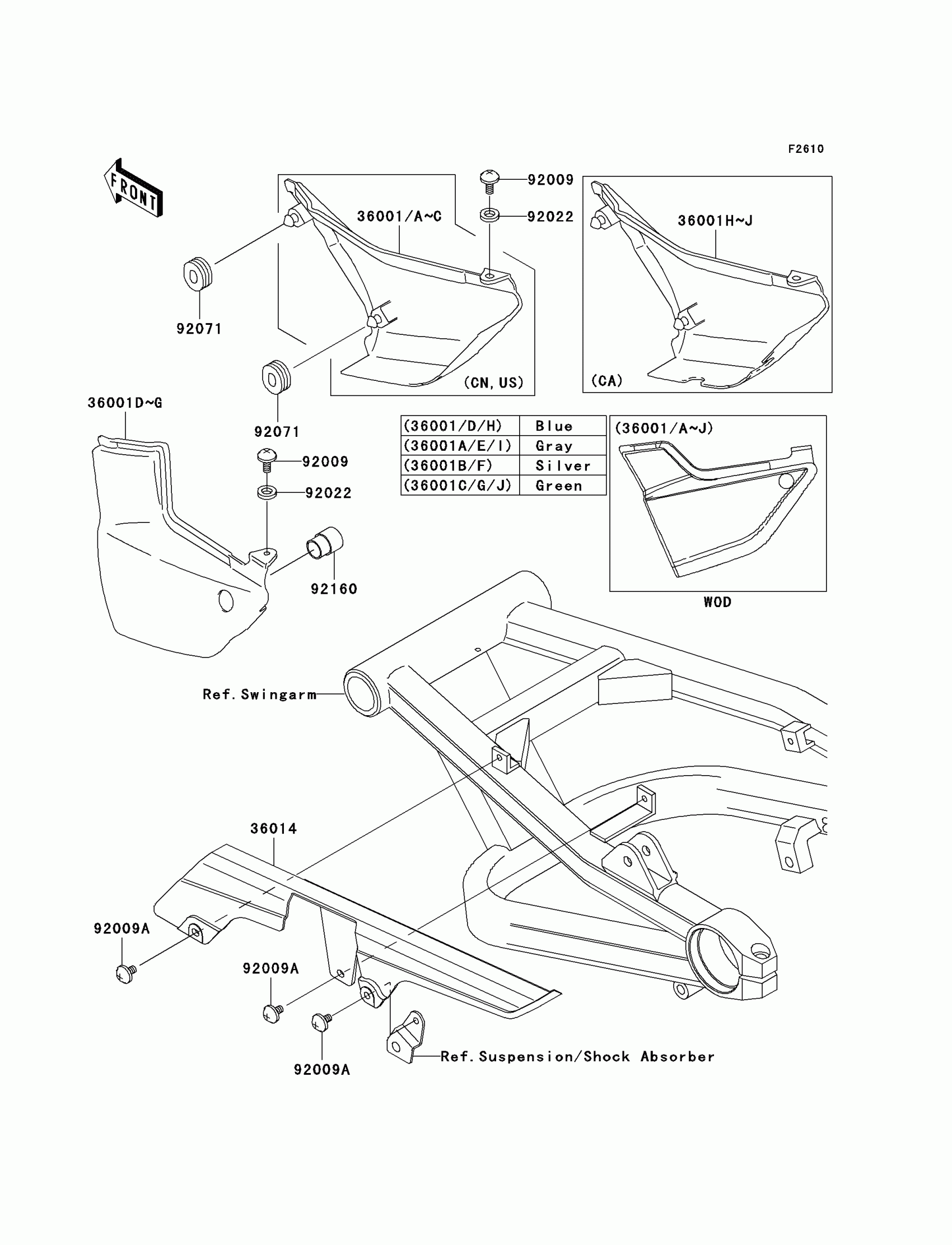

2003 Kawasaki ZRX1200R Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001G

COVER-SIDE,LH,C.L.GREEN

36001-1597-8N

1
Out of stock

36014

CASE-CHAIN

36014-1244

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92009A

SCREW,6X10

92009-1402

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1654

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92160

DAMPER

92160-1871

1
Out of stock

36001

COVER-SIDE,RH,C.L.BLUE

36001-1575-E1

1
Out of stock

36001B

COVER-SIDE,RH,G.SILVER

36001-1575-474

1
Out of stock

36001C

COVER-SIDE,RH,C.L.GREEN

36001-1575-8N

1
Out of stock

36001D

COVER-SIDE,LH,C.L.BLUE

36001-1597-E1

1
Out of stock

36001F

COVER-SIDE,LH,G.SILVER

36001-1597-474

1
Out of stock

36001H

COVER-SIDE,RH,C.L.BLUE

36001-1648-E1

1
Out of stock

36001J

COVER-SIDE,RH,C.L.GREEN

36001-1648-8N

1
Out of stock
