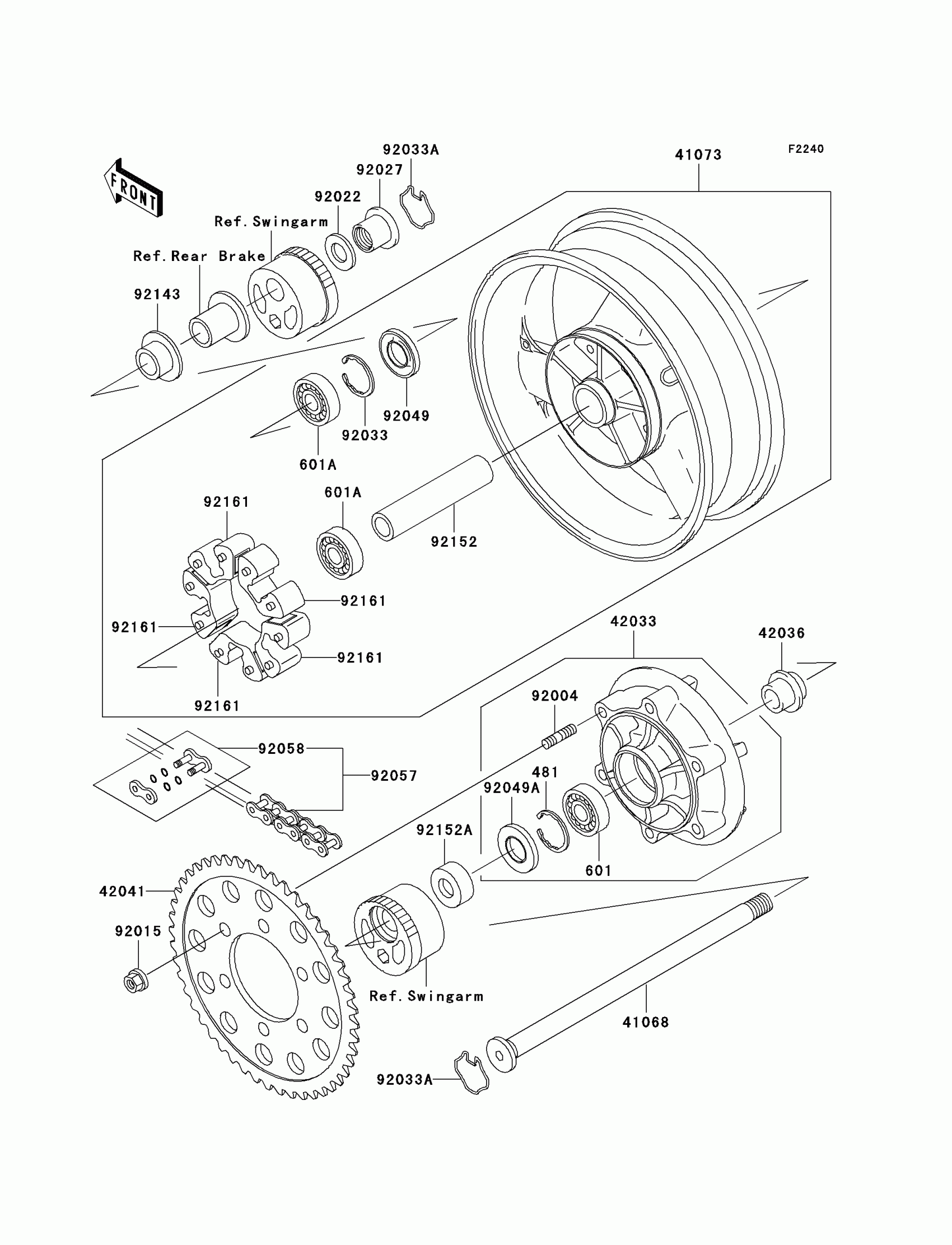

Kawasaki ZRX1200R Rear Wheel/Chain Diagram

#

Description
Price

481

CIRCLIP

481J5500

Unavailable

601

BEARING-BALL,#6006G

601B6006G

$25.77

601A

BEARING-BALL,#6304UUC3

601B6304UU

$30.87

41068

AXLE,RR

41068-1429

$136.23

41073

WHEEL-ASSY,RR,BLACK

41073-1669-R2

$1,101.02

41073A

WHEEL-ASSY,RR,SILVER

41073-1669-V5

$1,154.05

42033

COUPLING-ASSY,RR HUB

42033-1203

$309.78

42036

SLEEVE,RR HUB COUPLING,L=22

42036-1366

$21.36

42041

SPROCKET-HUB,42T

42041-1387

$120.12

92004

STUD,10X19

92004-1275

Unavailable

92015

NUT,FLANGED,10MM

92015-1335

$1.85

92022

WASHER,23X32X2.3

92022-1618

$5.42

92027

COLLAR,RR AXLE,L=28

92027-1810

$32.61

92033

RING-SNAP,52MM

92033-1043

$6.15

92033A

RING-SNAP,RR AXLE

92033-1156

$3.41

92049

SEAL-OIL,28X52X5

92049-1061

$16.11

92049A

SEAL-OIL,PJN40556

92049-1263

$16.81

92057

CHAIN,DRIVE,DID50ZV2X110L

92057-1532

$426.62

92058

JOINT-CHAIN,DRIVE

92058-1091

$14.36

92143

COLLAR,RR AXLE,RH,L=18

92143-1915

$31.03

92152

COLLAR,RR AXLE,LH,L=19

92152-1280

Unavailable

92152A

COLLAR,RR HUB,L=146

92152-1319

$35.61

92161

DAMPER,SHOCK,RR HUB

92161-1069

$30.92
