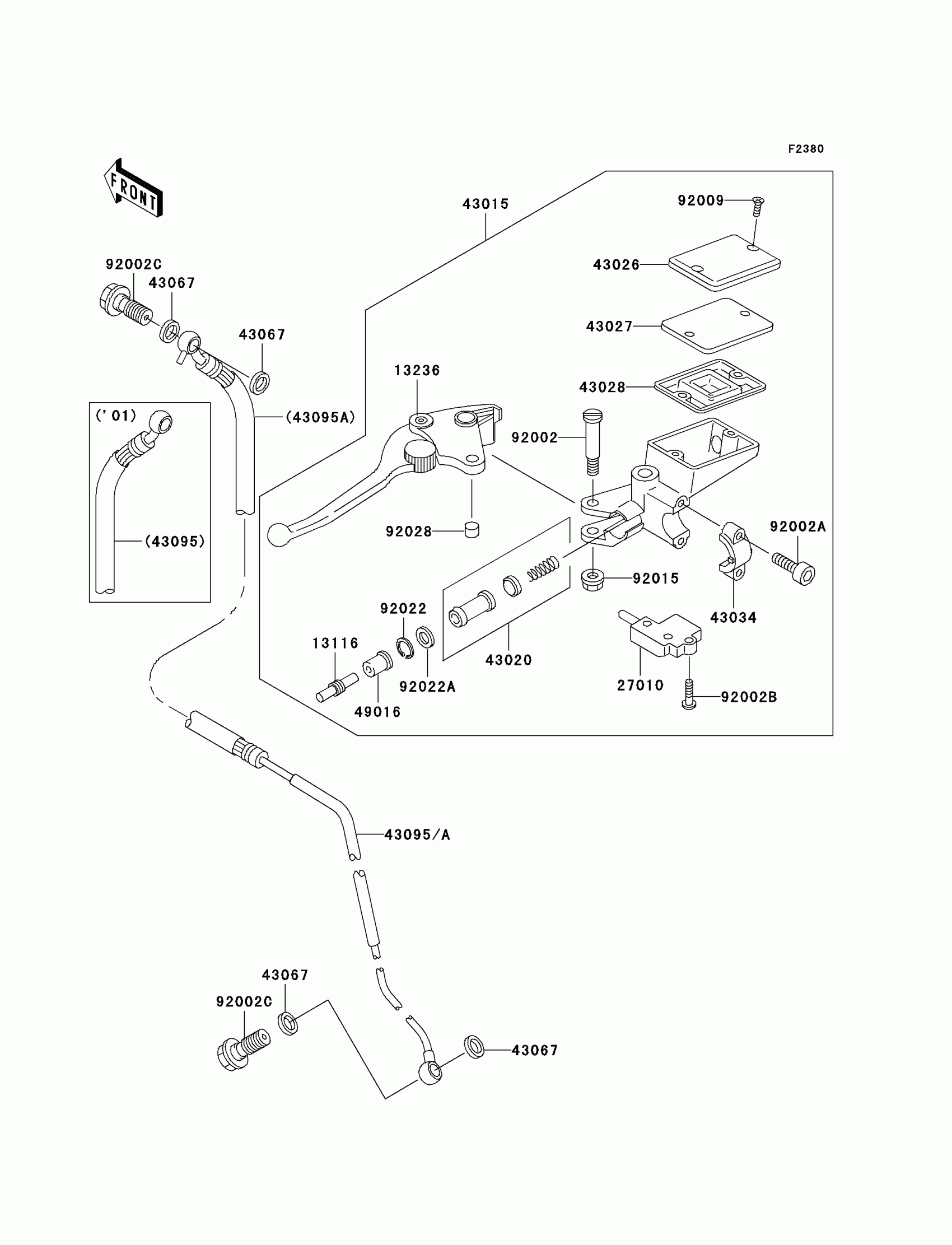

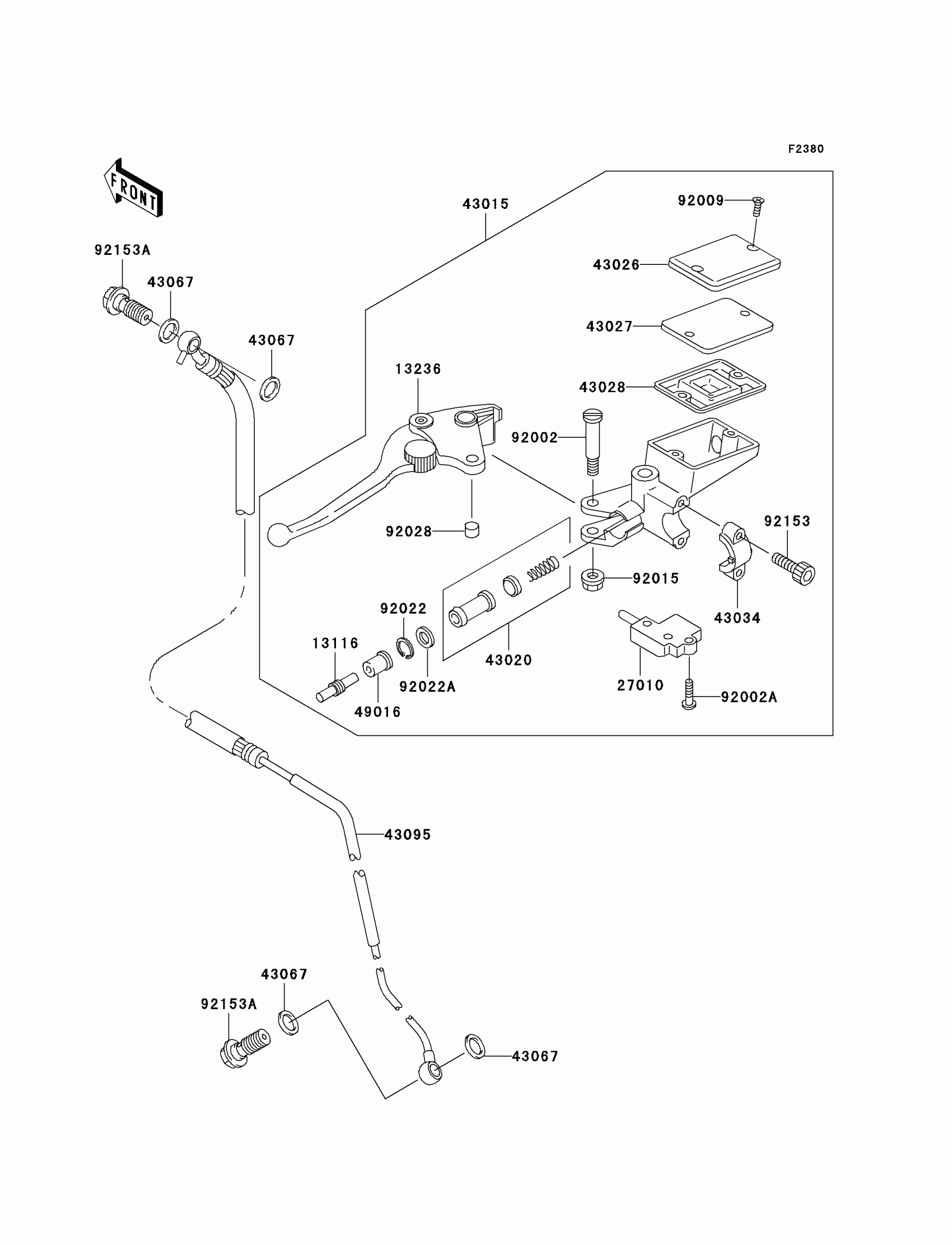

Kawasaki ZRX1200R Clutch Master Cylinder Diagram

Description

Price

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

$33.39

13236

LEVER-COMP,CLUTCH

13236-1237

$55.96

27010

SWITCH,CLUTCH

27010-1406

$32.18

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-1492

Unavailable

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$58.51

43026

CAP-BRAKE

43026-1076

$43.44

43027

PLATE-DIAPHRAGM

43027-1055

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1054

$36.55

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43095A

HOSE-BRAKE,CLUTCH

43095-1232

$200.72

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.54

92002B

SCREW,4X16

92002-1325

$7.83

92002C

BOLT,OIL,L=23

92002-1888

$4.15

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92022

CIRCLIP

92022-1605

$3.81

92022A

WASHER,PISTON

92022-1606

$3.57

92028

BUSHING,MASTER CYLINDER

92028-1310

$11.20
