2003 Kawasaki ZRX1200R Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

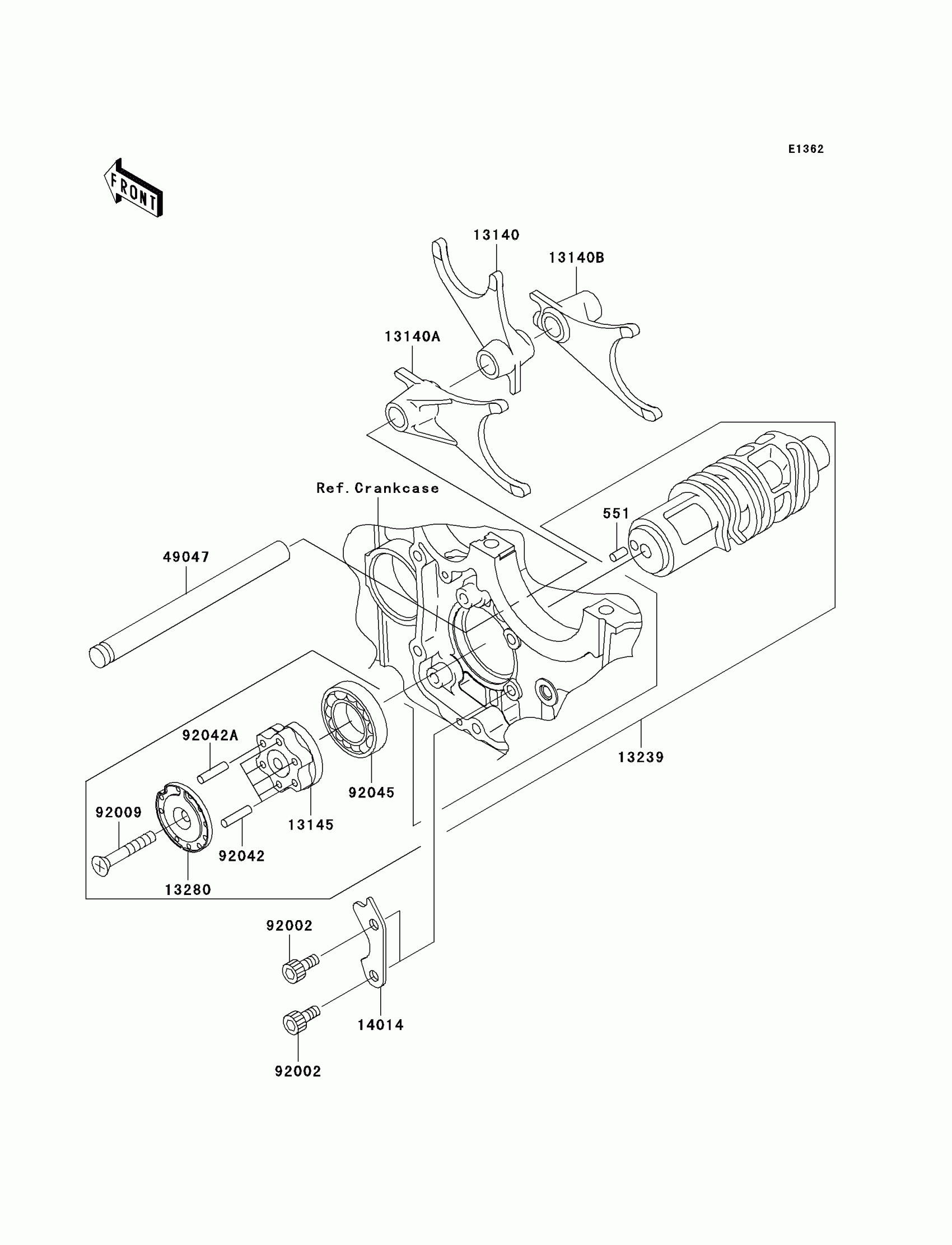

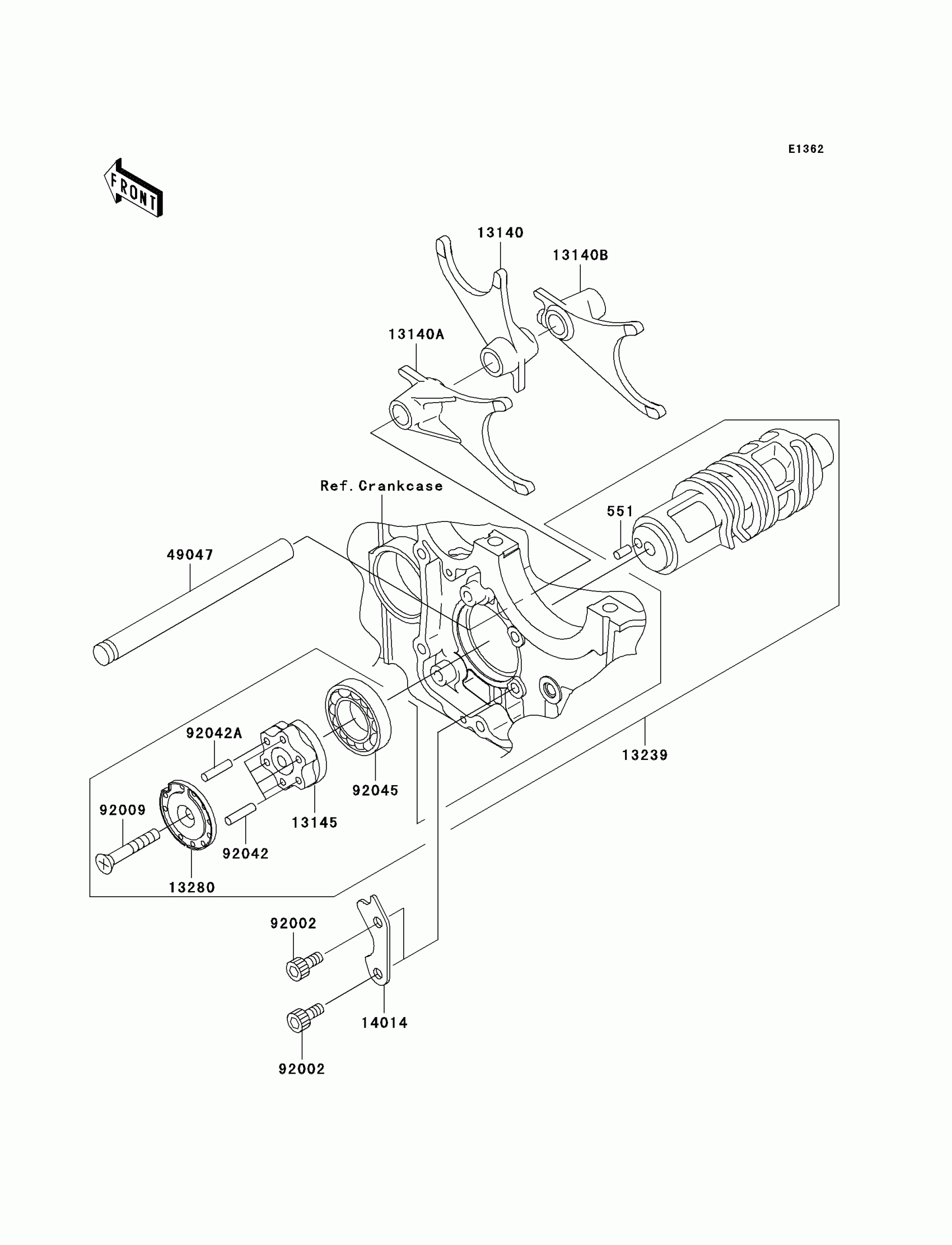

2003 Kawasaki ZRX1200R Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

551

PIN-DOWEL,4X8

551A0408

1
Out of stock

13140

FORK-SHIFT

13140-1196

1
Out of stock

13140A

FORK-SHIFT

13140-1197

1
Out of stock

13140B

FORK-SHIFT

13140-1198

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1091

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1212

1
Out of stock

13280

HOLDER

13280-1230

1
Out of stock

14014

PLATE-POSITION,CHANGE DRUM

14014-1059

1
Out of stock

49047

ROD-SHIFT

49047-1055

1
Out of stock

92002

BOLT,SOCKET,6X16

92002-1778

1
Out of stock

92009

SCREW,6X45

92009-1599

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92042A

PIN,DOWEL,4X17.8

92042-020

1
Out of stock

92045

BEARING-BALL,16005

92045-1045

1
Out of stock
