2005 Kawasaki ZRX1200R Fuel Evaporative System Diagram

← All diagrams

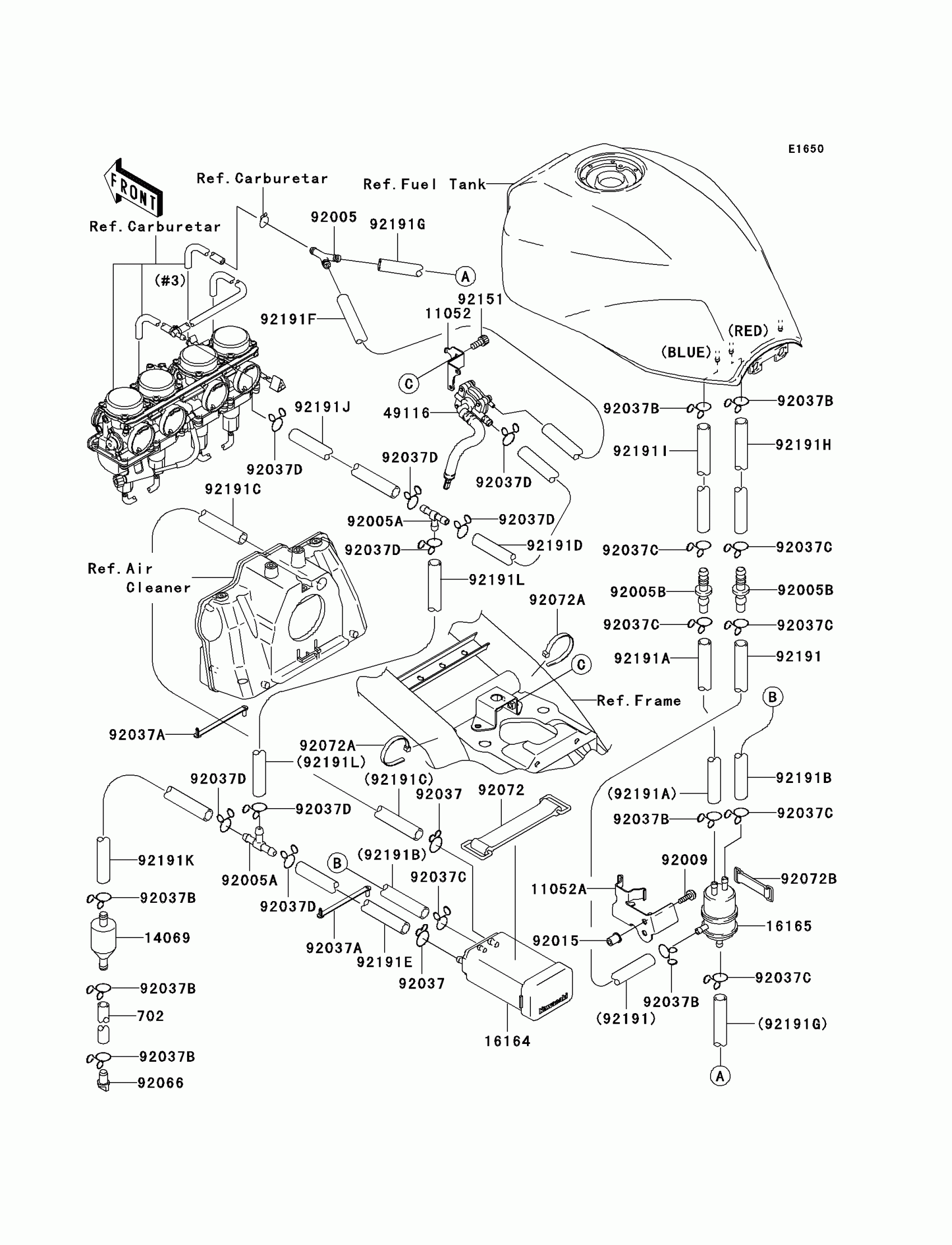

Find the part on the Fuel Evaporative System diagram for your 2005 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZRX1200R Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11052

BRACKET,FUEL TANK DAMPER

11052-1145

1
Out of stock

11052A

BRACKET

11052-1146

1
Out of stock

14069

BREATHER

14069-1051

1
Out of stock

16164

CANISTER

16164-1070

1
Out of stock

16165

SEPARATOR

16165-1070

1
Out of stock

49116

VALVE-ASSY

49116-1187

1
Out of stock

92005

FITTING,TUBE

92005-1034

1
Out of stock

92005A

FITTING,T-TYPE

92005-1119

1
Out of stock

92005B

FITTING

92005-1206

1
Out of stock

92009

SCREW,6X14

92009-1662

1
Out of stock

92015

NUT

92015-1700

1
Out of stock

92037

CLAMP-HOSE

92037-1104

1
Out of stock

92037A

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92037B

CLAMP,TUBE

92037-147

1
Out of stock

92037C

CLAMP

92037-1712

1
Out of stock

92037D

CLAMP,TUBE

92037-1972

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1
Out of stock

92072

BAND,L=100

92072-071

1
Out of stock

92072A

BAND,L=250

92072-1237

1
Out of stock

92072B

BAND,L=50

92072-1419

1
Out of stock

92151

BOLT,SOCKET,5X10

92151-1212

1
Out of stock

92191

TUBE,SEPARATOR-TANK,RED

92191-1581

1
Out of stock

702

TUBE-RUBBER,7X10X60

702A0760

1
Out of stock

92191A

TUBE,TANK-SEPARATOR,BULE

92191-1582

1
Out of stock

92191B

TUBE,SEPARATOR-CANISTER,BULE

92191-1583

1
Out of stock

92191C

TUBE,CANISTER-CLEANER,GREEN

92191-1584

1
Out of stock

92191D

TUBE,FITTING-VALVE,YELLOW

92191-1585

1
Out of stock

92191E

TUBE,FITTING-CANISTER,YELLOW

92191-1586

1
Out of stock

92191F

TUBE,CARBURETOR-VALVE,WHITE

92191-1587

1
Out of stock

92191G

TUBE,SEPARATOR-FITTING,WHITE

92191-1588

1
Out of stock

92191H

TUBE,RED

92191-1649

1
Out of stock

92191I

TUBE,BULE

92191-1650

1
Out of stock

92191J

TUBE,7X12X165,YELLOW

92191-1651

1
Out of stock

92191K

TUBE,7X11X430

92191-1652

1
Out of stock

92191L

TUBE,7X12X235,YELLOW

92191-1670

1
Out of stock
