2005 Kawasaki ZRX1200R Carburetor Diagram

← All diagrams

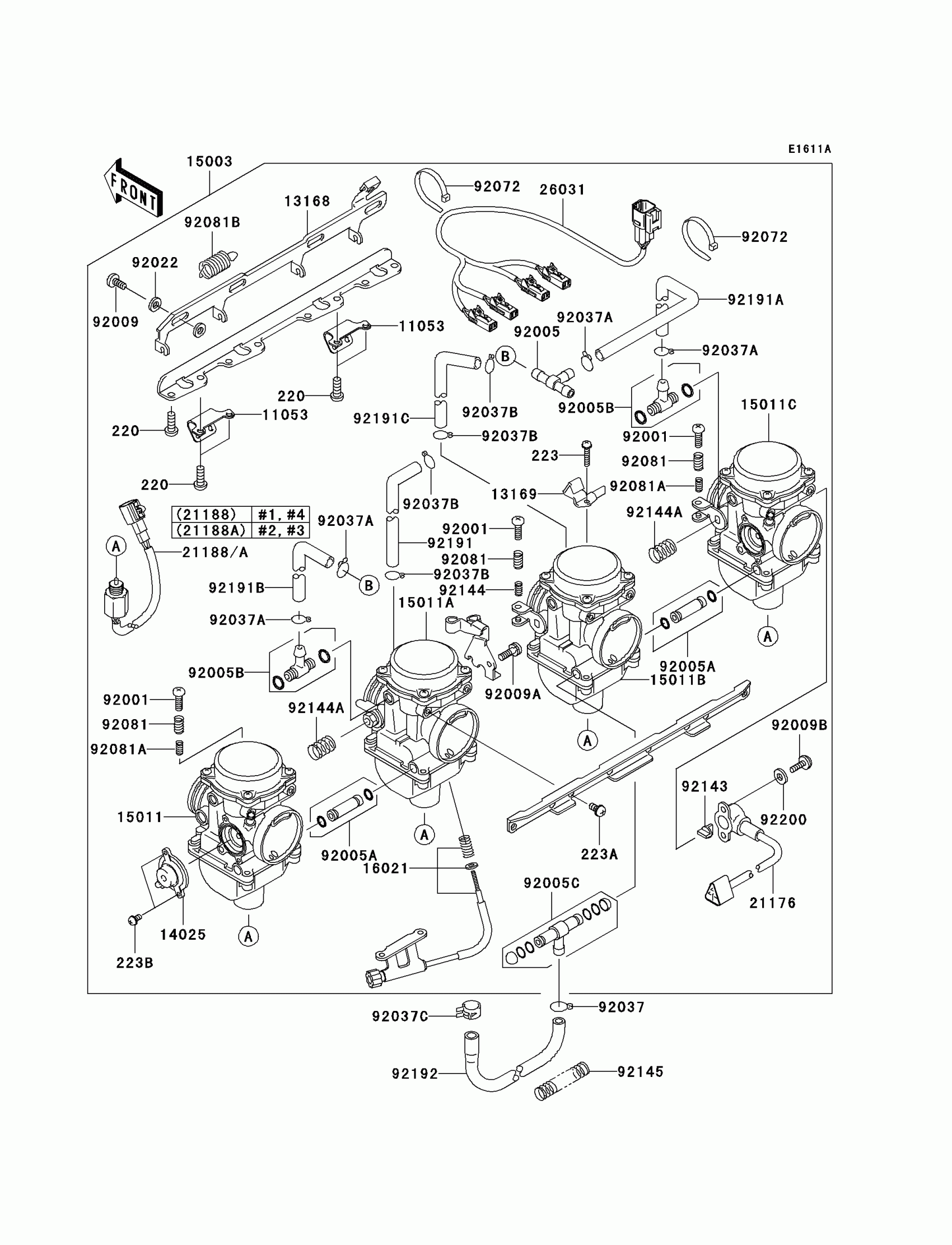

Find the part on the Carburetor diagram for your 2005 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZRX1200R Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET

11053-1406

1

$18.95

In stock

13168

LEVER,STARTER

13168-1245

1

$125.91

In stock

13169

PLATE,STARTER CABLE

13169-1871

1
Out of stock

14025

COVER,AIR CUT VALVE

14025-1903

1

$59.59

In stock

15003

CARBURETOR-ASSY

15003-0037

1

$2,250.01

In stock

15011

1

$820.45

In stock

15011A

CARBURETOR,LH,INSIDE

15011-0063

1
Out of stock

15011B

CARBURETOR,RH,INSIDE

15011-0064

1
Out of stock

15011C

CARBURETOR,RH,OUTSIDE

15011-0065

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1172

1

$99.87

In stock

21176

SENSOR,THROTTLE

21176-1073

1

$501.95

In stock

21188

1

$180.43

In stock

21188A

1

$159.60

In stock

26031

HARNESS

26031-0206

1

$182.30

In stock

92001

1

$15.88

In stock

92005

FITTING,T-TYPE

92005-1119

1
Out of stock

92005A

FITTING

92005-1310

1
Out of stock

92005B

FITTING

92005-1314

1
Out of stock

92005C

FITTING,FUEL

92005-1392

1
Out of stock

92009

SCREW

92009-1262

1
Out of stock

92009A

SCREW,5X10

92009-1365

1
Out of stock

92009B

SCREW

92009-1781

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

223

SCREW-PAN-WS-CROS,4X20

223C0420

1
Out of stock

223A

1

$3.28

In stock

92022

1

$3.82

In stock

92037

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92037A

CLAMP,TUBE

92037-1185

1

$4.87

In stock

92037B

CLAMP,TUBE

92037-1201

1

$3.65

In stock

92037C

CLAMP

92037-2082

1

$1.27

In stock

92072

BAND,SUB-HARNESS

92072-0012

1

$3.97

In stock

92081

SPRING

92081-1620

1

$3.94

In stock

92081A

1

$4.12

In stock

92081B

1

$22.88

In stock

92143

COLLAR

92143-1907

1

$9.22

In stock

92144

SPRING

92144-1451

1

$9.29

In stock

92144A

SPRING,THROTTLE ADJUST CNT

92144-1986

1
Out of stock

92145

SPRING,FUEL TUBE

92145-0227

1

$7.34

In stock

92191

TUBE

92191-1017

1

$9.04

In stock

92191A

TUBE,7X11X187

92191-1680

1
Out of stock

92191B

TUBE,7X11X54

92191-1681

1
Out of stock

92191C

TUBE,4.5X8X110

92191-1682

1
Out of stock

92192

TUBE,FUEL

92192-0148

1
Out of stock

92200

WASHER

92200-1369

1
Out of stock

223B

1

$1.17

In stock
