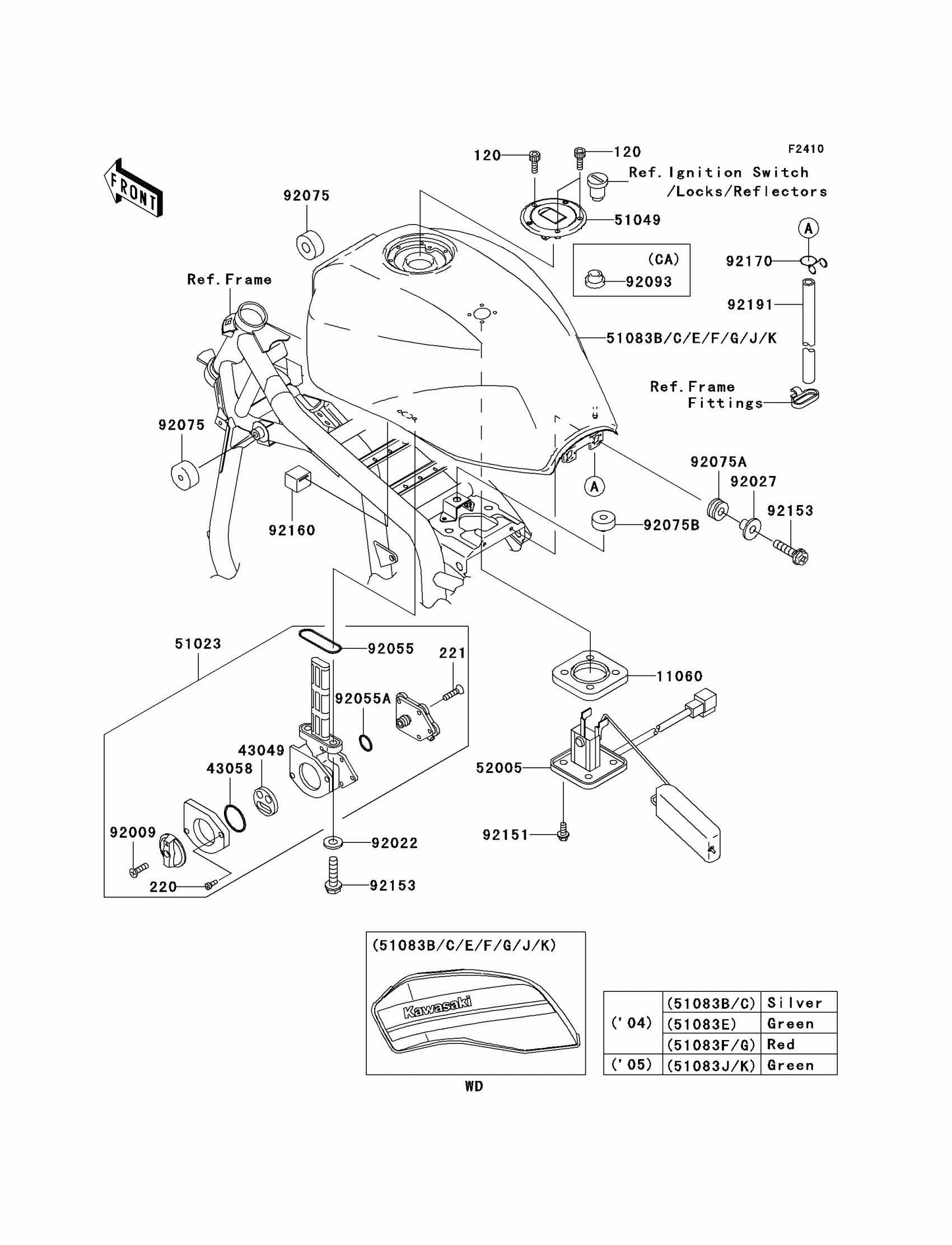

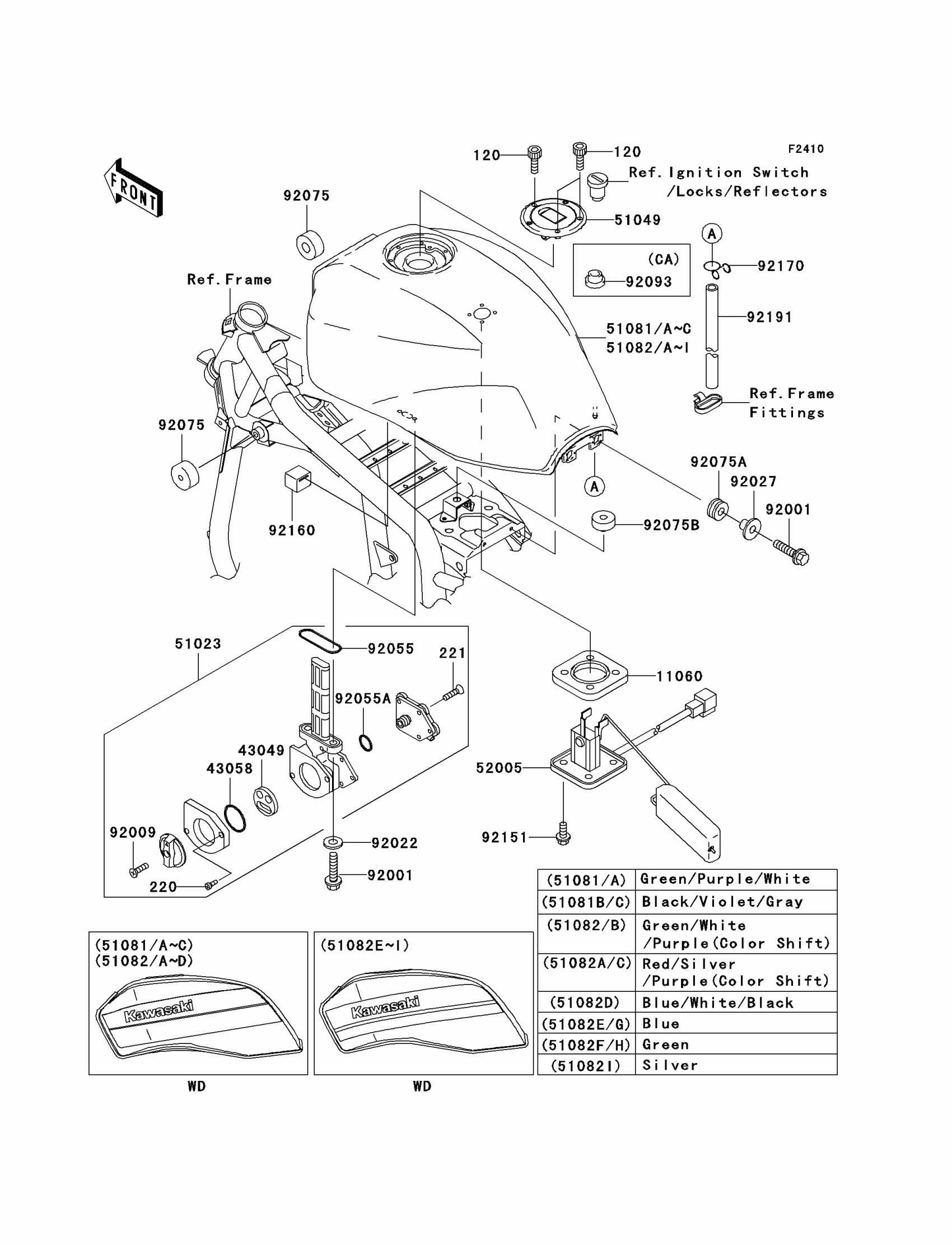

Find the part on the Fuel Tank diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki ZRX1200R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,FUEL GAUGE

11060-1952

1
Out of stock

43049

PACKING,TAP VALVE

43049-1075

1
Out of stock

43058

RING,TAP LEVER

43058-1083

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1260

1
Out of stock

51049

CAP-TANK,FUEL

51049-1127

1
Out of stock

120

BOLT-SOCKET,5X16

120S0516

1
Out of stock

220

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

221

SCREW-CSK-CROS,4X14

221B0414

1
Out of stock

52005

GAUGE,FUEL

52005-1145

1
Out of stock

92001

BOLT,6X25

92001-1524

1
Out of stock

92009

SCREW,4X12

92009-1742

1
Out of stock

92022

WASHER-PLAIN

92022-183

1
Out of stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92055

RING-O,FUEL TAP PACKING

92055-1112

1
Out of stock

92055A

RING-O

92055-1649

1
Out of stock

92075

DAMPER,FUEL TANK

92075-101

1
Out of stock

92075A

DAMPER,10X24X12

92075-1690

1
Out of stock

92075B

DAMPER

92075-1737

1
Out of stock

92151

BOLT,5X12

92151-1599

1
Out of stock

92160

DAMPER

92160-1626

1
Out of stock

92170

CLAMP,TUBE

92170-1834

1
Out of stock

92191

TUBE,7X12X600

92191-1138

1
Out of stock

51082E

TANK-COMP-FUEL,C.L.BLUE

51082-5391-E1

1
Out of stock

51082F

TANK-COMP-FUEL,C.L.GREEN

51082-5392-8N

1
Out of stock

51082G

TANK-COMP-FUEL,C.L.BLUE

51082-5425-E1

1
Out of stock

51082H

TANK-COMP-FUEL,C.L.GREEN

51082-5426-8N

1
Out of stock

51082I

TANK-COMP-FUEL,G.SILVER

51082-5461-474

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock
