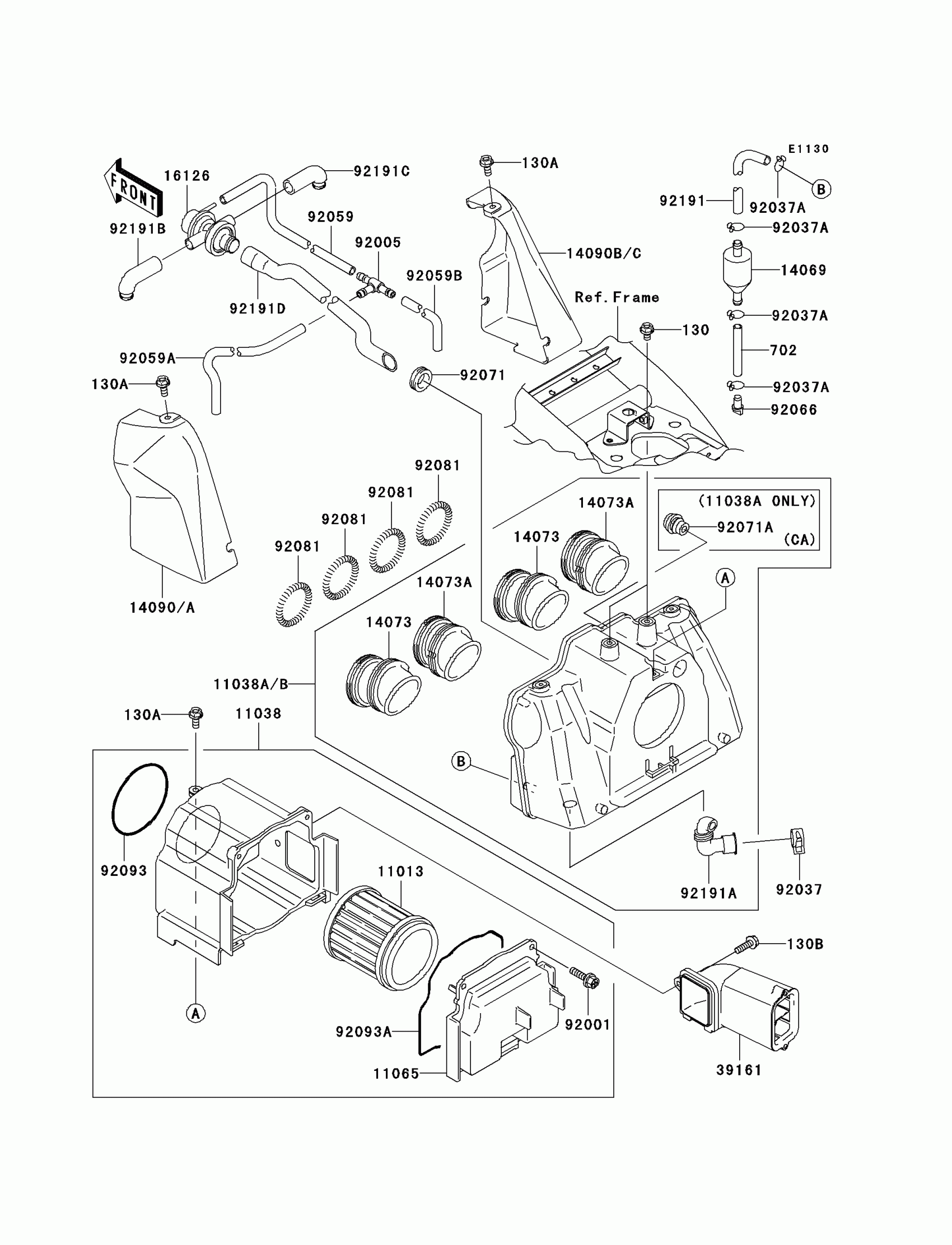

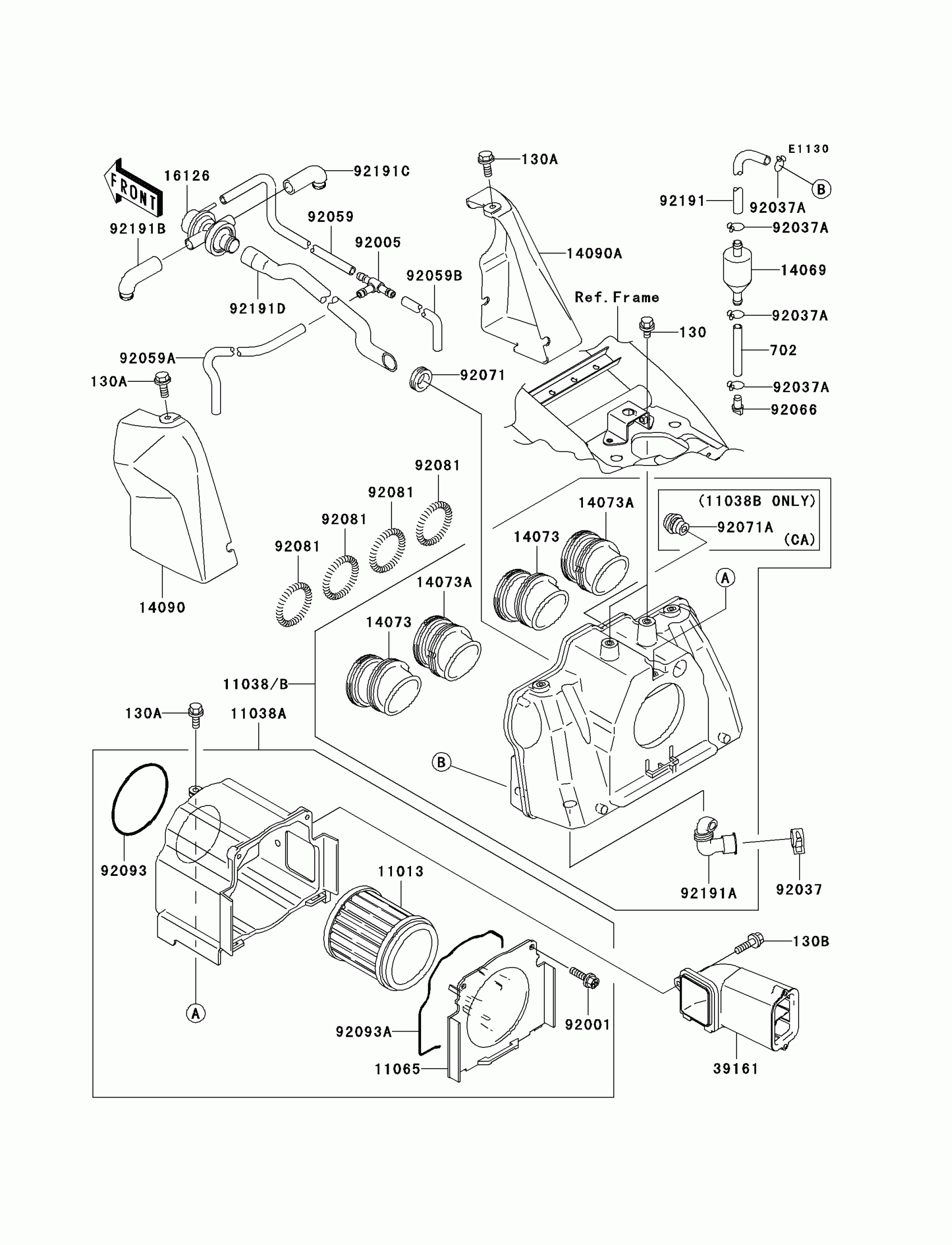

Kawasaki ZRX1200R Air Cleaner Diagram

#

Description
Price

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130B

BOLT-FLANGED

130J0620

Unavailable

702

TUBE-RUBBER,7X10X60

702A0760

$3.25

11013

ELEMENT-AIR FILTER

11013-1235

$55.16

11038A

CASE-ASSY-AIR FILTER,RR

11038-1129

$246.38

11065

CAP,AIR FILTER

11065-1188

$20.19

14069

BREATHER

14069-1051

$7.76

14073

DUCT,#1

14073-1685

$29.67

14073A

DUCT,#2

14073-1686

$29.67

14090

COVER,AIR CLEANER,LH,F.C.GRAY

14090-1789-3L

$119.99

14090A

COVER,AIR CLEANER,RH,F.C.GRAY

14090-1790-3L

$112.57

16126

VALVE,AIR SWITCH

16126-1401

$223.99

39161

SILENCER-ASSY-INTAKE

39161-1081

$110.70

92001

BOLT,6X20

92001-1091

$2.99

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92037A

CLAMP,TUBE

92037-147

$5.61

92059

TUBE,4X9X220

92059-1040

$9.85

92059A

TUBE,4X9X230

92059-1068

$14.40

92059B

TUBE,4X9X80

92059-1365

$12.97

92066

PLUG,DRAIN

92066-1211

$6.48

92071

GROMMET,AIR FILTER

92071-1042

$5.55

92081

SPRING,COIL,BLACK

92081-1457

$8.67

92093

SEAL,AIR FILTER

92093-1338

$10.85

92093A

SEAL,AIR FILTER

92093-1432

$4.63

92191

TUBE

92191-1006

$10.39

92191A

TUBE,DRAIN TUBE

92191-1124

$17.15

92191B

TUBE,AIR SWITCH LH

92191-1125

$19.53

92191C

TUBE,AIR SWITCH RH

92191-1126

$19.53

92191D

TUBE,AIR SWITCH-AIR FILTER

92191-1127

$34.92

11038

CASE-ASSY-AIR FILTER,FR

11038-1120

$224.62

11038B

CASE-ASSY-AIR FILTER,FR

11038-1130

$242.49

92071A

GROMMET,AIR FILTER

92071-1112

Unavailable
