2000 Kawasaki ZRX1100 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

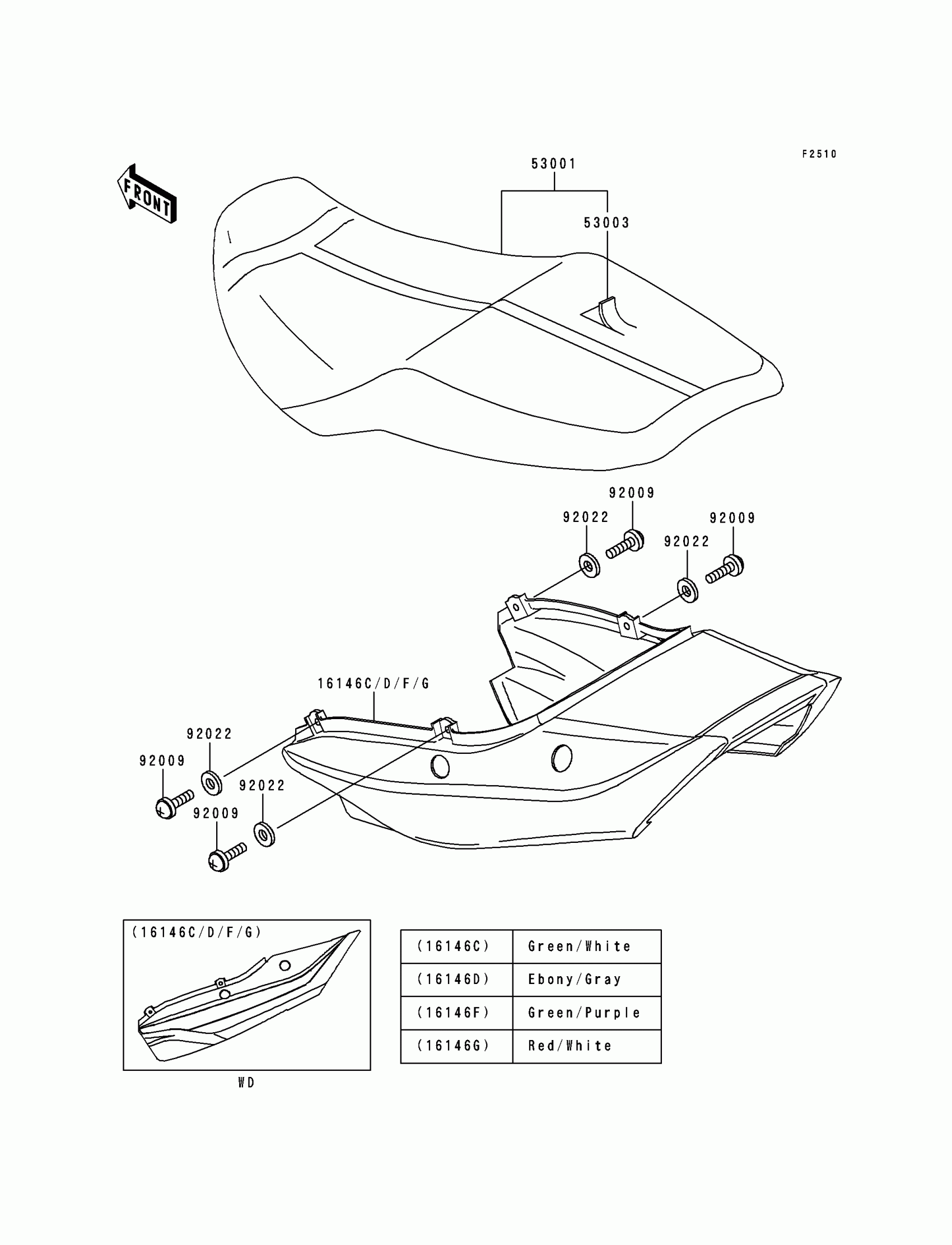

2000 Kawasaki ZRX1100 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16146F

COVER-ASSY,SEAT,GREEN/PURPLE

16146-5062-U6

1
Out of stock

53001

SEAT-ASSY,DUAL,BLACK

53001-1831-MA

1
Out of stock

53003

LEATHER,SEAT,BLACK

53003-1381-MA

1

$277.83

In stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1654

1

$2.92

In stock

16146D

COVER-ASSY,SEAT,EBONY/GRAY

16146-5060-FG

1
Out of stock

16146G

COVER-ASSY,SEAT,RED/WHITE

16146-5064-P9

1
Out of stock
