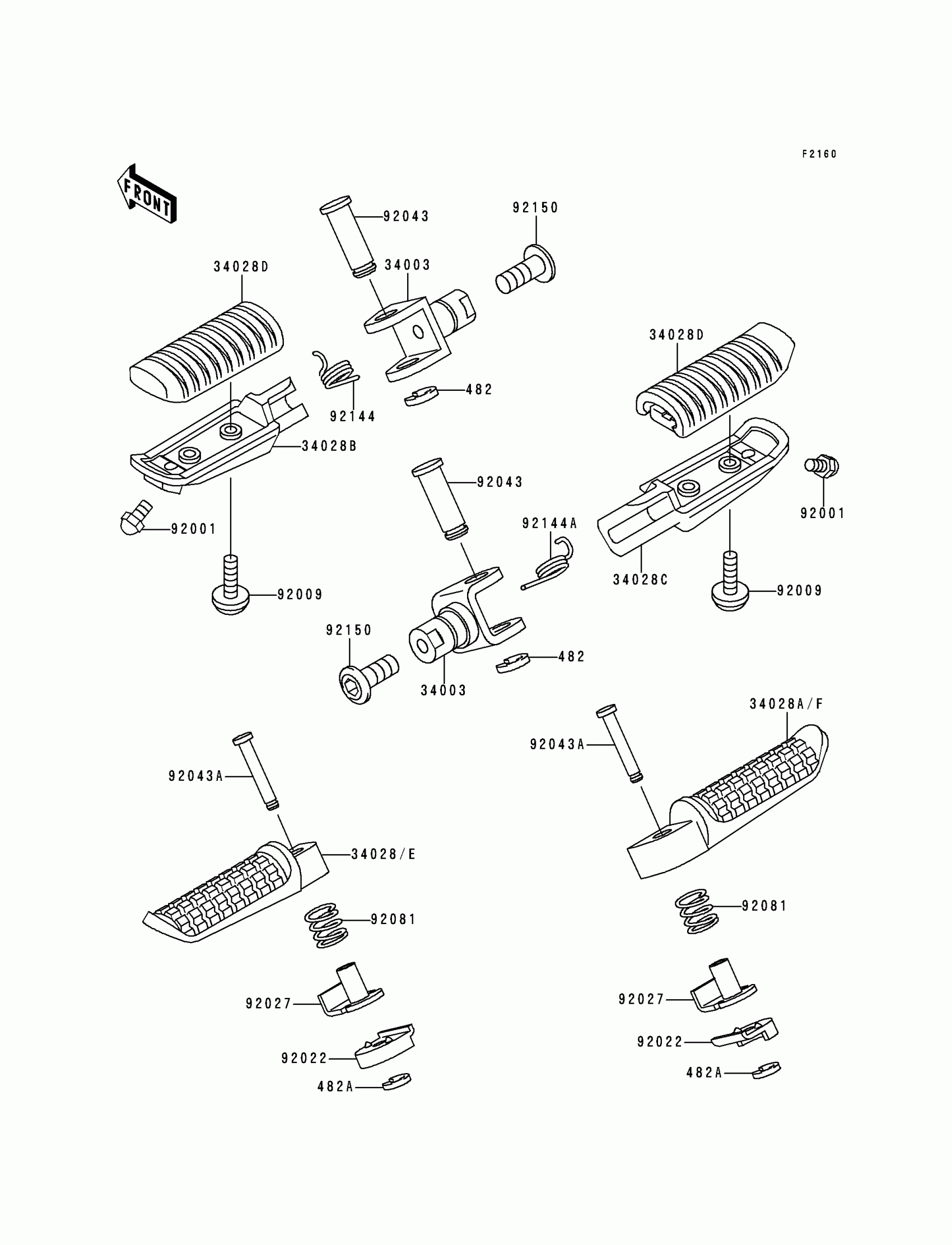

Kawasaki ZRX1100 Footrests Diagram

Description

Price

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.66

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.04

34003

HOLDER-STEP

34003-1327

$37.75

34028B

STEP,FR,LH

34028-1428

$46.40

34028C

STEP,FR,RH

34028-1429

$46.40

34028D

STEP,RUBBER

34028-1430

$18.36

34028E

STEP,RR,LH

34028-1488

$59.59

34028F

STEP,RR,RH

34028-1489

$67.74

92001

BOLT,BANK SENSOR

92001-1905

$7.22

92009

SCREW,5X14

92009-1404

$3.01

92022

WASHER,STEP,RR

92022-1507

$4.61

92027

COLLAR,STEP

92027-1732

$10.73

92043

PIN,12X37

92043-1144

Unavailable

92043A

PIN,6X38.5

92043-1328

$4.61

92081

SPRING,STEP,RR

92081-1612

$3.81

92144

SPRING,STEP RETURN

92144-1567

$4.88

92144A

SPRING,STEP RETURN

92144-1568

$4.88

92150

BOLT,SOCKET,10X25

92150-1268

$4.67
