2000 Kawasaki ZRX1100 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

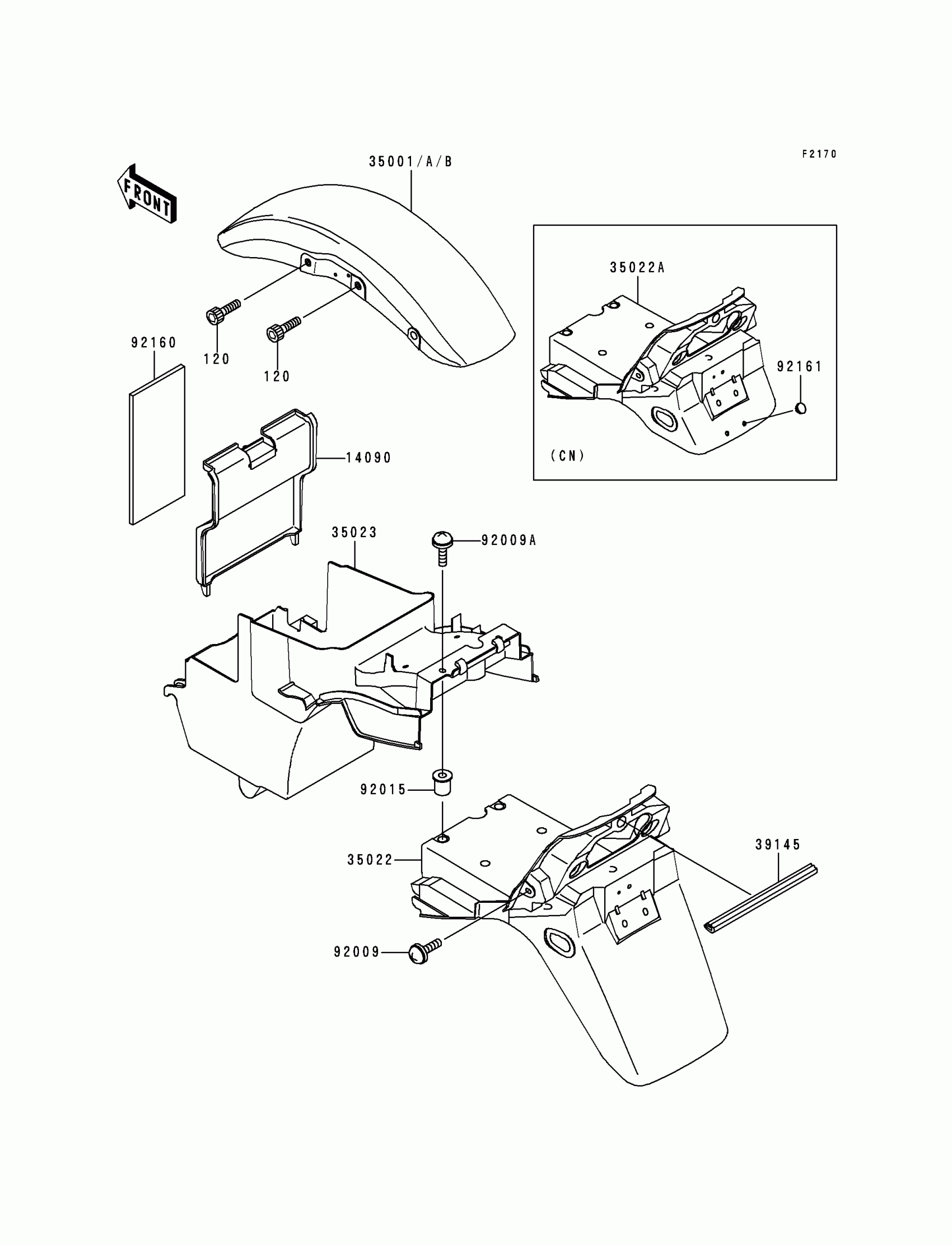

2000 Kawasaki ZRX1100 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120S0620

1
Out of stock

14090

COVER,BATTERY

14090-1768

1
Out of stock

35001B

FENDER-ASSY-FRONT,P.J.GREEN

35001-1175-U5

1
Out of stock

35023

FENDER-REAR,FR

35023-1488

1
Out of stock

39145

TRIM-SEAL,L=120

39145-1104

1
Out of stock

92009

SCREW,6X14

92009-1662

1
Out of stock

92009A

SCREW,6X18

92009-1663

1
Out of stock

92015

NUT

92015-1700

1
Out of stock

92160

DAMPER

92160-1851

1
Out of stock

35001

FENDER-ASSY-FRONT,F.RED

35001-1175-B1

1
Out of stock

35001A

FENDER-ASSY-FRONT,EBONY

35001-1175-H8

1
Out of stock

35022

FENDER-COMP-REAR,RR

35022-1336

1
Out of stock

35022A

FENDER-COMP-REAR,RR

35022-1341

1
Out of stock

92161

DAMPER

92161-1084

1
Out of stock
