2000 Kawasaki ZRX1100 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

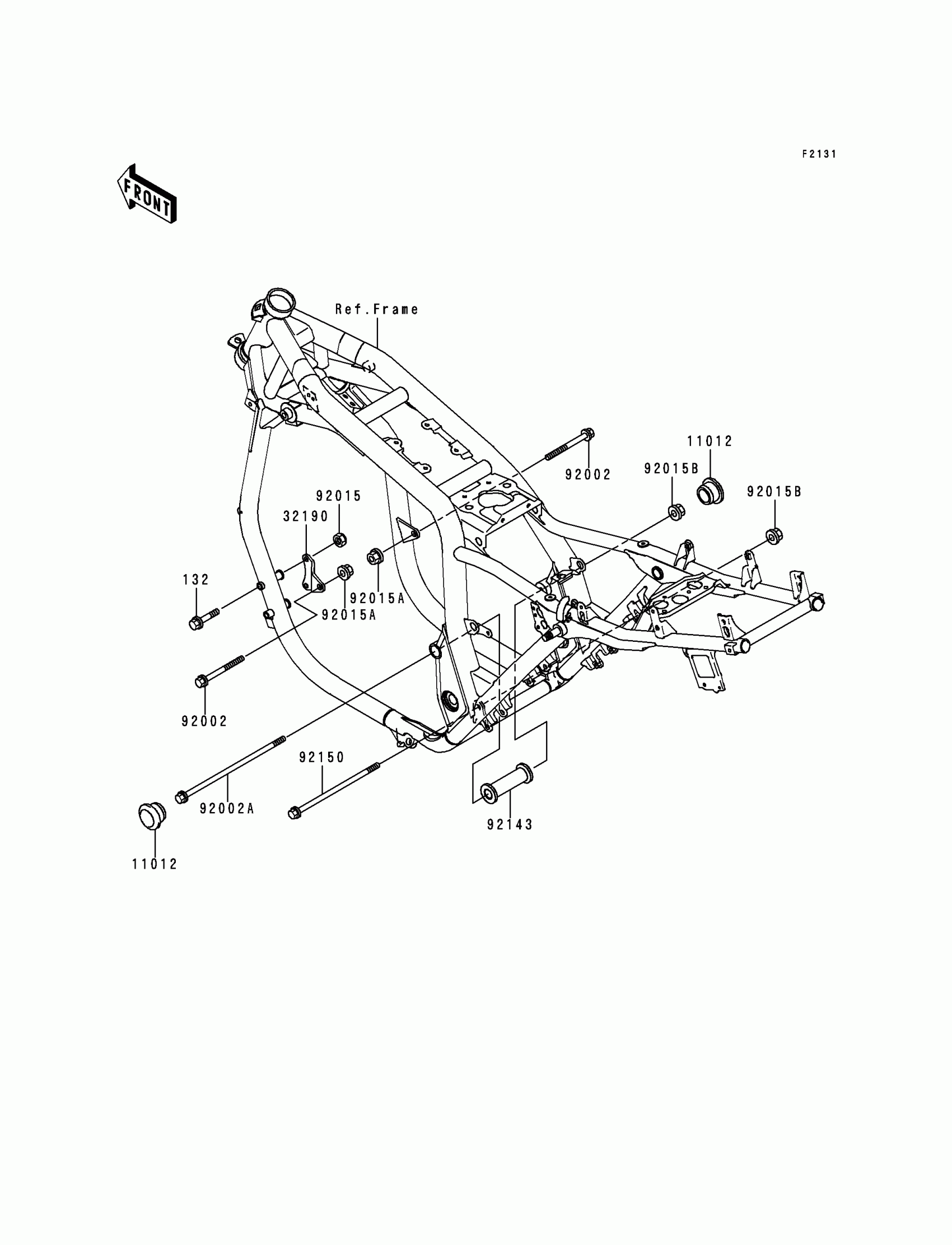

2000 Kawasaki ZRX1100 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132J0870

1
Out of stock

11012

CAP

11012-1896

1
Out of stock

32190

BRACKET-ENGINE

32190-1066

1
Out of stock

92002

BOLT,FLANGED,10X50

92002-1314

1
Out of stock

92002A

BOLT,FLANGED,10X265

92002-1722

1
Out of stock

92015

NUT,FLANGED,8MM,BLACK

92015-1183

1
Out of stock

92015A

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92015B

NUT,LOCK,10MM

92015-1522

1
Out of stock

92143

COLLAR,L=61.5

92143-1916

1
Out of stock

92150

BOLT,FLANGED,10X215

92150-1142

1
Out of stock
