2000 Kawasaki ZRX1100 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

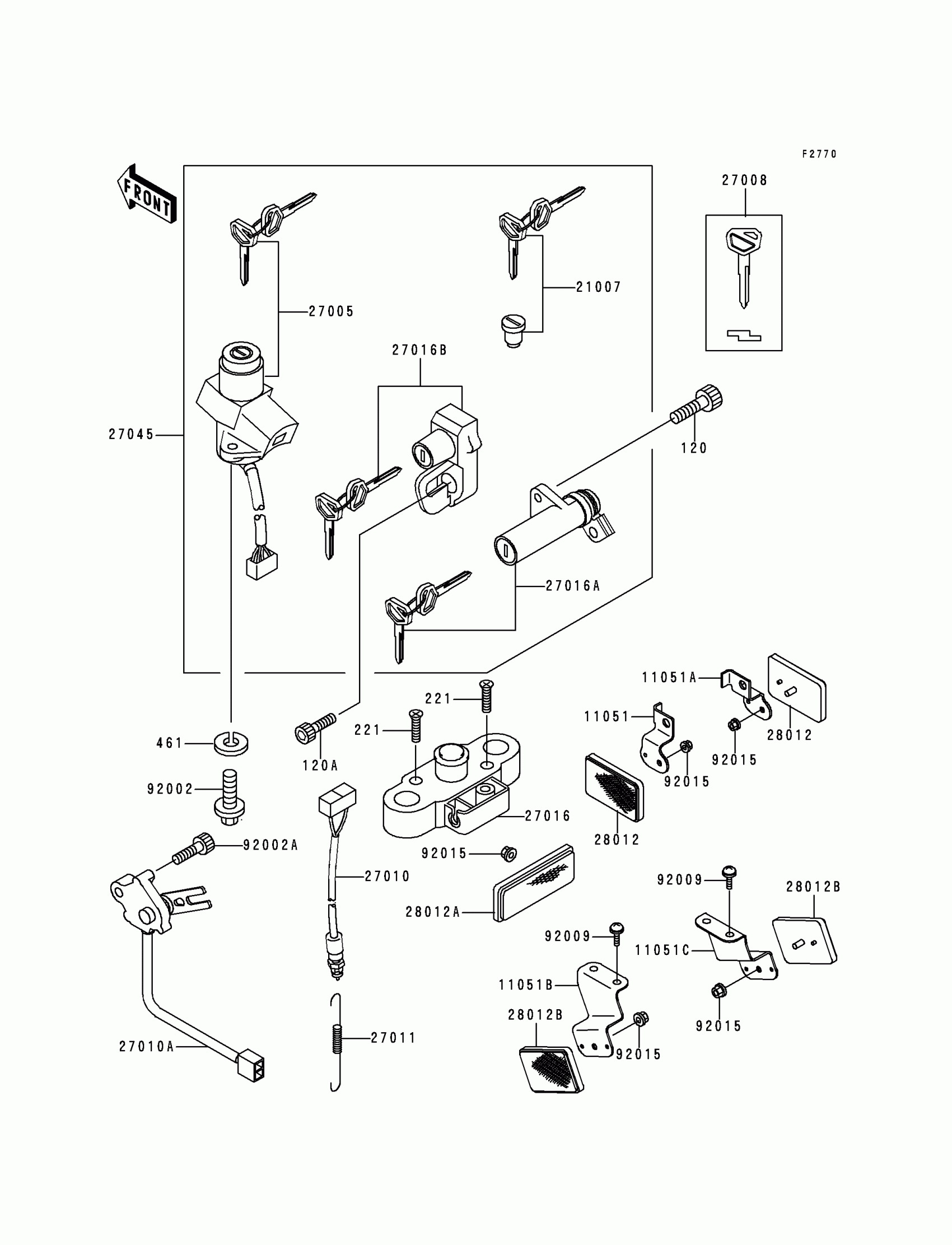

2000 Kawasaki ZRX1100 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

120A

BOLT-SOCKET,6X20

120S0620

1
Out of stock

221

SCREW-CSK-CROSS

221C0630

1
Out of stock

461

WASHER-SPRING

461L0600

1

$0.68

In stock

11051

BRACKET,REFLECTOR,FR,SIDE,LH

11051-1129

1
Out of stock

11051A

BRACKET,REFLECTOR,FR,SIDE,RH

11051-1130

1
Out of stock

11051B

1

$16.00

In stock

11051C

1

$16.00

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5042

1

$94.15

In stock

27005

SWITCH-ASSY-IGNITION

27005-5112

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1189

1

$13.89

In stock

27010

SWITCH,BRAKE LAMP

27010-1152

1

$27.22

In stock

27010A

SWITCH,SIDE STAND

27010-1371

1

$61.40

In stock

27011

1

$23.12

In stock

27016

1

$86.38

In stock

27016A

LOCK-ASSY,HELMET

27016-5249

1
Out of stock

27016B

LOCK-ASSY,SEAT

27016-5250

1

$85.59

In stock

27045

SWITCH-ASSY

27045-5085

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1

$20.69

In stock

28012A

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

28012B

REFLECTOR-REFLEX

28012-1088

1

$20.82

In stock

92002

BOLT,TORX,6X16

92002-1333

1

$2.15

In stock

92002A

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock
