2000 Kawasaki ZRX1100 Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

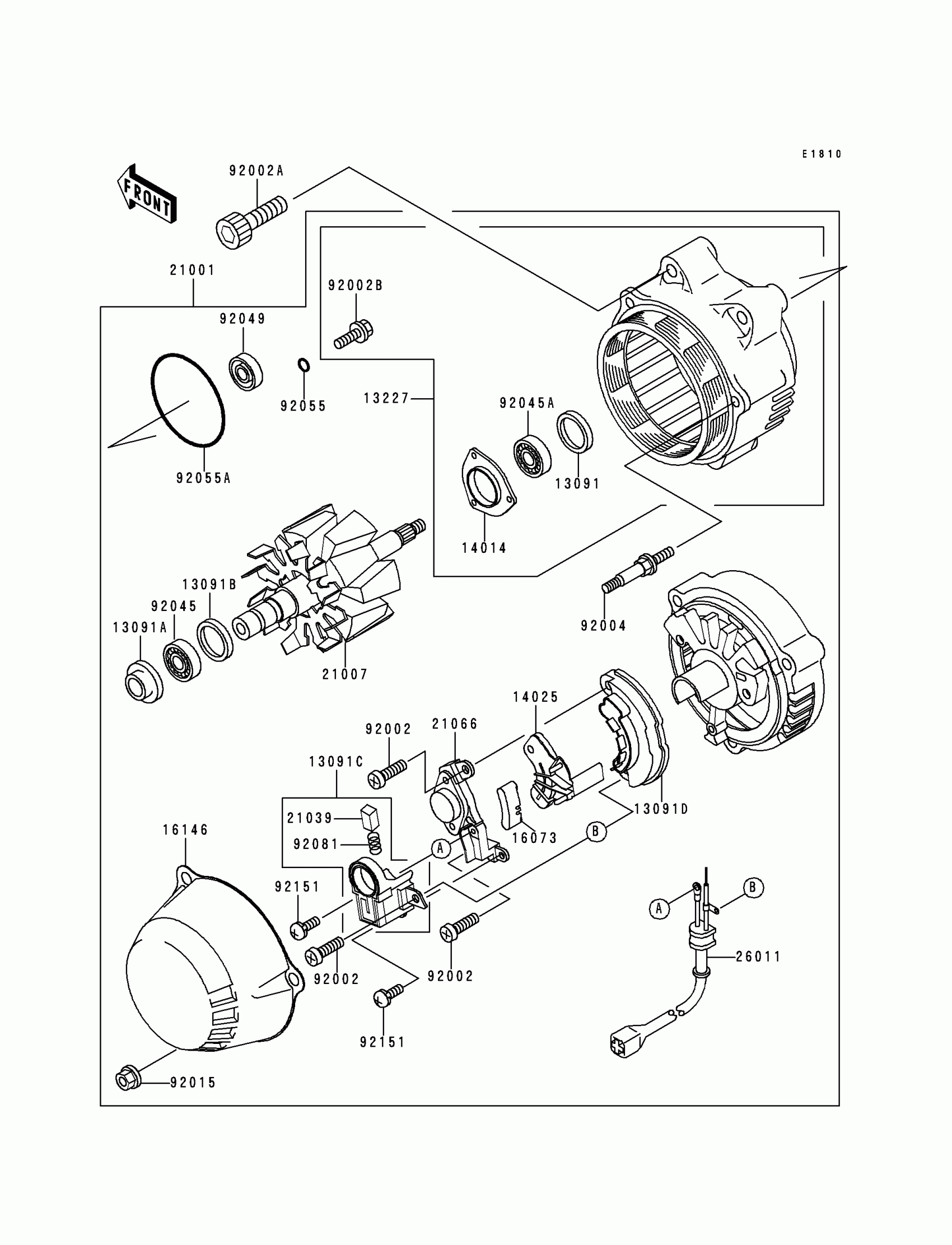

2000 Kawasaki ZRX1100 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,BEARING

13091-1326

1

$13.64

In stock

13091A

HOLDER,COVER

13091-1327

1

$18.17

In stock

13091B

HOLDER,BEARING

13091-1328

1

$12.90

In stock

13091C

HOLDER,BRUSH

13091-1465

1

$113.58

In stock

13091D

RECTIFIER

13091-1466

1

$522.25

In stock

13227

HOUSING,GENERATOR

13227-1127

1

$726.17

In stock

14014

PLATE-POSITION

14014-1065

1
Out of stock

14025

COVER,RECTIFIER

14025-1942

1

$10.61

In stock

16073

INSULATOR

16073-1062

1

$20.58

In stock

16146

1

$212.78

In stock

21001

GENERATOR

21001-1150

1

$1,399.33

In stock

21007

ROTOR,GENERATOR

21007-1196

1

$567.72

In stock

21039

BRUSH,CARBON

21039-1052

1

$29.01

In stock

21066

REGULATOR-VOLTAGE

21066-1076

1

$424.45

In stock

26011

WIRE-LEAD,GENERATOR

26011-1671

1

$91.51

In stock

92002

SCREW,5X17.5

92002-1380

1

$4.46

In stock

92002A

BOLT,SOCKET,8X45

92002-1716

1
Out of stock

92002B

SCREW

92002-1856

1
Out of stock

92004

STUD

92004-1196

1
Out of stock

92015

NUT

92015-1800

1
Out of stock

92045

1

$54.40

In stock

92045A

BEARING-BALL,#6002

92045-1350

1

$51.60

In stock

92049

SEAL-OIL

92049-1467

1
Out of stock

92055

RING-O,3.5MM

92055-1264

1

$3.21

In stock

92055A

RING-O,70.6X2.4

92055-1366

1

$29.82

In stock

92081

SPRING,BRUSH

92081-1759

1

$7.88

In stock

92151

SCREW,4X6

92151-1245

1

$2.19

In stock
