2000 Kawasaki ZRX1100 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

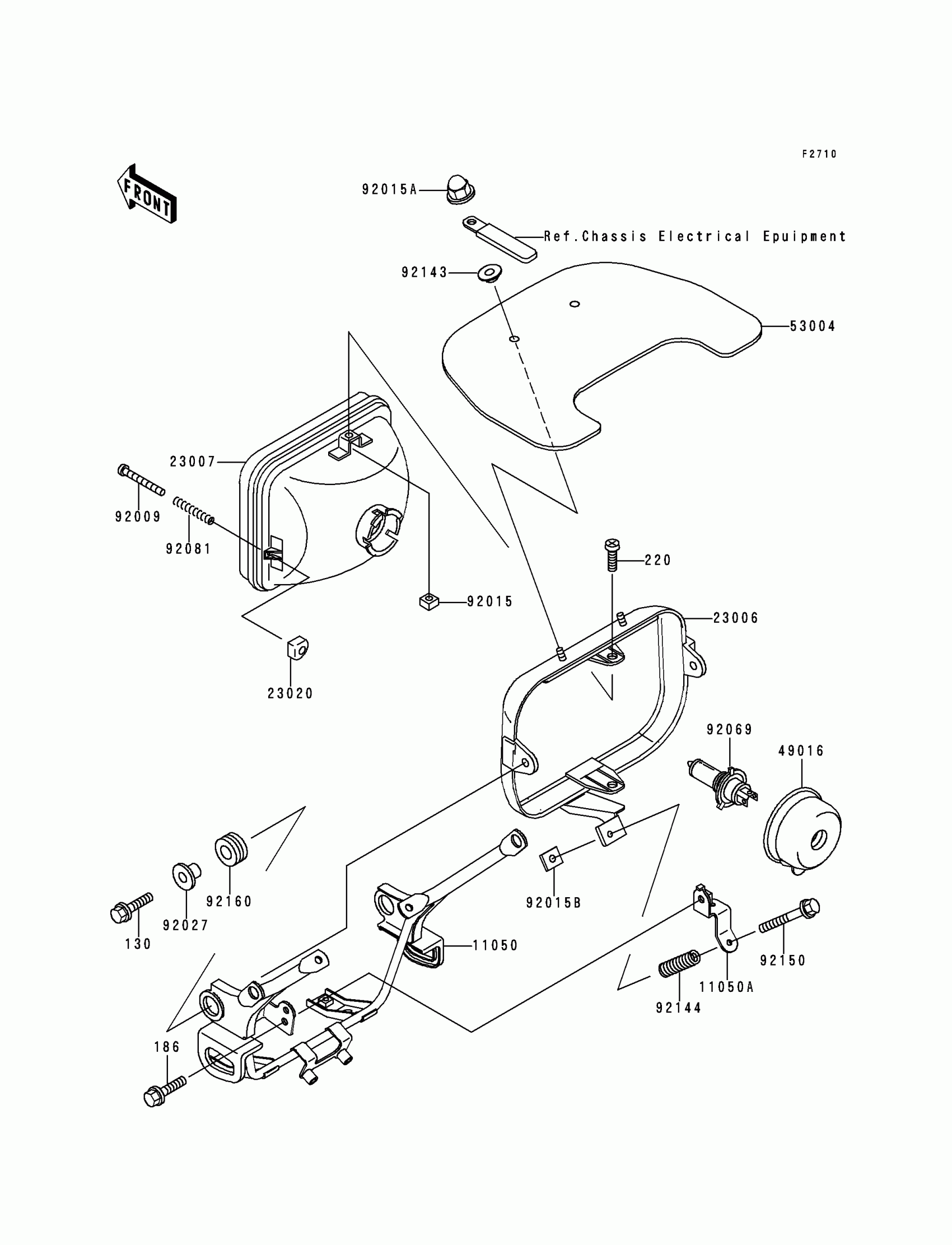

2000 Kawasaki ZRX1100 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

186

BOLT-UPSET-WP

186J0612

1
Out of stock

220

1

$0.51

In stock

11050

BRACKET,HEAD LAMP

11050-1087

1

$139.30

In stock

11050A

BRACKET,HEAD LAMP BODY

11050-1119

1
Out of stock

23006

RIM-LAMP

23006-1068

1

$136.58

In stock

23007

LENS-COMP,HEAD LAMP

23007-1321

1

$142.67

In stock

23020

1

$3.69

In stock

49016

1

$11.85

In stock

53004

MAT,HEAD LAMP

53004-1117

1
Out of stock

92009

SCREW,4MM,FOCUS ADJUST

92009-1047

1
Out of stock

92015

NUT,5MM

92015-1157

1
Out of stock

92015A

NUT,CAP,6MM,BLACK

92015-1170

1
Out of stock

92015B

1

$3.88

In stock

92027

1

$8.16

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92081

1

$4.10

In stock

92143

COLLAR

92143-1087

1

$3.11

In stock

92144

SPRING

92144-1417

1

$4.10

In stock

92150

BOLT,ADJUST,5X45

92150-1590

1

$5.64

In stock

92160

DAMPER

92160-1007

1

$4.37

In stock
