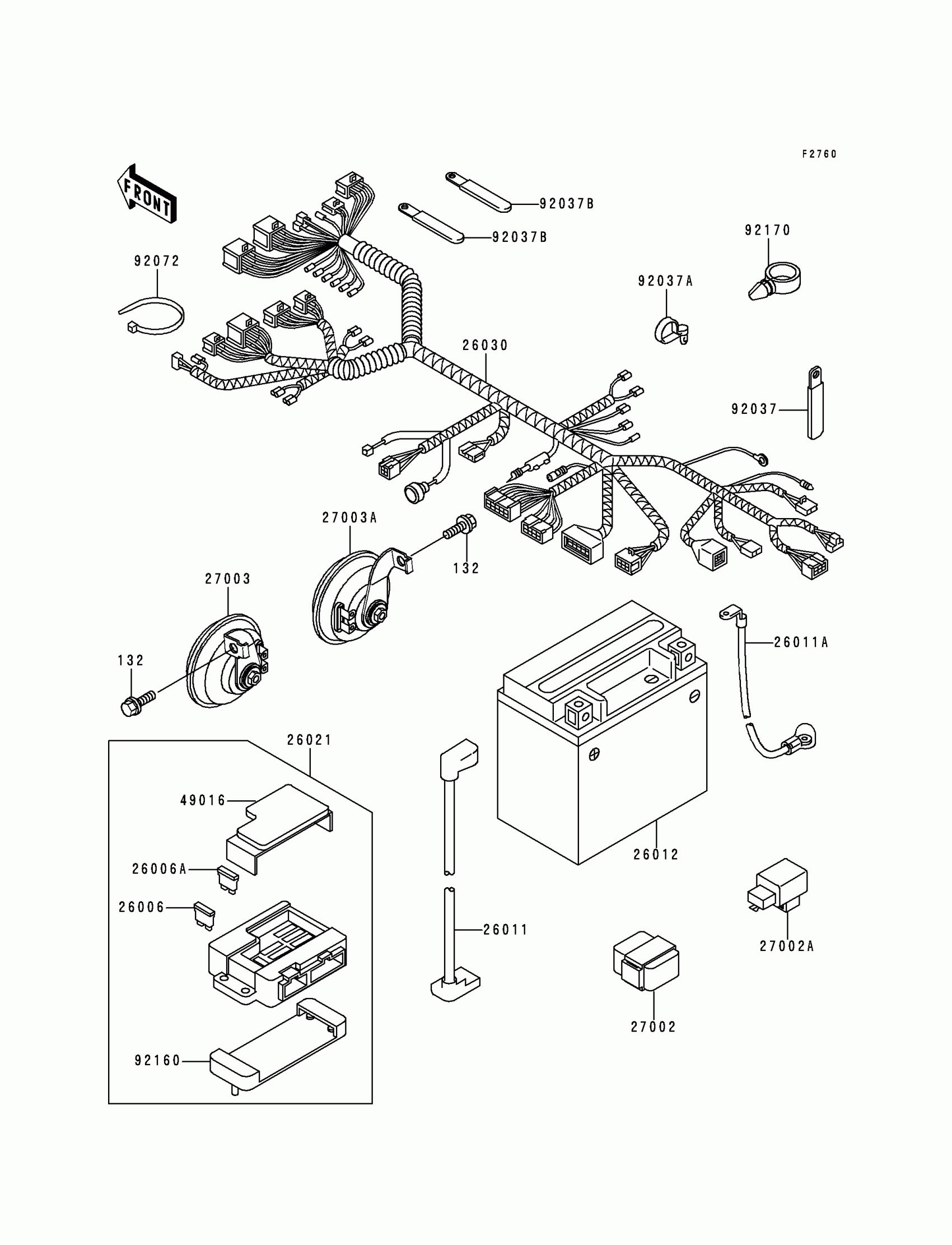

Kawasaki ZRX1100 Chassis Electrical Equipment Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X12

132J0812

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-1652

Unavailable

26011A

WIRE-LEAD,BATTERY(-)

26011-1653

Unavailable

26012

BATTERY,YTX14-BS,12V 12AH

26012-1334

$125.31

26021

JUNCTION BOX

26021-1096

$150.49

26030

HARNESS,MAIN

26030-1629

Unavailable

27002

RELAY-ASSY,HEAD LAMP

27002-1078

Unavailable

27002A

RELAY-ASSY,TURN SIGNAL

27002-1101

$73.74

27003

HORN,LH

27003-1402

$94.26

27003A

HORN,RH

27003-1403

$94.26

49016

COVER-SEAL,FUSE

49016-1177

Unavailable

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92037B

CLAMP

92037-1993

$4.18

92072

BAND,L=250

92072-1237

$1.55

92160

DAMPER,JUNCTION BOX

92160-1650

$12.78

92170

CLAMP

92170-1067

$5.69
