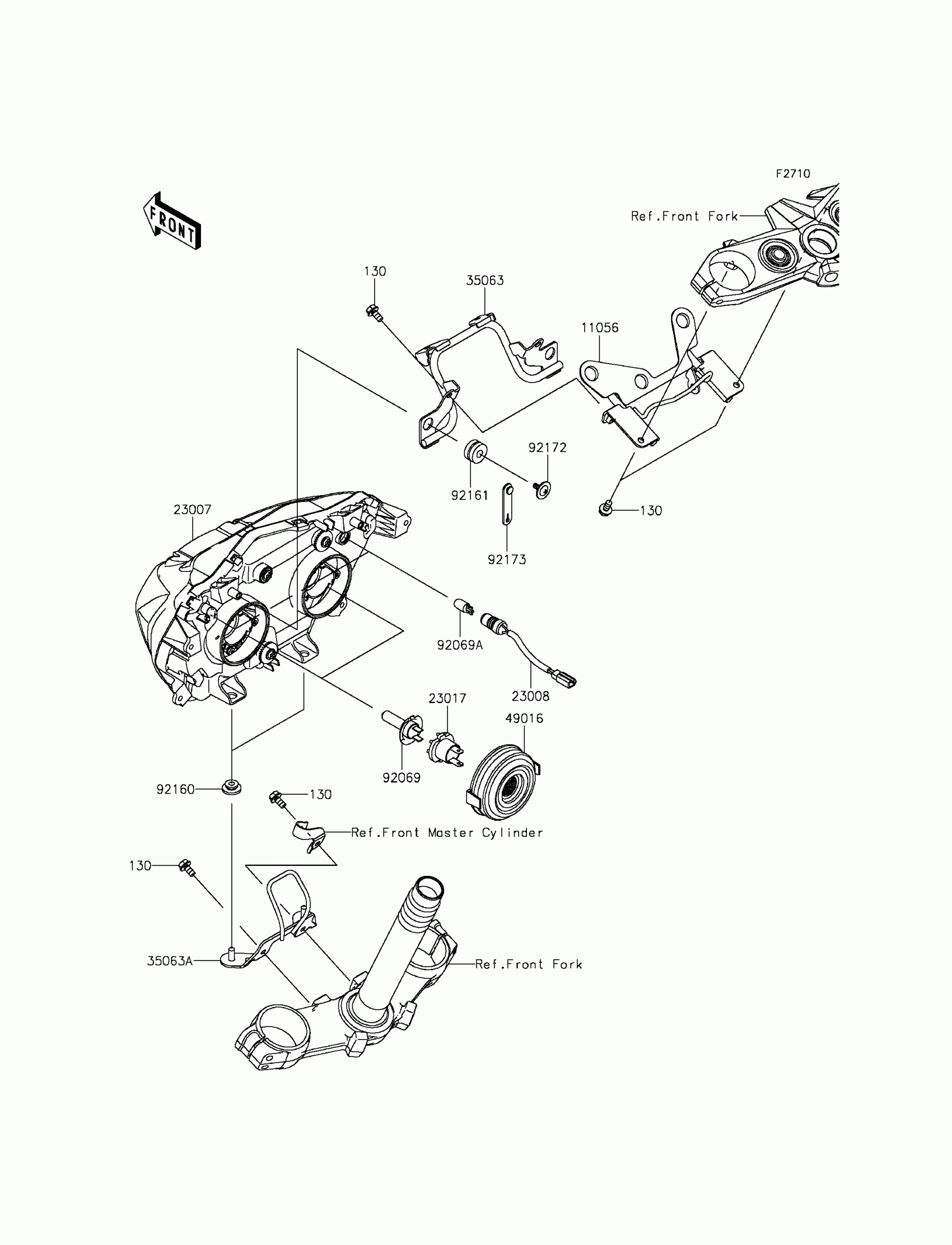

Kawasaki ZR800 (European) Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BB0612

$1.68

11056

BRACKET,METER

11056-1801

Unavailable

23007

LENS-COMP

23007-0180

Unavailable

23008

SOCKET-ASSY,POSITION LAMP

23008-0152

$84.48

23017

SOCKET,HEAD LAMP

23017-0004

$17.41

35063

STAY,HEAD LAMP,UPP

35063-0865

Unavailable

35063A

STAY,HEAD LAMP,LWR

35063-0866

Unavailable

49016

COVER-SEAL

49016-0591

$17.63

92069

BULB,12V 55W,H7

92069-0053

$38.09

92069A

BULB,12V 5W

92069-1016

$4.88

92160

DAMPER

92160-1613

$2.84

92161

DAMPER

92161-0054

$4.15

92172

SCREW,TAPPING+PW,5X14

92172-0477

$7.32

92173

CLAMP,RUBBER PLATE

92173-1229

$3.56
