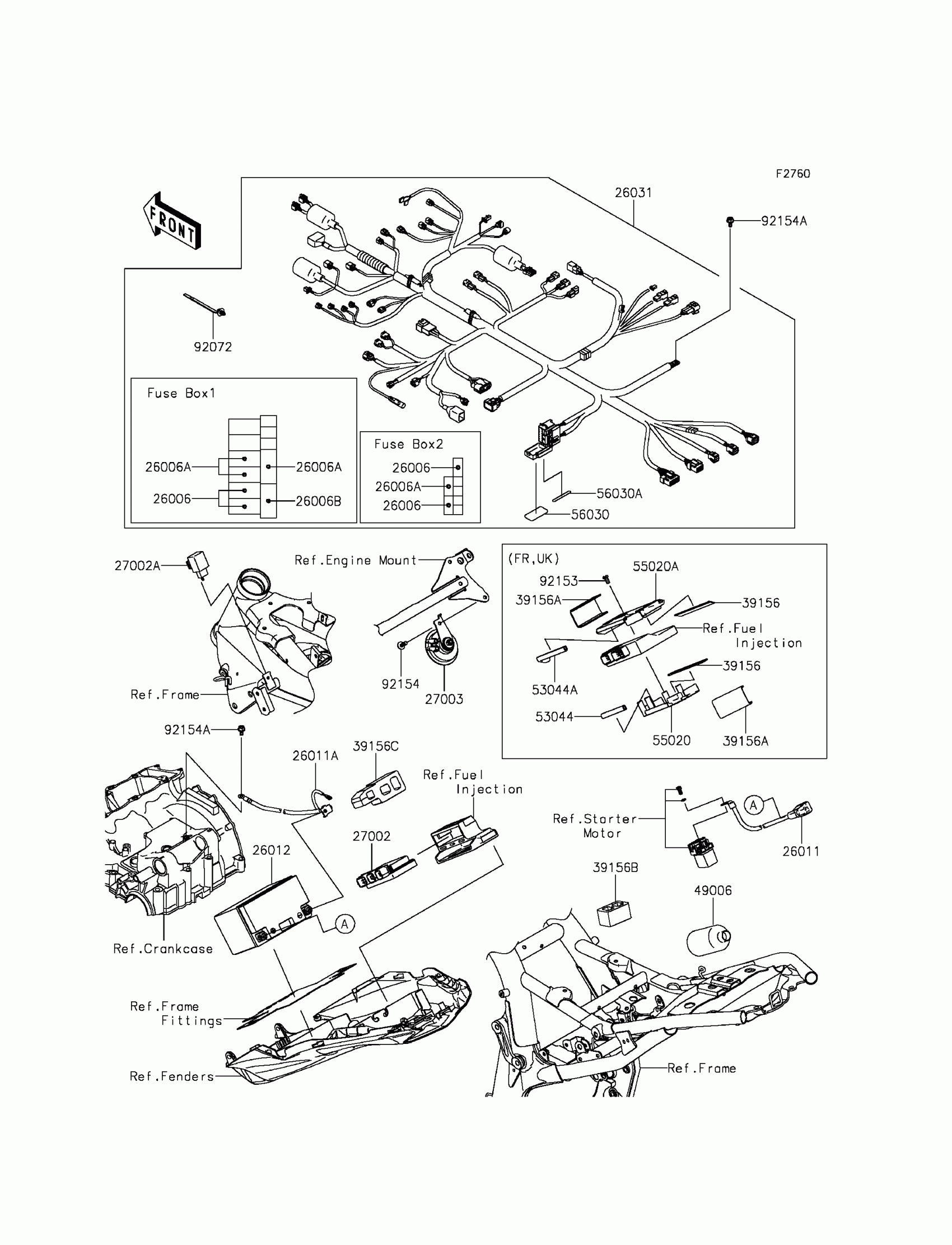

Kawasaki ZR800 (European) Chassis Electrical Equipment Diagram

Description

Price

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,7.5A,BROWN

26006-0055

$5.71

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,BATTERY(+)

26011-0764

$77.90

26011A

WIRE-LEAD,BATTERY(-)

26011-0810

$85.43

26012

BATTERY,FTX9-BS,12V 8AH

26012-0610

Unavailable

26031

HARNESS,MAIN

26031-1531

$859.86

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1097

$48.33

27003

HORN

27003-0094

Unavailable

39156B

PAD,FUEL GAUGE

39156-0948

$4.15

39156C

PAD,DIAG

39156-0988

$5.97

49006

BOOT

49006-0573

$12.98

56030

LABEL,FUSE BOX 1

56030-0737

$3.92

56030A

LABEL,FUSE BOX 2

56030-0784

$3.24

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92154

BOLT,SOCKET,6X18

92154-1026

$1.44

92154A

BOLT,FLANGED,6X12

92154-1050

$1.68

39156

PAD,FUEL TANK COVER

39156-0096

$2.66

39156A

PAD,ECU GUARD

39156-0291

$3.49

53044

TRIM

53044-0567

$5.73

53044A

TRIM

53044-0568

$7.71

55020

GUARD,ECU,UNDER

55020-0869

Unavailable

55020A

GUARD,ECU,TOP

55020-0870

Unavailable

92153

BOLT,6X12

92153-0906

$4.34
