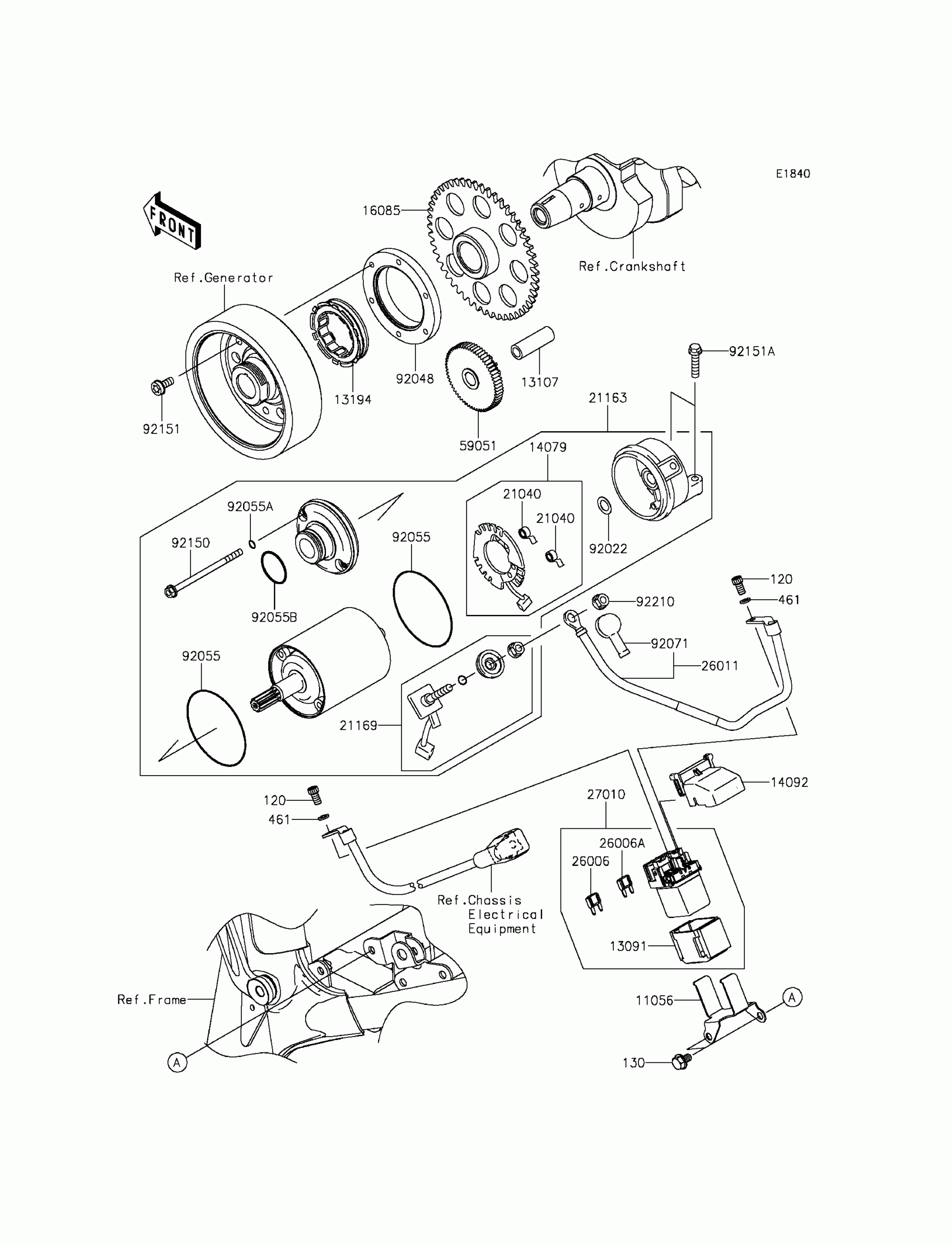

Kawasaki ZR800 (European) Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,5X10

120CB0510

Unavailable

130

BOLT-FLANGED,6X10

130CC0610

$1.10

461

WASHER-SPRING,5MM

461DB0500

$1.29

11056

BRACKET

11056-2049

$7.71

13091

HOLDER,MAGNETIC SWITCH

13091-1884

$11.90

13107

SHAFT,IDLER GEAR

13107-0744

$7.97

13194

CLUTCH-ONEWAY

13194-1096

$108.18

14079

HOLDER-ASSY,STARTER

14079-0009

$99.58

14092

COVER

14092-0109

$9.22

16085

GEAR,CLUTCH ONEWAY

16085-1303

$129.13

21040

SPRING-BRUSH

21040-0001

$7.56

21163

STARTER-ELECTRIC

21163-0729

$620.50

21169

TERMINAL,STARTER

21169-1058

$60.22

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD

26011-0760

$35.85

27010

SWITCH

27010-0113

Unavailable

59051

GEAR-SPUR,IDLER

59051-0714

$91.89

92022

WASHER

92022-2200

$1.27

92048

RACE

92048-0018

$65.13

92055

RING-O,62MM

92055-1260

Unavailable

92055A

RING-O,4.5MM

92055-1261

$2.29

92055B

RING-O,24.4X3.1

92055-1262

$11.90

92071

GROMMET

92071-0713

$12.73

92150

BOLT

92150-1237

$7.46

92151

BOLT,6X14

92151-1335

$2.66

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92210

NUT,6MM

92210-0188

$1.81
