2015 Kawasaki ZR800 (European) Generator Diagram

← All diagrams

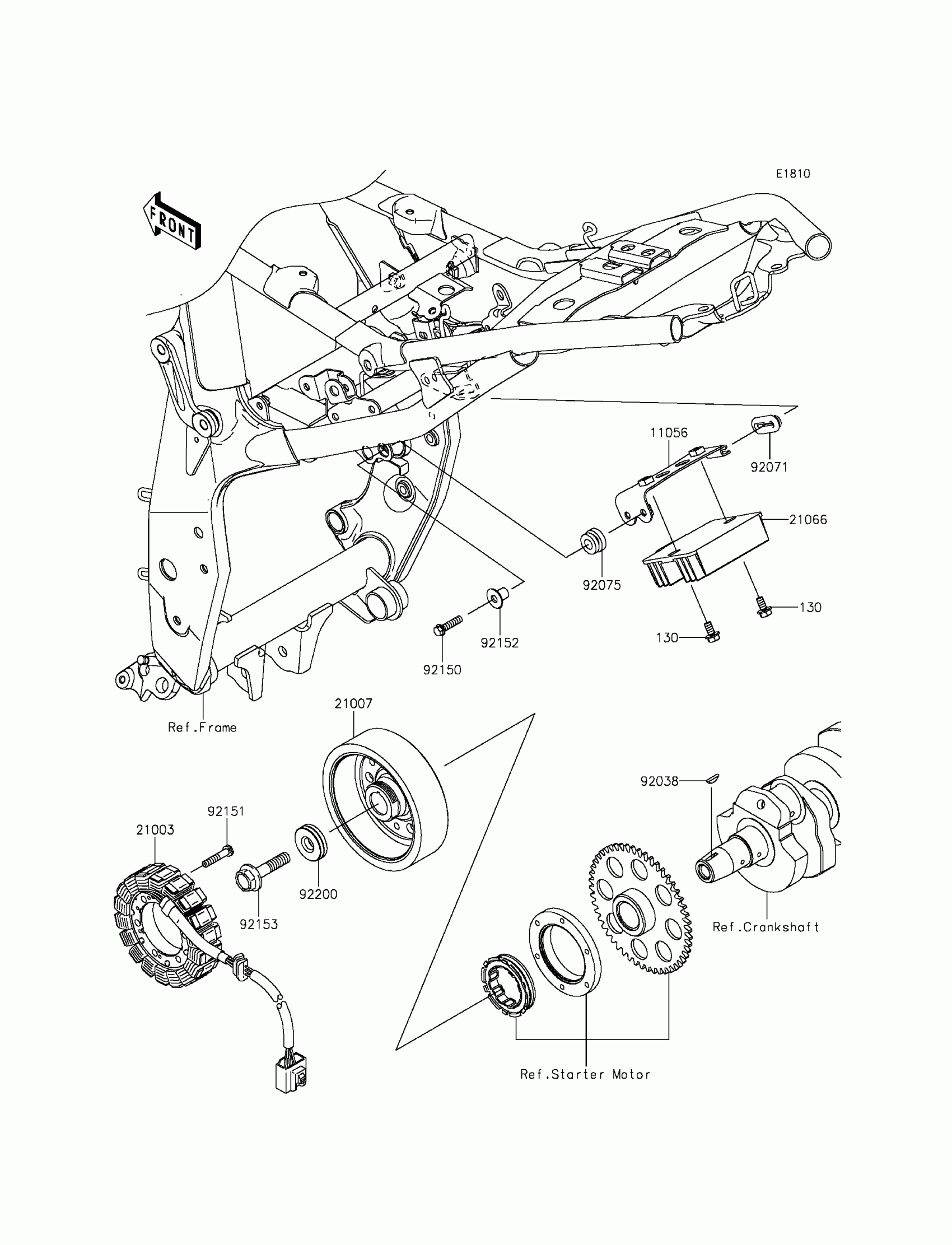

Find the part on the Generator diagram for your 2015 Kawasaki ZR800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Kawasaki ZR800 (European) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130BB0614

1

$1.84

In stock

11056

BRACKET,REGULATOR

11056-1757

1
Out of stock

21003

STATOR

21003-0133

1
Out of stock

21007

ROTOR

21007-0576

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0720

1
Out of stock

92038

KEY

92038-1060

1
Out of stock

92071

GROMMET

92071-1187

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92150

BOLT,FLANGED-SMALL,6X25

92150-1779

1
Out of stock

92151

BOLT,6X30

92151-1626

1
Out of stock

92152

COLLAR

92152-0667

1
Out of stock

92153

BOLT,12X40

92153-1855

1
Out of stock

92200

WASHER,12X34X9

92200-0369

1
Out of stock
