2005 Kawasaki ZR-7S (Canada Only) Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

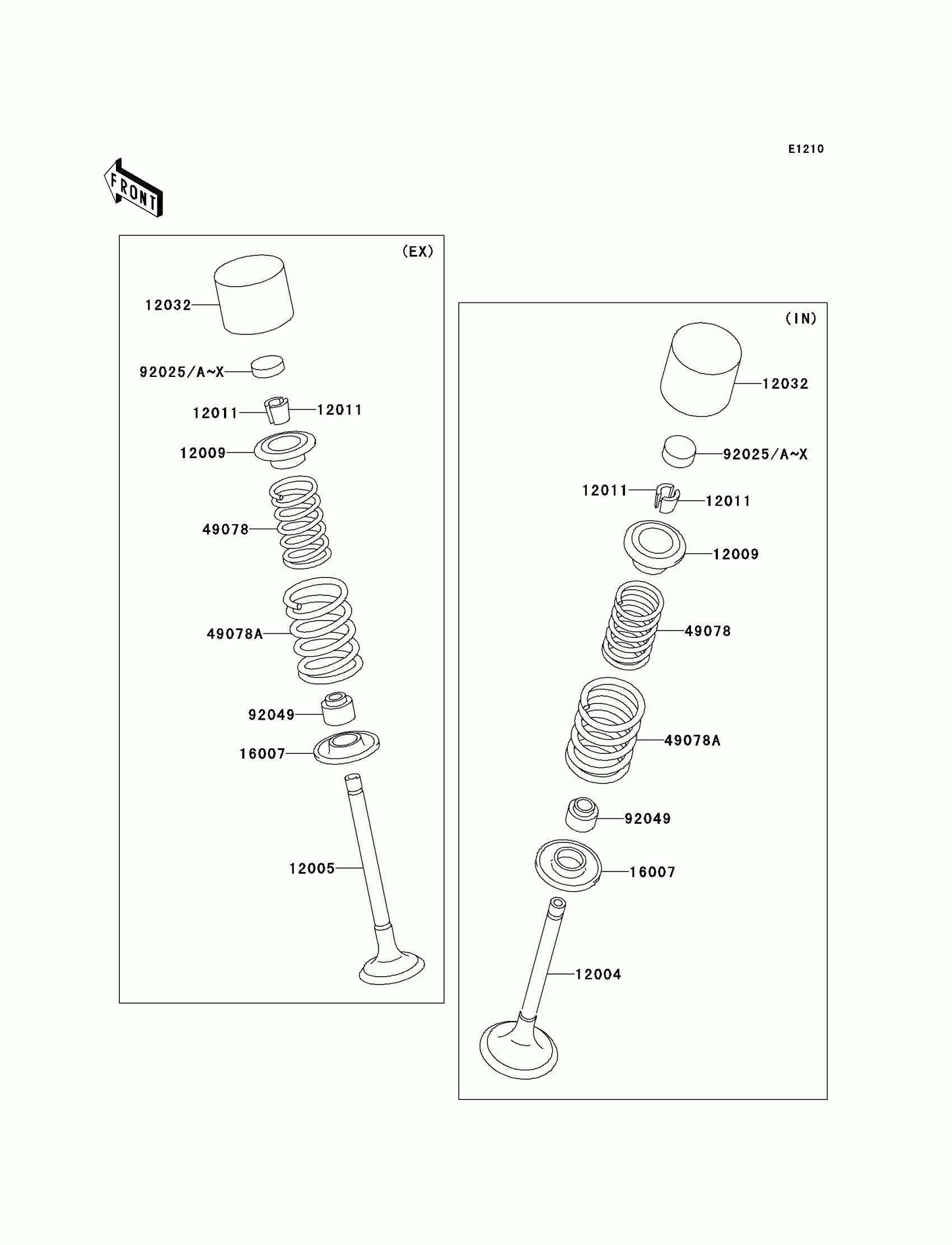

2005 Kawasaki ZR-7S (Canada Only) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-1140

1
Out of stock

12005

VALVE-EXHAUST

12005-0023

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-008

1
Out of stock

12011

COLLET,RETAINER

12011-004

1
Out of stock

12032

TAPPET

12032-1066

1
Out of stock

16007

SEAT-SPRING,VALVE

16007-1024

1
Out of stock

49078

SPRING-ENGINE VALVE,INNER

49078-1200

1
Out of stock

49078A

SPRING-ENGINE VALVE,OUTER

49078-1201

1
Out of stock

92025

SHIM,T=2.00

92025-1090

1
Out of stock

92025A

SHIM,T=2.05

92025-1091

—
Out of stock

92025B

SHIM,T=2.10

92025-1092

—
Out of stock

92025C

SHIM,T=2.15

92025-1093

—
Out of stock

92025D

SHIM,T=2.20

92025-1094

—
Out of stock

92025E

SHIM,T=2.25

92025-1095

—
Out of stock

92025F

SHIM,T=2.30

92025-1096

—
Out of stock

92025G

SHIM,T=2.35

92025-1097

—
Out of stock

92025H

SHIM,T=2.40

92025-1098

—
Out of stock

92025I

SHIM,T=2.45

92025-1099

—
Out of stock

92025J

SHIM,T=2.50

92025-1100

—
Out of stock

92025K

SHIM,T=2.55

92025-1101

—
Out of stock

92025L

SHIM,T=2.60

92025-1102

—
Out of stock

92025M

SHIM,T=2.65

92025-1103

—
Out of stock

92025N

SHIM,T=2.70

92025-1104

—
Out of stock

92025O

SHIM,T=2.75

92025-1105

—
Out of stock

92025P

SHIM,T=2.80

92025-1106

—
Out of stock

92025Q

SHIM,T=2.85

92025-1107

—
Out of stock

92025R

SHIM,T=2.90

92025-1108

—
Out of stock

92025S

SHIM,T=2.95

92025-1109

—
Out of stock

92025T

SHIM,T=3.00

92025-1110

—
Out of stock

92025U

SHIM,T=3.05

92025-1111

—
Out of stock

92025V

SHIM,T=3.10

92025-1112

—
Out of stock

92025W

SHIM,T=3.15

92025-1113

—
Out of stock

92025X

SHIM,T=3.20

92025-1114

—
Out of stock

92049

SEAL-OIL,RV37129.5

92049-016

1
Out of stock
