2005 Kawasaki ZR-7S (Canada Only) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

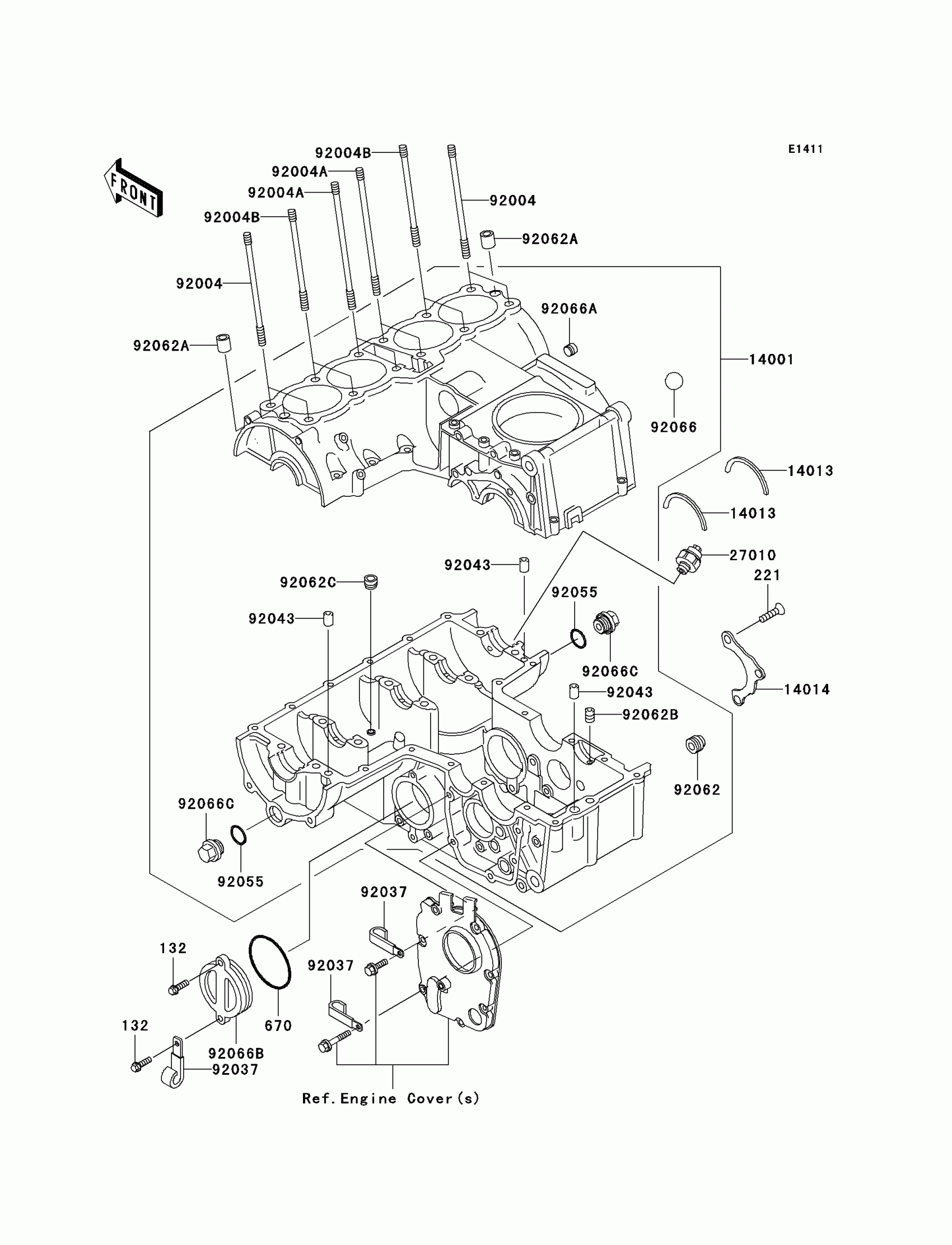

2005 Kawasaki ZR-7S (Canada Only) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X20

132Y0620

1
Out of stock

221

1

$1.98

In stock

670

O RING,46MM

670E3046

1

$20.00

In stock

14001

SET-CRANKCASE

14001-5370

1
Out of stock

14013

RING-POSITION

14013-004

1
Out of stock

14014

PLATE-POSITION,SECONDARY SHAFT

14014-1007

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1

$36.57

In stock

92004

STUD,10X133

92004-1231

1
Out of stock

92004A

STUD,10X153

92004-1232

1
Out of stock

92004B

STUD,10X116

92004-1233

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92055

RING-O,20X2

92055-1146

1

$6.82

In stock

92062

NOZZLE

92062-014

1

$9.56

In stock

92062A

NOZZLE

92062-016

1
Out of stock

92062B

NOZZLE,6X8,SILVER

92062-1081

1

$5.63

In stock

92062C

NOZZLE,5X6,SILVER

92062-1086

1

$3.69

In stock

92066

1

$4.58

In stock

92066A

PLUG

92066-1005

1

$1.64

In stock

92066B

1

$18.53

In stock

92066C

1

$9.11

In stock
