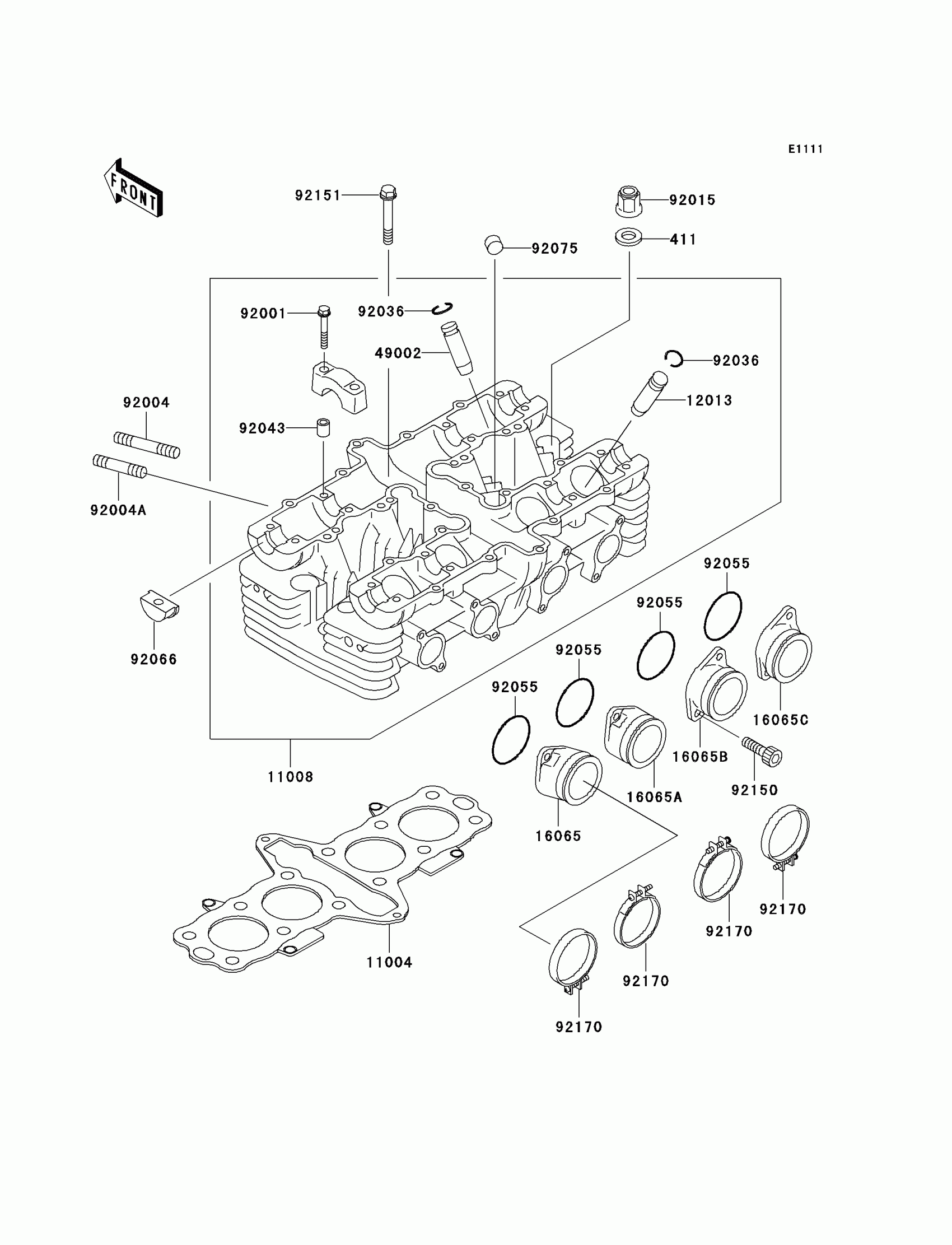

Kawasaki ZR-7S (Canada Only) Cylinder Head Diagram

Description

Price

411

WASHER-PLAIN,10MM

411B1000

Unavailable

11004

GASKET-HEAD

11004-1342

$112.01

11008

HEAD-COMP-CYLINDER

11008-1363

$2,385.46

12013

GUIDE-VALVE,INTAKE

12013-009

Unavailable

16065

HOLDER-CARBURETOR,#1

16065-1256

$41.09

16065A

HOLDER-CARBURETOR,#2

16065-1257

$41.09

16065B

HOLDER-CARBURETOR,#3

16065-1258

$41.09

16065C

HOLDER-CARBURETOR,#4

16065-1259

$41.09

49002

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

92001

BOLT,FLANGED,6X38

92001-1105

$3.57

92004

STUD,8X35

92004-1208

$5.46

92004A

STUD,8X28.5

92004-1209

$7.73

92015

NUT,FLANGED CAP,10MM

92015-076

$10.39

92036

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92043

PIN,6.2X8X14

92043-1263

$0.46

92055

RING-O,32MM

92055-1256

$9.95

92066

PLUG,HEAD COVER

92066-1509

$30.56

92075

DAMPER

92075-182

$4.00

92150

BOLT,SOCKET,6X14

92150-1818

$4.25

92151

BOLT,8X43

92151-1485

$2.51

92170

CLAMP

92170-1438

$6.85
