Description

Price

130

BOLT-FLANGED,6X16

130P0616

$1.32

601

BEARING-BALL,#6004

601A6004

$9.04

11065

CAP,CHAIN ADJUSTER,SILVER

11065-1132-CE

$38.44

32085

STOPPER,CHAIN ADJUSTER

32085-1408

$4.64

33001A

ARM-COMP-SWING,BLACK

33001-1569-10

$1,182.74

33032

SHAFT-SWING ARM

33032-1142

$107.05

33040

ADJUSTER-CHAIN,INNER

33040-1142

$50.78

33040A

ADJUSTER-CHAIN,OUTER,RH

33040-1143

$6.93

42036

SLEEVE,SWING ARM,L=219.5

42036-1358

$75.03

49001

NIPPLE-GREASE

49001-0001

$2.11

55020

GUARD,CHAIN

55020-1690

$49.65

92009

SCREW

92009-1664

$3.43

92009A

SCREW,6X12

92009-1894

$3.65

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92015A

NUT,FLANGED,20MM

92015-1724

$11.31

92015B

NUT,POP,6MM,L=15

92015-1791

$3.57

92033

RING-SNAP,42MM

92033-1041

$4.64

92046

BEARING-NEEDLE,BM2817

92046-1111

$17.68

92049

SEAL-OIL,28X34X5.7

92049-1181

$7.08

92049A

SEAL-OIL,TC28426.5

92049-1185

$9.02

92143

COLLAR,SWING ARM,RH,L=12.5

92143-1727

$18.34

92150

BOLT,CHAIN ADJUSTER

92150-1285

$6.89

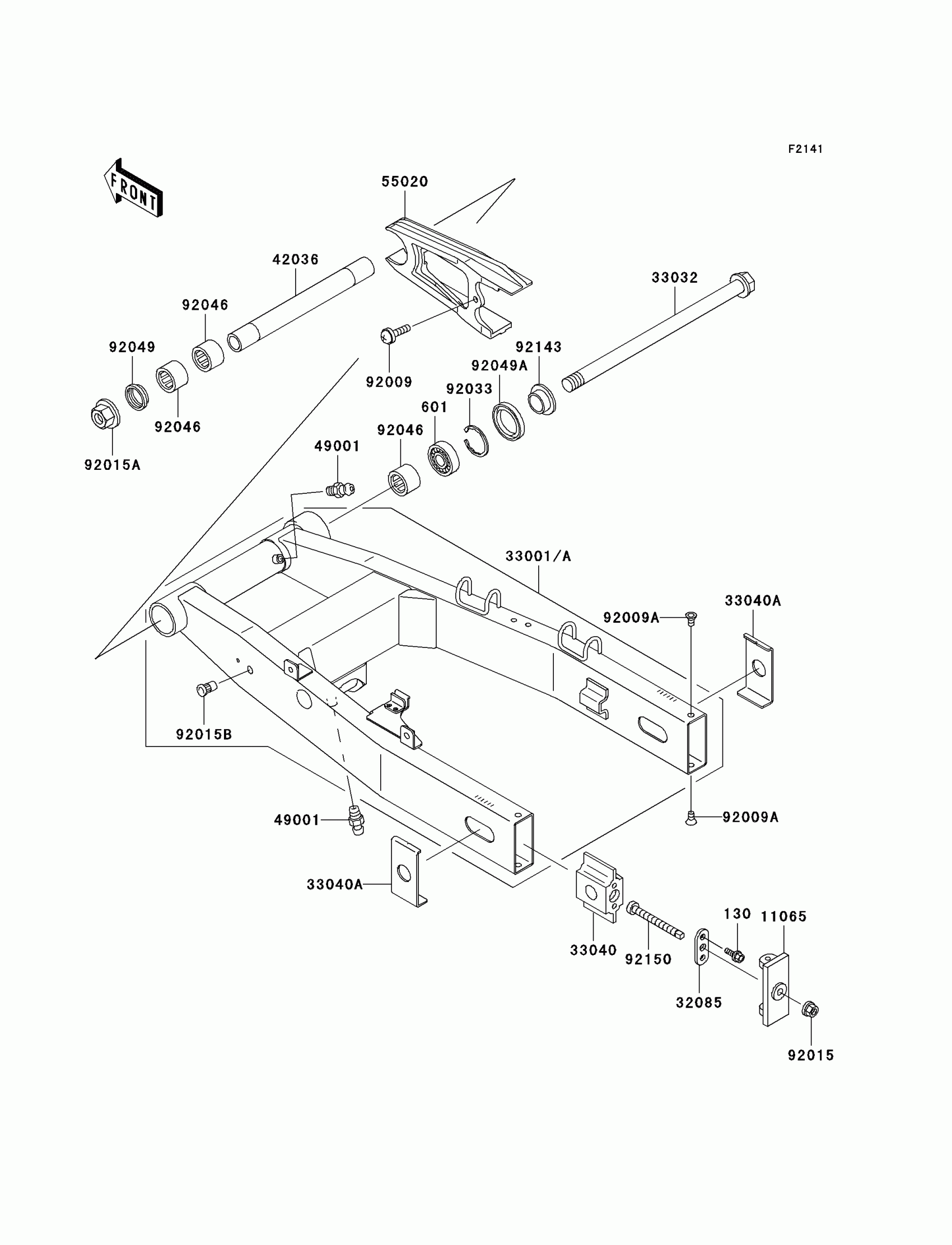

Kawasaki ZR-7S (Canada Only) Swingarm Diagram
