2005 Kawasaki ZR-7S (Canada Only) Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

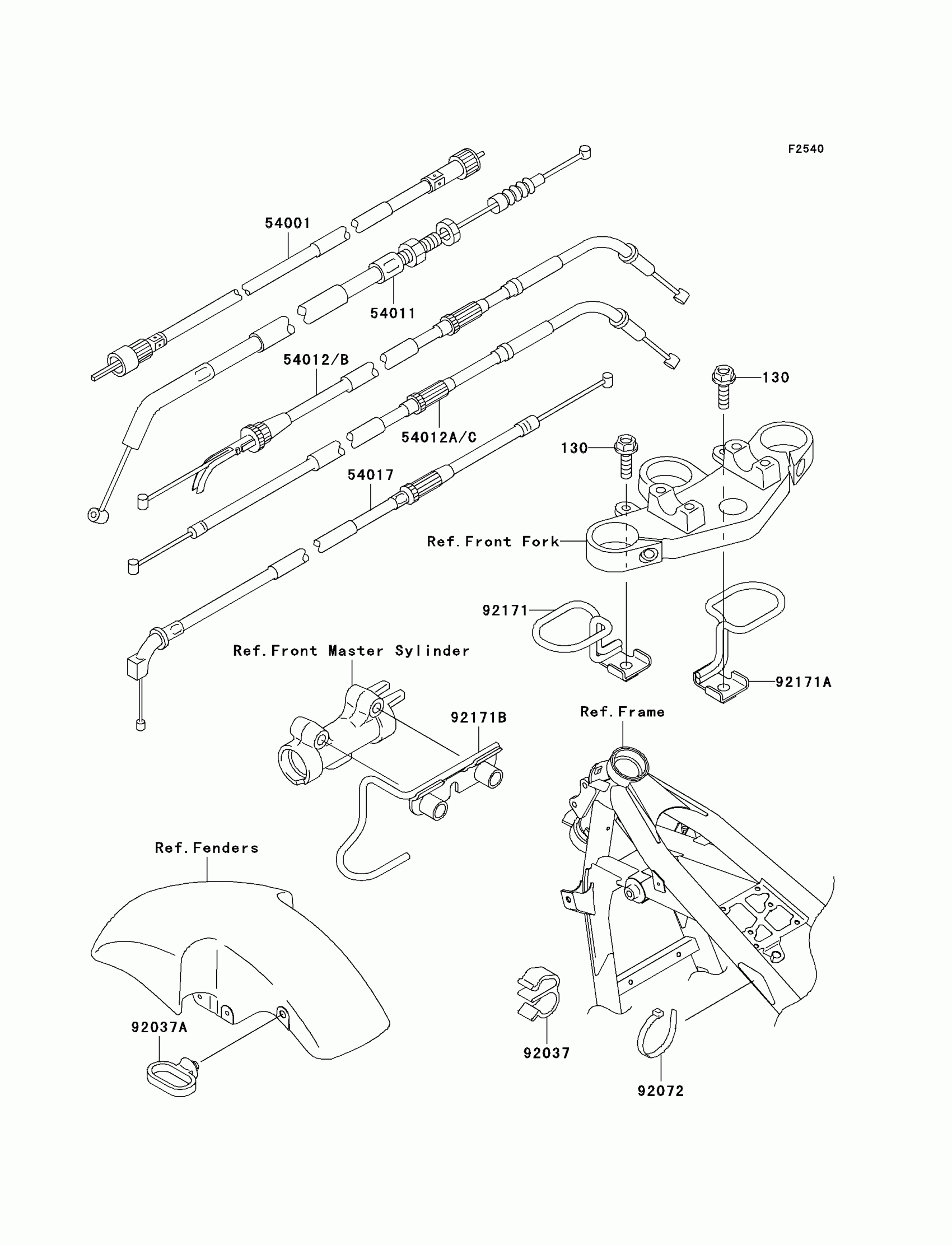

2005 Kawasaki ZR-7S (Canada Only) Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130J0620

1
Out of stock

54001

CABLE-SPEEDOMETER

54001-1143

1
Out of stock

54011

CABLE-CLUTCH

54011-1414

1

$35.27

In stock

54012

1

$36.87

In stock

54012A

1

$36.87

In stock

54017

CABLE-STARTER

54017-1205

1
Out of stock

92037

CLAMP

92037-1458

1

$5.66

In stock

92037A

CLAMP,CABLE

92037-1459

1

$20.18

In stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

92171

1

$10.17

In stock

92171A

1

$10.17

In stock

92171B

1

$11.92

In stock
