2005 Kawasaki ZR-7S (Canada Only) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

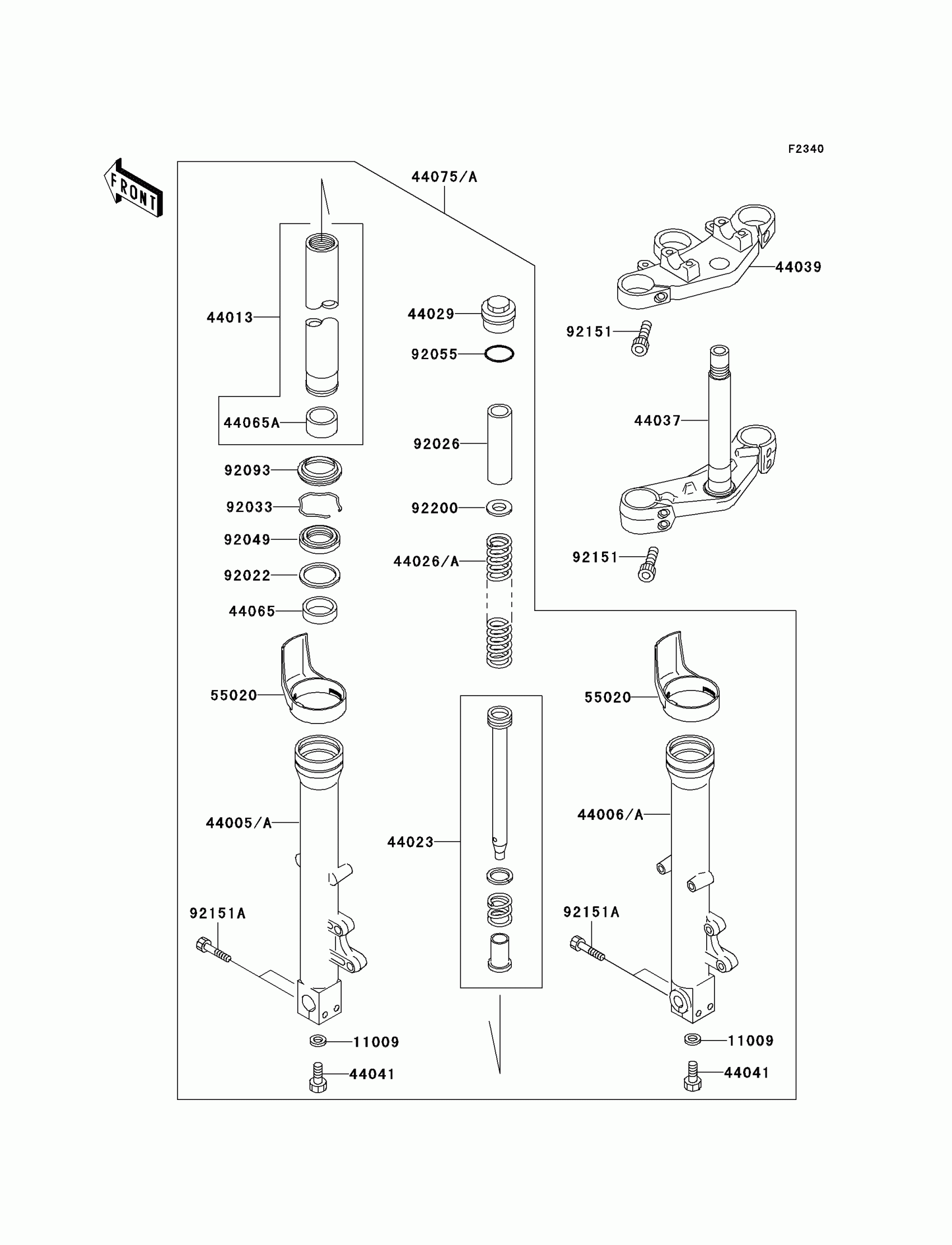

2005 Kawasaki ZR-7S (Canada Only) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X15X1.5

11009-1325

1
Out of stock

44005

PIPE-LEFT FORK OUTER

44005-0005

1
Out of stock

44006

PIPE-RIGHT FORK OUTER

44006-0005

1
Out of stock

44013

PIPE-FORK INNER

44013-1485

1

$342.18

In stock

44023

CYLINDER-SET-FORK

44023-1150

1

$147.92

In stock

44026

SPRING-FRONT FORK

44026-0018

1
Out of stock

44029

SEAT-FORK SPRING

44029-1147

1

$46.64

In stock

44037

HOLDER-FORK UNDER

44037-1392

1

$409.61

In stock

44039

HOLDER-FORK UPPER

44039-1296

1

$304.73

In stock

44041

1

$5.21

In stock

44065

1

$26.35

In stock

44065A

1

$16.31

In stock

44075

DAMPER-SET-FORK

44075-0007

1
Out of stock

55020

GUARD,FORK

55020-1691

1

$9.53

In stock

92022

1

$6.82

In stock

92026

SPACER

92026-1589

1

$8.66

In stock

92033

RING-SNAP

92033-1036

1

$5.15

In stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1494

1
Out of stock

92055

RING-O

92055-1321

1

$1.19

In stock

92093

1

$22.03

In stock

92151

BOLT,SOCKET,8X25

92151-1270

1

$3.17

In stock

92151A

BOLT,SOCKET,8X40

92151-1376

1

$4.75

In stock

92200

WASHER

92200-1467

1
Out of stock
