2005 Kawasaki ZR-7S (Canada Only) Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

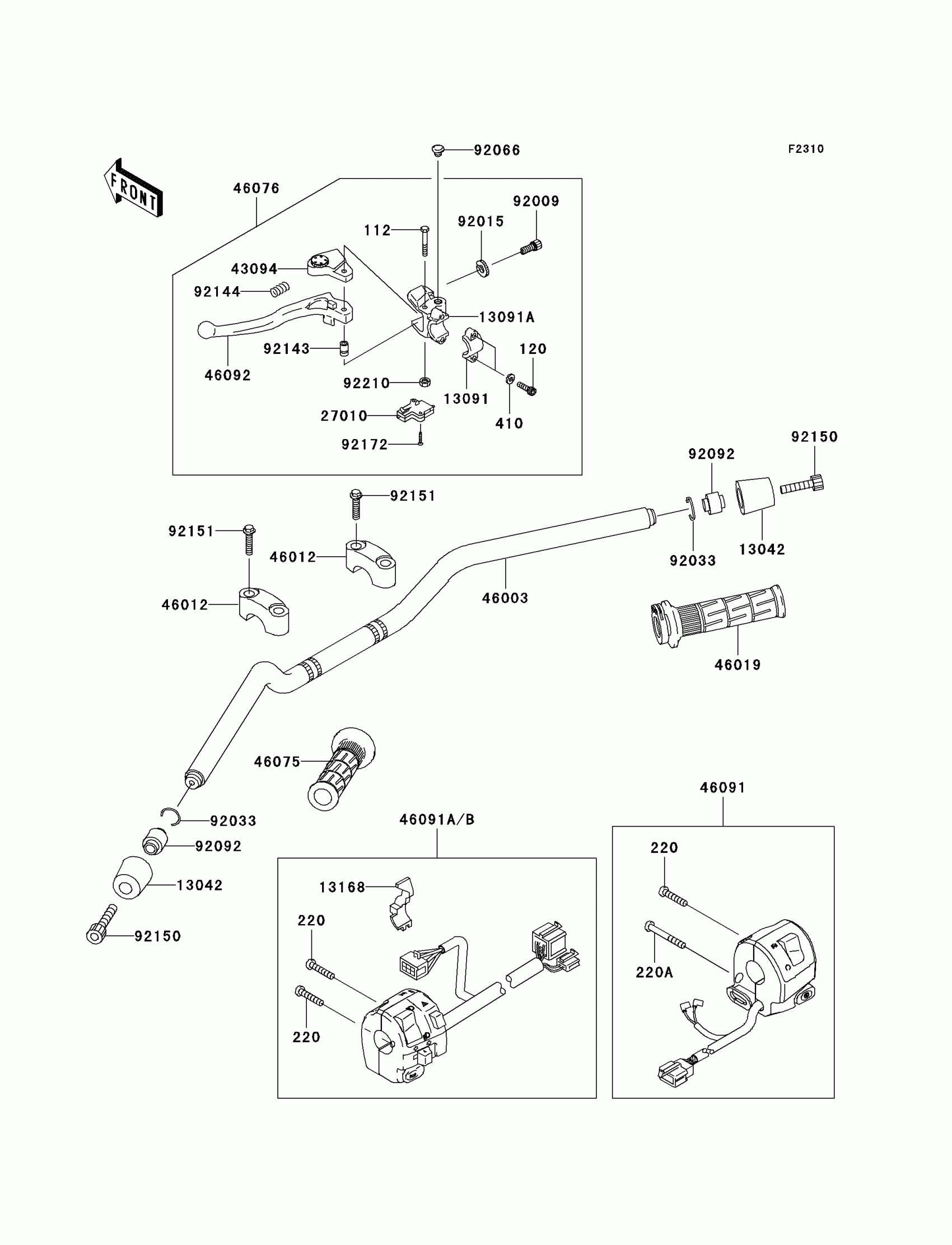

2005 Kawasaki ZR-7S (Canada Only) Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,6X40

112C0640

1
Out of stock

120

BOLT-SOCKET,6X20

120S0620

1
Out of stock

220

SCREW-PAN-CROS,5X25

220C0525

1
Out of stock

220A

SCREW-PAN-CROS,5X40

220C0540

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

1
Out of stock

13042

WEIGHT,HANDLE

13042-1006

1
Out of stock

13091

HOLDER,CLUTCH LEVER

13091-1624

1
Out of stock

13091A

HOLDER,CLUTCH LEVER

13091-1652

1
Out of stock

13168

LEVER,CHOKE

13168-1516

1
Out of stock

27010

SWITCH,CLUTCH,BLACK

27010-1094

1
Out of stock

43094

ADJUSTER,CLUTCH LEVER

43094-1053

1
Out of stock

46003

HANDLE

46003-1561

1
Out of stock

46012

HOLDER-HANDLE,UPP

46012-1295

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-0001

1
Out of stock

46075

GRIP,HANDLE,LH

46075-1144

1
Out of stock

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1180

1
Out of stock

46091

HOUSING-ASSY-CONTROL,RH

46091-1672

1
Out of stock

46091B

HOUSING-ASSY-CONTROL,LH

46091-1857

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-1162

1
Out of stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92015

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92033

RING-SNAP,OD=22.2

92033-1102

1
Out of stock

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

1
Out of stock

92092

BUSHING-RUBBER,HANDLE

92092-1018

1
Out of stock

92143

COLLAR

92143-1379

1
Out of stock

92144

SPRING

92144-1467

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1604

1
Out of stock

92151

BOLT,FLANGED,8X35

92151-1537

1
Out of stock

92172

SCREW,3X16

92172-0183

1
Out of stock

92210

NUT,LOCK,6MM

92210-0006

1
Out of stock
