2005 Kawasaki ZR-7S (Canada Only) Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

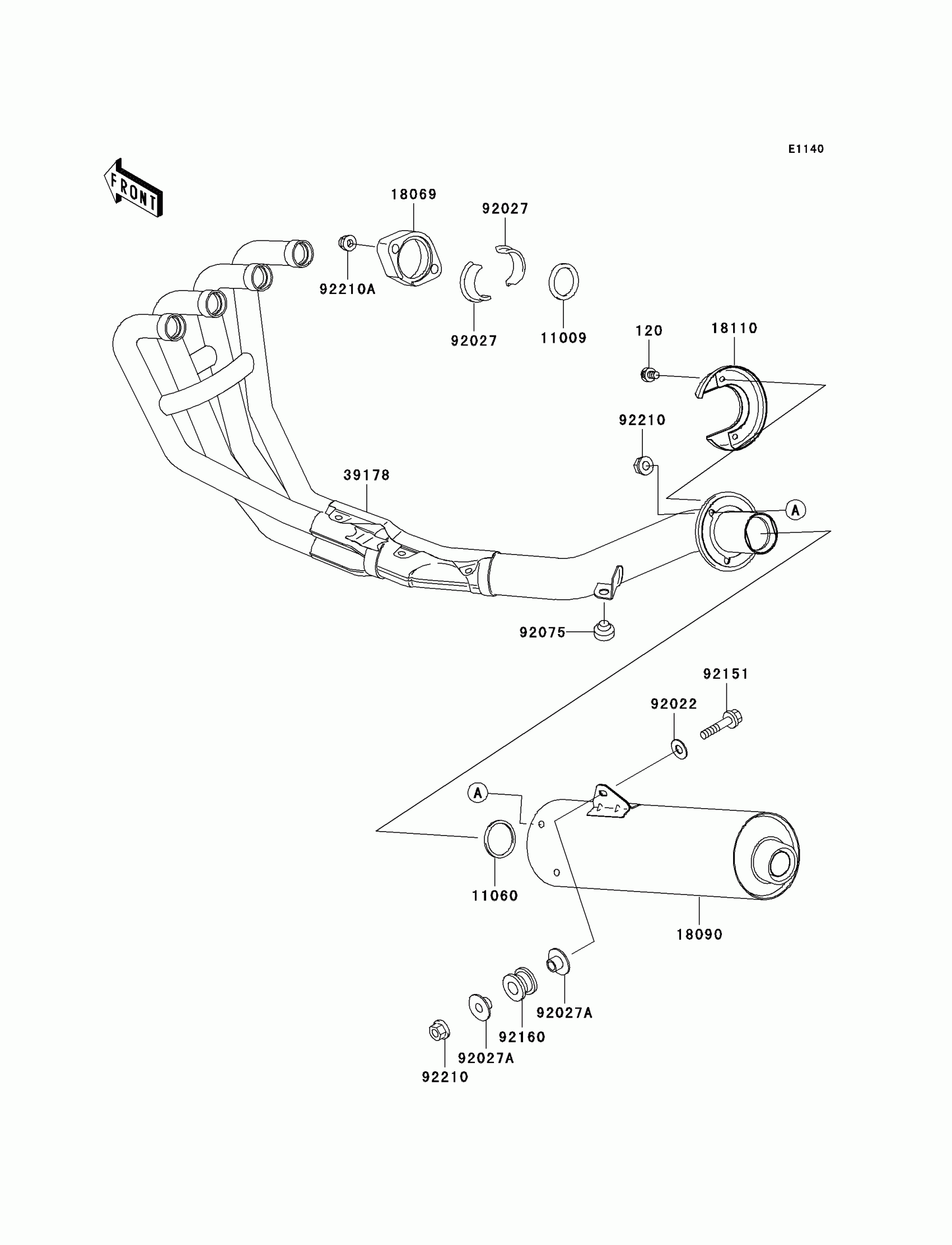

2005 Kawasaki ZR-7S (Canada Only) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X10

120R0610

1
Out of stock

11009

GASKET,EXHAUST PIPE H

11009-1866

1
Out of stock

11060

GASKET,MUFFLER CONNECTING

11060-1213

1
Out of stock

18069

HOLDER-EXHAUST PIPE

18069-1168

1
Out of stock

18090

BODY-COMP-MUFFLER

18090-1694

1
Out of stock

18110

BODY END-MUFFLER

18110-1168

1
Out of stock

39178

MANIFOLD-COMP-EXHAUST

39178-1302

1
Out of stock

92022

WASHER,8.5X19X1.2

92022-3730

1
Out of stock

92027

COLLAR,L=14.5

92027-1142

1
Out of stock

92027A

COLLAR,FLANGED,8.8X10.6

92027-1653

1
Out of stock

92075

DAMPER

92075-015

1
Out of stock

92151

BOLT,8X35

92151-1520

1
Out of stock

92160

DAMPER,MUFFLER MOUNT

92160-1116

1
Out of stock

92210

NUT,8MM

92210-1114

1
Out of stock

92210A

NUT,8MM

92210-1328

1
Out of stock
