2005 Kawasaki ZR-7S (Canada Only) Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

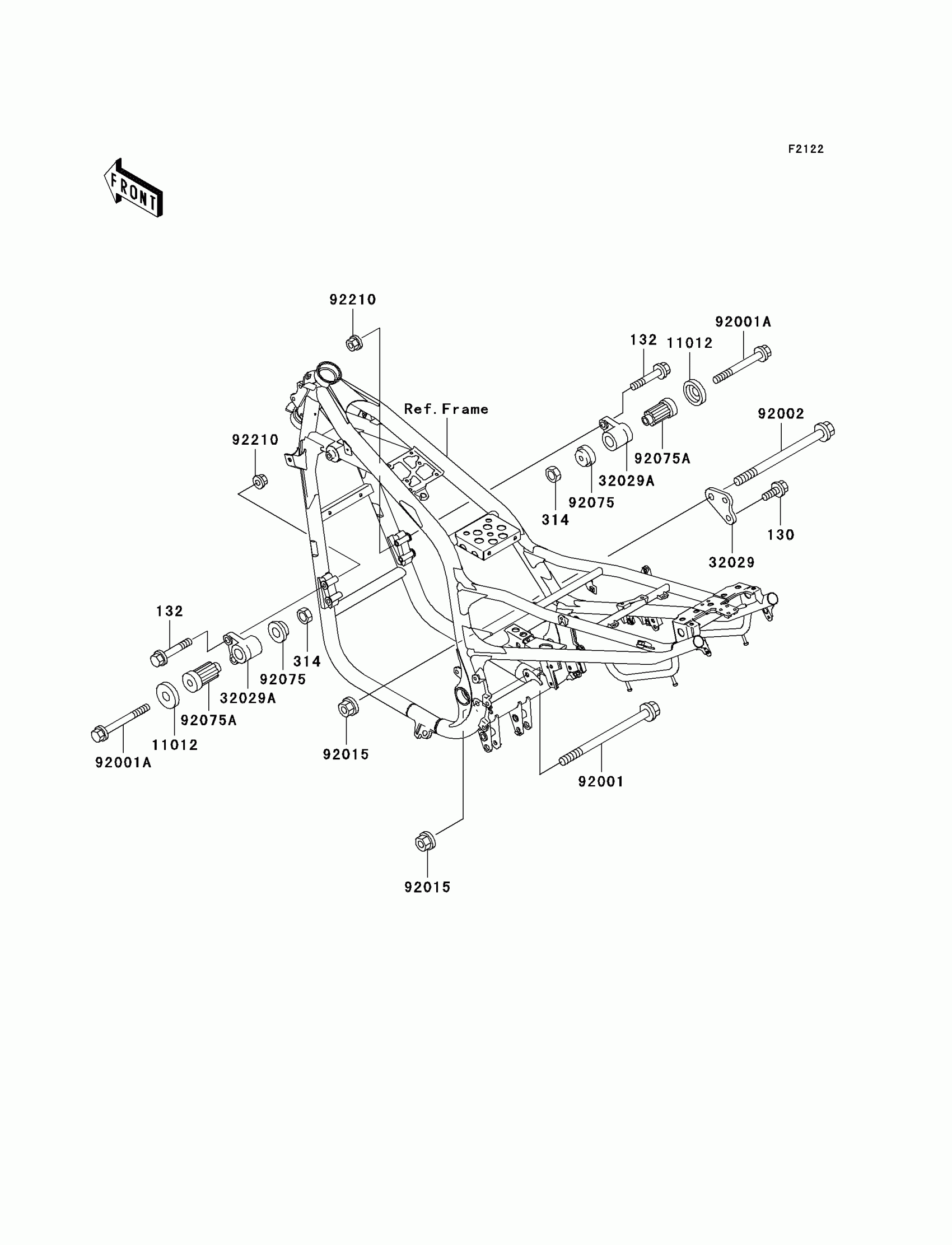

2005 Kawasaki ZR-7S (Canada Only) Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X20

130J0820

1
Out of stock

132

BOLT-FLANGED-SMALL,8X60

132J0860

1
Out of stock

314

NUT-HEX-FINE,10MM,BLACK

314C1000

1
Out of stock

11012

CAP,ENGINE BRACKET

11012-1228

1

$7.49

In stock

32029

1

$9.66

In stock

32029A

BRACKET-ENGINE,FR,C.GRAY

32029-1754-EZ

1

$15.54

In stock

92001

BOLT,FLANGED,10X180

92001-1621

1

$22.61

In stock

92001A

1

$13.64

In stock

92002

BOLT,FLANGED,10X190

92002-1548

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92075

1

$16.49

In stock

92075A

1

$31.41

In stock

92210

NUT,FLANGED,8MM

92210-0004

1
Out of stock
