2000 Kawasaki ZR-7 Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

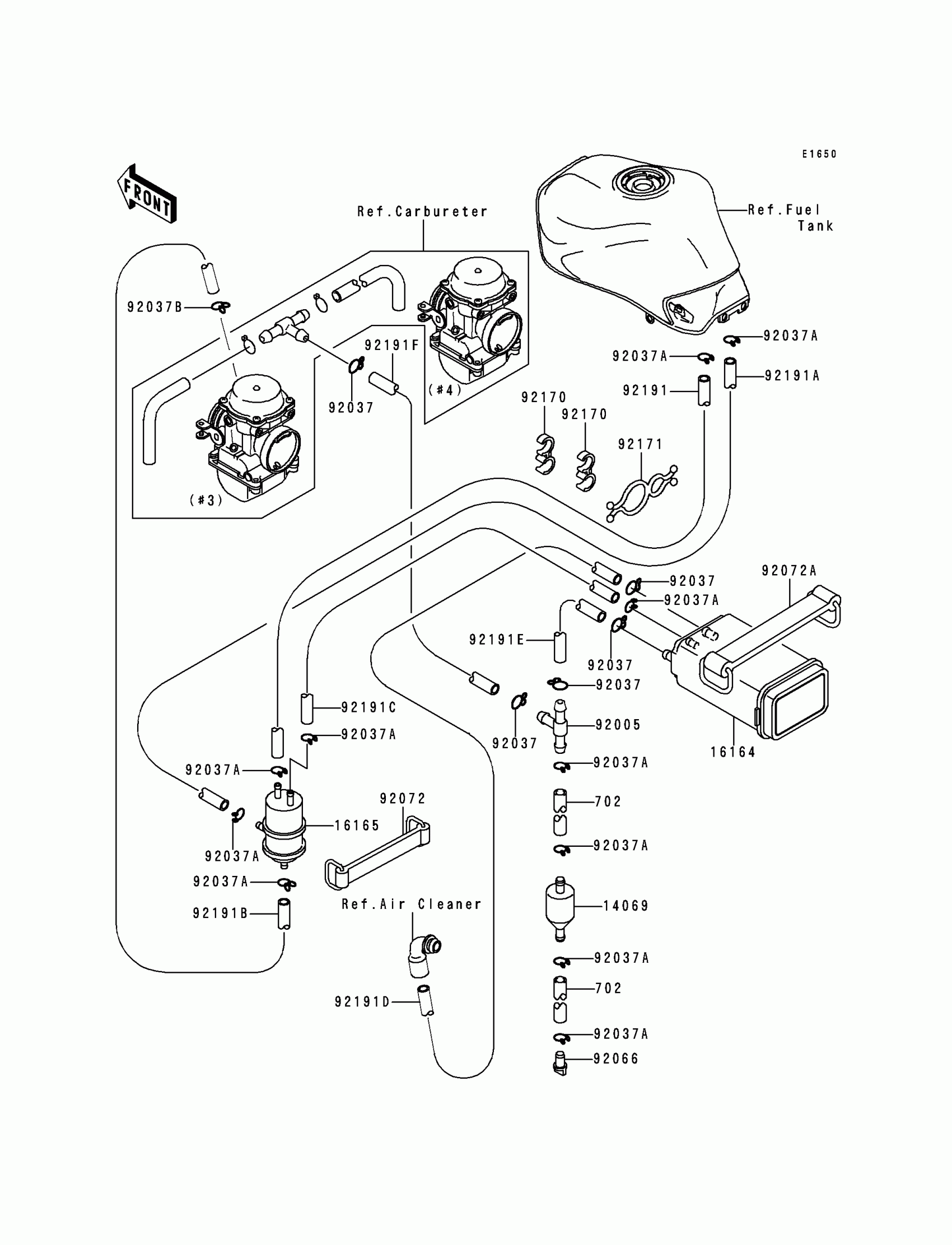

2000 Kawasaki ZR-7 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

702

TUBE-RUBBER,7X10X30

702A0730

1
Out of stock

14069

BREATHER

14069-1051

1
Out of stock

16164

CANISTER

16164-1052

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

92005

FITTING,T-TYPE

92005-1119

1
Out of stock

92037

CLAMP-HOSE

92037-1104

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP

92037-1712

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1
Out of stock

92072

BAND,L=50

92072-066

1
Out of stock

92072A

BAND

92072-1384

1
Out of stock

92170

CLAMP,TUBE

92170-1353

1
Out of stock

92171

CLAMP

92171-1176

1
Out of stock

92191

TUBE,TANK-SEPARATOR,BLUE

92191-1335

1
Out of stock

92191A

TUBE,TANK-SEPARATOR,RED

92191-1336

1
Out of stock

92191B

TUBE,CARBU-SEPARATOR,WHITE

92191-1337

1
Out of stock

92191C

TUBE,CANISTER-SEP,BLUE

92191-1338

1
Out of stock

92191D

TUBE,CREANER-CANISTER,GREEN

92191-1339

1
Out of stock

92191E

TUBE,FITTING-CANISTER,YELLOW

92191-1340

1
Out of stock

92191F

TUBE,CARBU-FITTING,YELLOW

92191-1387

1
Out of stock
