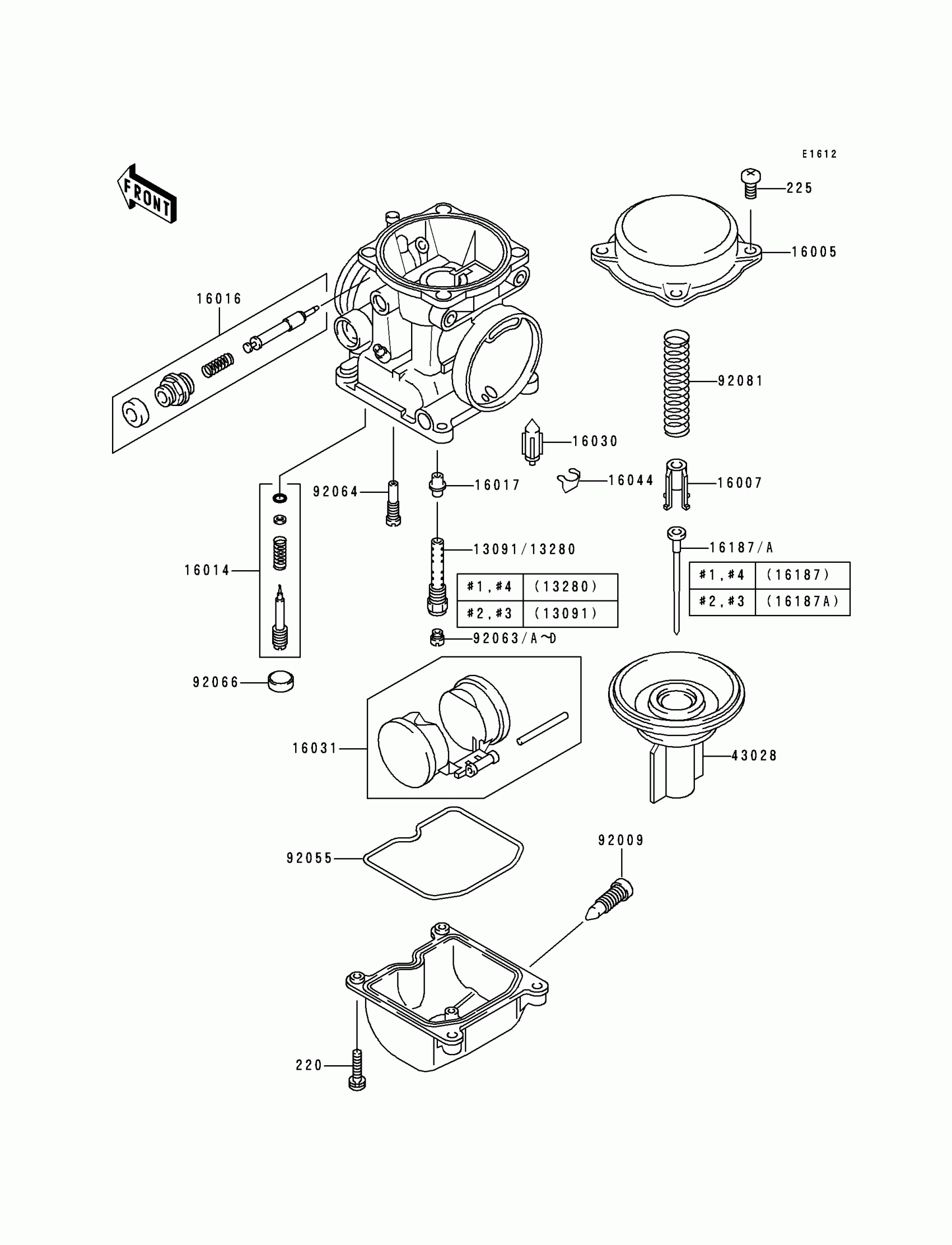

Kawasaki ZR-7 Carburetor Parts Diagram

#

Description
Price

220

SCREW-PAN-CROS,4X14

220D0414

$3.51

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable

13091

HOLDER,NEEDLE JET,0.6X18

13091-1925

Unavailable

13280

HOLDER,NEEDLE JET,0.7X14

13280-1176

$35.62

16005

TOP-CHAMBER,MIXING

16005-1056

$72.08

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$21.24

16014

SCREW-PILOT AIR

16014-1092

$17.92

16016

PLUNGER,STARTER

16016-1090

$69.58

16017

JET-NEEDLE,#6

16017-1409

$52.05

16030

VALVE-FLOAT

16030-1057

$41.75

16031

FLOAT

16031-1077

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16187

NEEDLE-JET,N6NC

16187-1117

Unavailable

16187A

NEEDLE-JET,N4MD

16187-1118

Unavailable

43028

DIAPHRAGM,VALVE

43028-1080

$204.57

92009

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92055

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92063

JET-MAIN,#110

92063-1007

Unavailable

92063A

JET-MAIN,#105

92063-1009

Unavailable

92063B

JET-MAIN,#102

92063-1090

Unavailable

92063C

JET-MAIN,#108

92063-1116

$14.02

92063D

JET-MAIN,#112

92063-1117

Unavailable

92064

JET-PILOT,#35

92064-1035

$14.31

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92081

SPRING,VACUUM VALVE

92081-1925

$23.73
