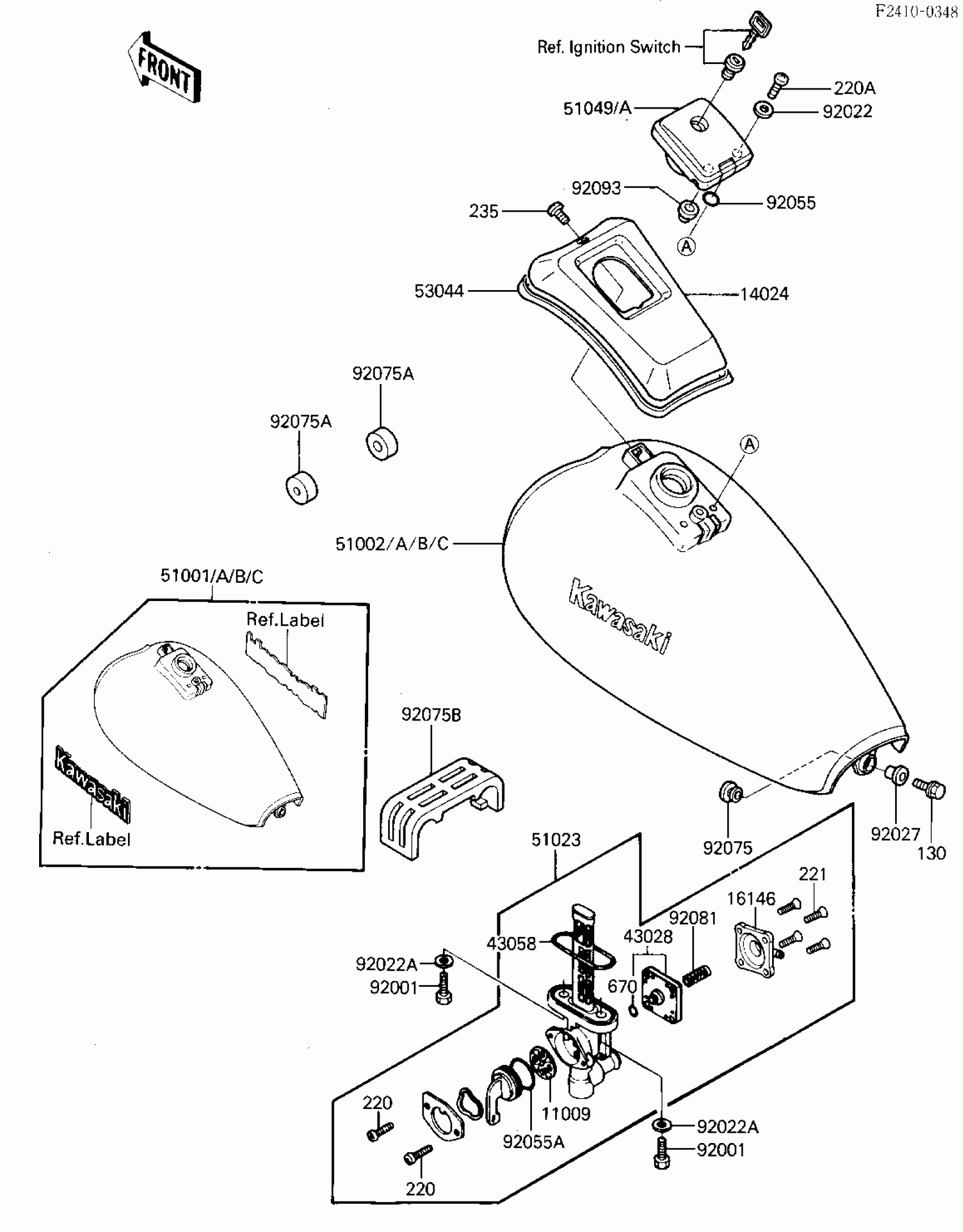

Find the part on the Fuel Tank diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki ZL600 Eliminator Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAP VALVE

11009-1188

1
Out of stock

14024

COVER,FUEL TANK CAP,E

14024-1237-H8

1
Out of stock

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

1
Out of stock

43028

DIAPHRAGM,TAP

43028-1021

1
Out of stock

43058

RING,TAP FLANGED

51039-003

1
Out of stock

51001

TANK-COMP-FUEL,C.W.RE

51001-1242-H3

1
Out of stock

51001B

TANK-COMP-FUEL,C.W.RE

51001-1255-H3

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1157

1
Out of stock

51049A

CAP-TANK,FUEL

51049-1086

1
Out of stock

53044

TRIM

53044-1160

1
Out of stock

92001

BOLT,6X20

92001-1091

1
Out of stock

92022

WASHER,5.3X10X0.8

92022-1038

1
Out of stock

92022A

WASHER-PLAIN

92022-183

1
Out of stock

92027

COLLAR,L=14.1

92027-1920

1
Out of stock

92055

RING-O

92055-1023

1
Out of stock

92055A

RING-O,TAP LEVER

92055-1085

1
Out of stock

92075

DAMPER

92075-1057

1
Out of stock

92075A

DAMPER,FUEL TANK

92075-125

1
Out of stock

92075B

DAMPER,FUEL TANK,CNT

92075-1848

1
Out of stock

92081

SPRING,TAP DIAPHRAGM

92081-1240

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

130

BOLT-FLANGED,6X25

130B0625

1
Out of stock

220

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

220A

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

221

SCREW-CSK-CROS,4X14

221B0414

1
Out of stock

235

SCREW-PAN-WP-CROS

235C0510

1
Out of stock

670

O RING,4MM

670B1504

1
Out of stock
