1987 Kawasaki ZL600 Eliminator Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

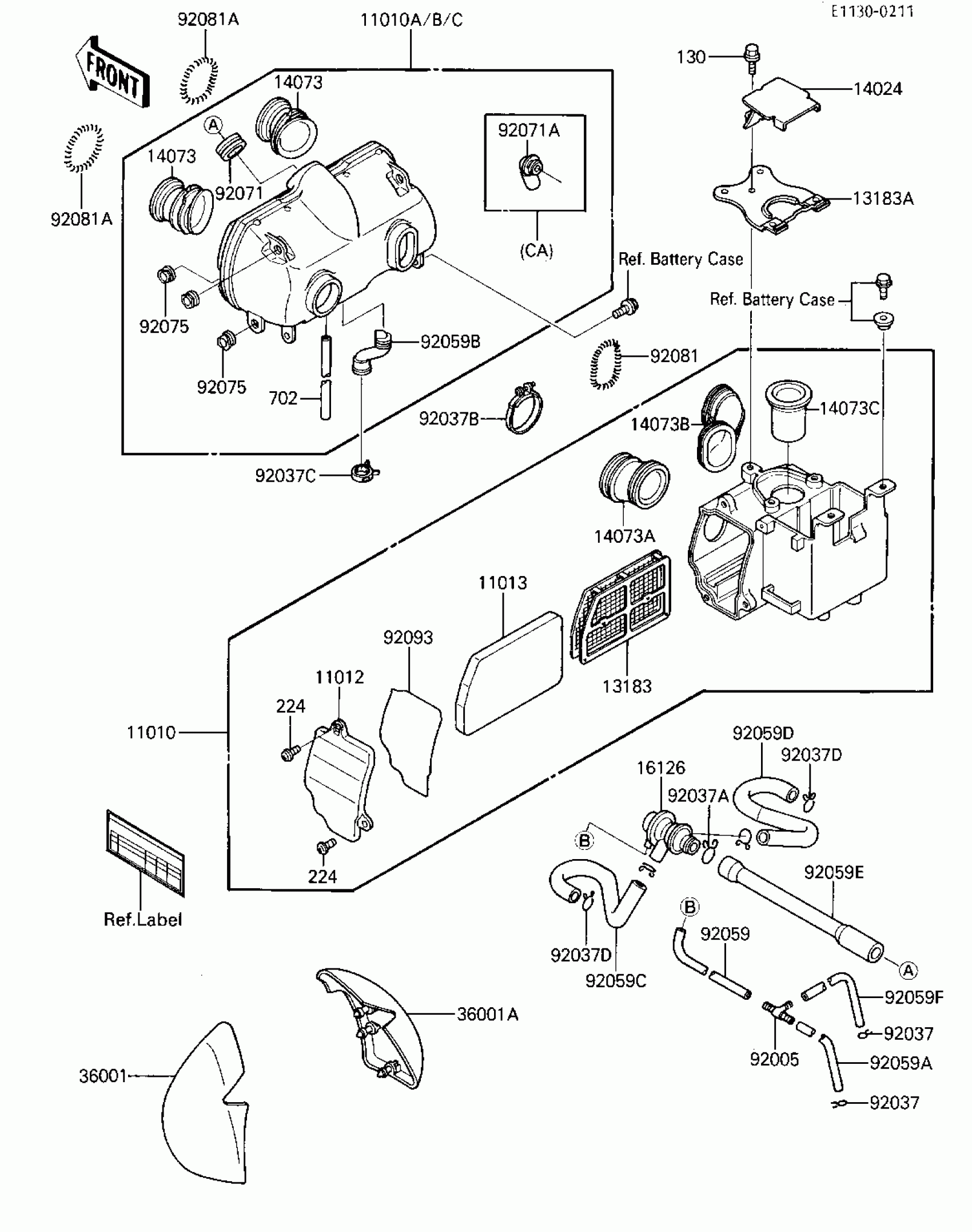

1987 Kawasaki ZL600 Eliminator Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR,RR

11010-1281

1
Out of stock

11010A

FILTER-ASSY-AIR,FR

11010-1286

1
Out of stock

11010B

FILTER-ASSY-AIR,FR

11010-1287

1
Out of stock

11012

CAP,AIR FILTER ELEMENT

11012-1503

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1139

1
Out of stock

13183

PLATE,AIR FILTER ELEM

13169-1657

1
Out of stock

13183A

PLATE,IGNITION COIL

13169-1664

1
Out of stock

14024

COVER,AIR INTAKE

14024-1215

1
Out of stock

14073

DUCT,CARBURETOR

14073-1211

1
Out of stock

14073A

DUCT,LH

14073-1249

1
Out of stock

14073B

DUCT,RH

14073-1250

1
Out of stock

14073C

DUCT,AIR INTAKE

14073-1251

1
Out of stock

16126

VALVE,AIR SWITCH

16126-1005

1
Out of stock

36001

COVER-SIDE,AIR FILTER,LH

36001-1326

1
Out of stock

36001A

COVER-SIDE,AIR FILTER,RH

36001-1327

1
Out of stock

92005

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

92037

CLAMP,TUBE

92037-072

1
Out of stock

92037A

CLAMP,TUBE

92037-1076

1
Out of stock

92037B

CLAMP

92037-1554

1
Out of stock

92037C

CLAMP

92037-1730

1
Out of stock

92037D

CLAMP,TUBE

92037-213

1
Out of stock

92059

TUBE,4X9X220

92059-1040

1
Out of stock

92059A

TUBE,4X9X80

92059-1365

1
Out of stock

92059B

TUBE,BREATHER

92059-1545

1
Out of stock

92059C

TUBE,AIR SWITCH VALVE,LH

92059-1674

1
Out of stock

92059D

TUBE,AIR SWITCH VALVE,RH

92059-1675

1
Out of stock

92059E

TUBE,AIR SWITCH-AIR FILTER

92059-1684

1
Out of stock

92059F

TUBE,4X9X260

92059-1712

1
Out of stock

92071

GROMMET,AIR FILTER

92071-1013

1
Out of stock

92071A

GROMMET,AIR FILTER

92071-1114

1
Out of stock

92075

DAMPER

92075-1470

1
Out of stock

92081

SPRING,COIL

92081-1177

1
Out of stock

92081A

SPRING,AIR FILTER DUCT

92144-1771

1
Out of stock

92093

SEAL,AIR FILTER CAP

92093-1212

1
Out of stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

224

SCREW-PAN-WP-CROS

224B0612

1
Out of stock

702

TUBE,5X1430

702A051430

1
Out of stock
