1987 Kawasaki ZL600 Eliminator Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

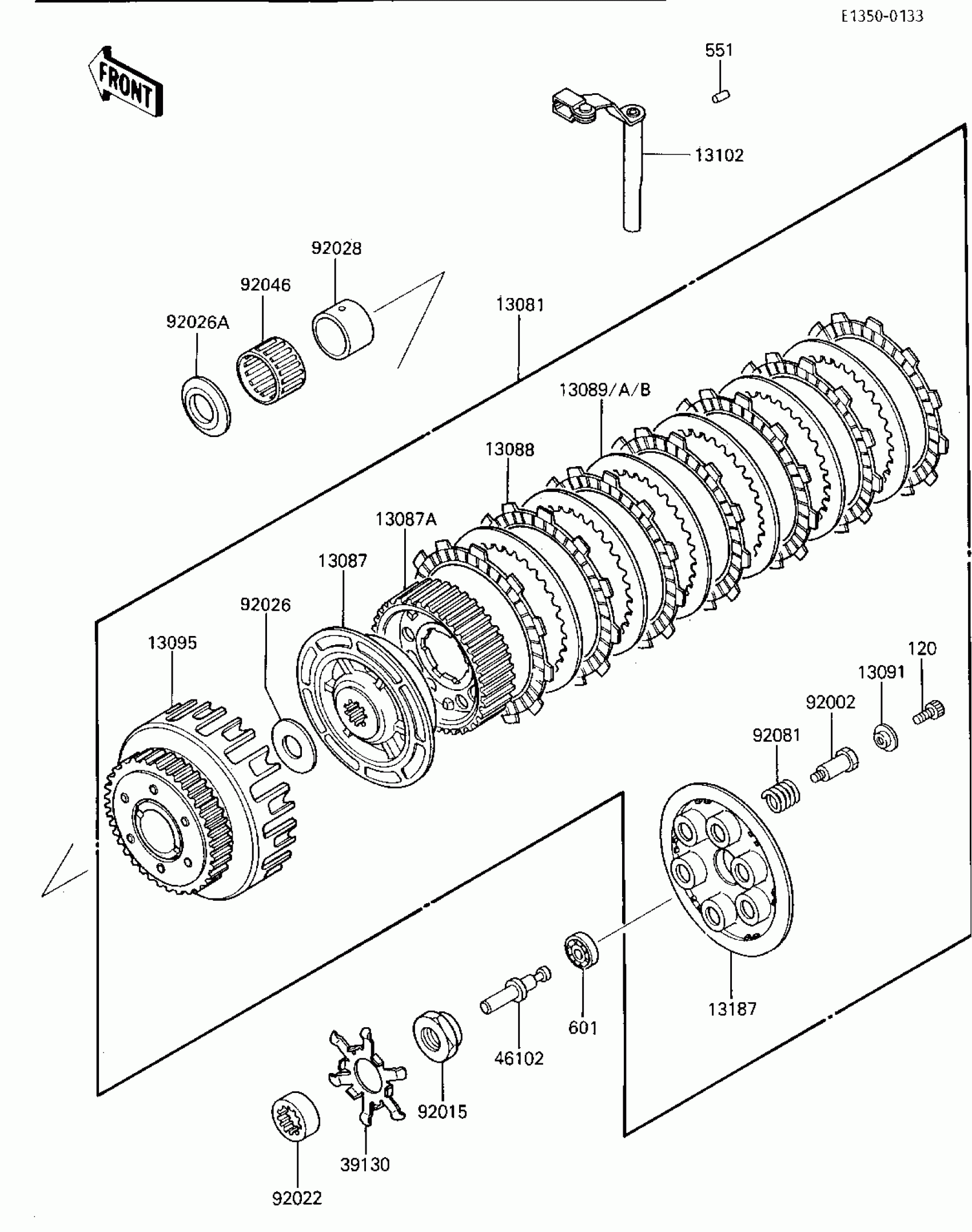

1987 Kawasaki ZL600 Eliminator Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13081

CLUTCH-ASSY

13081-1227

1
Out of stock

13087

HUB-CLUTCH

13087-1079

1
Out of stock

13087A

HUB-CLUTCH

13087-1080

1
Out of stock

13088

PLATE-FRICTION

13088-040

1

$9.95

In stock

13089

PLATE-CLUTCH,T=2.0

13089-026

—

$10.14

In stock

13089A

PLATE-CLUTCH,T=2.3

13089-1004

—

$10.41

In stock

13089B

PLATE-CLUTCH,T=2.6

13089-1067

—

$10.84

In stock

13091

1

$9.69

In stock

13095

HOUSING-COMP-CLUTCH

13095-1128

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-1080

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1058

1
Out of stock

39130

SPRING-LEAF

39130-1063

1
Out of stock

46102

ROD,CLUTCH

46102-1030

1

$27.10

In stock

92002

BOLT,CLUTCH

92002-1639

1
Out of stock

92015

NUT

92015-1538

1
Out of stock

92022

WASHER,TOOTHED,21.7X36X15.5

92022-1782

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

1

$16.49

In stock

92028

BUSHING,25X32X23.6

92028-178

1

$23.53

In stock

92046

1

$19.92

In stock

92081

SPRING,CLUTCH

92081-1114

1

$6.01

In stock

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock

551

PIN DOWEL 3X12

551A0312

1
Out of stock

601

1

$12.85

In stock
