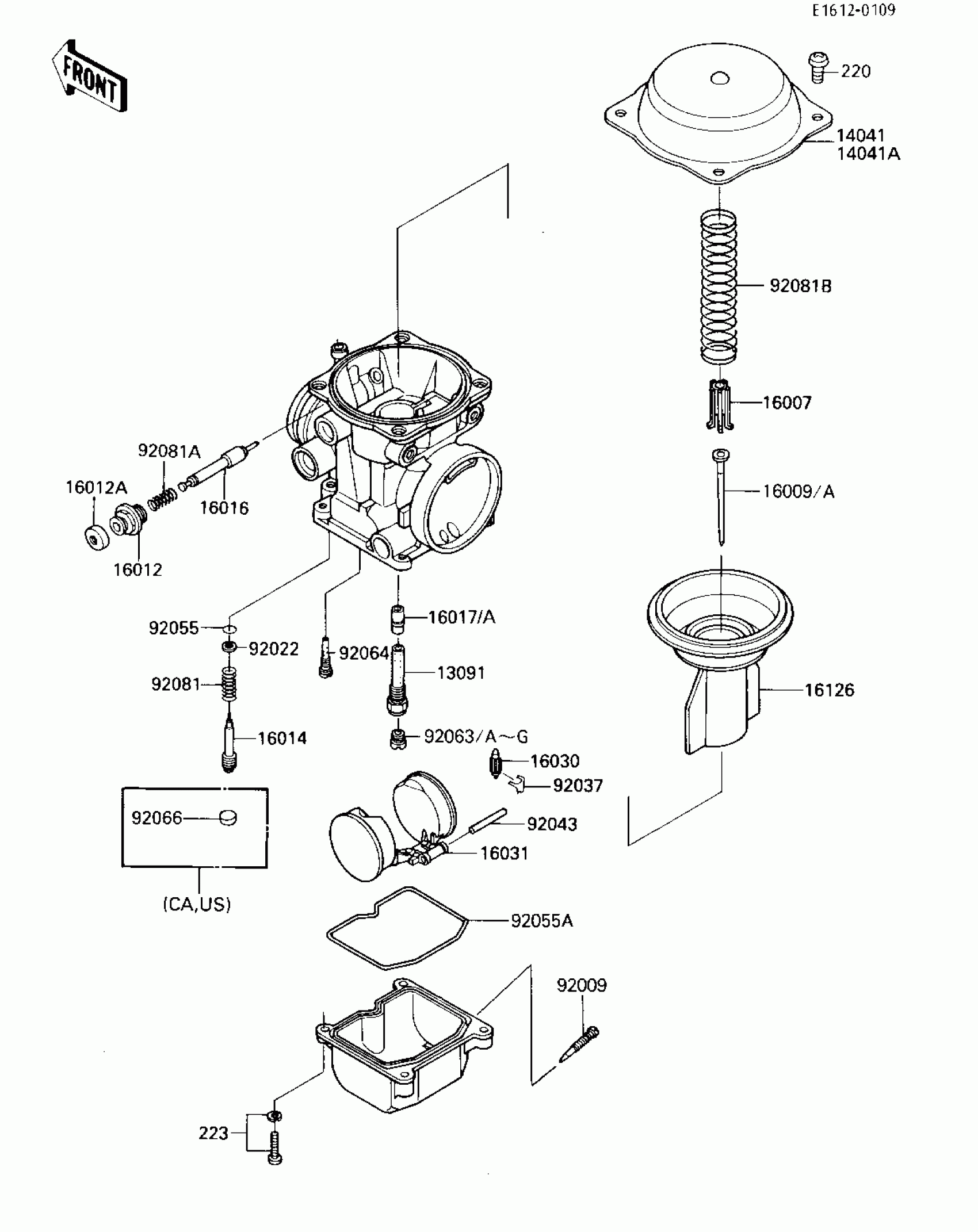

Kawasaki ZL600 Eliminator CARBURETOR PARTS Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1406

$34.01

14041

TOP-CHAMBER

14041-1076

$97.80

14041A

TOP-CHAMBER,MIXING,INSIDE

14041-1077

$97.80

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$21.24

16009

NEEDLE-JET,N27X

16009-1309

Unavailable

16012

CAP-STARTER PLUNGER

16012-1051

$8.50

16012A

CAP-STARTER PLUNGER

16012-1052

$11.72

16014

SCREW-PILOT AIR

16014-1054

$23.12

16016

PLUNGER,STARTER

16016-1061

$45.45

16017A

JET-NEEDLE

16017-1314

Unavailable

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1056

$47.31

16126

VALVE,VACUUM

16126-1159

$204.09

92009

SCREW,DRAIN,M6X1.0

92009-1095

$11.33

92022

WASHER,PLAIN

92022-1003

$3.29

92037

CLAMP,FLOAT VALVE

16044-007

$6.04

92043

PIN,FLOAT

92043-1148

$10.71

92055

RING-O,PILOT ADJUST

92055-1002

$3.29

92055A

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92063

JET-MAIN,#95

92063-1001

$14.59

92063A

JET-MAIN,#90

92063-1003

$11.23

92063B

JET-MAIN,#90

92063-1003

$11.23

92063C

JET-MAIN,#92

92063-1004

$11.72

92063D

JET-MAIN,#92

92063-1004

$11.72

92063E

JET-MAIN,#98

92063-1005

$14.59

92063F

JET-MAIN,#85

92063-1023

Unavailable

92063G

JET-MAIN,#88

92063-1024

$14.90

92064

JET-PILOT,#35

92064-1035

$14.31

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$4.14

92081A

SPRING,STARTER PLUNGER

92081-1761

$9.31

92081B

SPRING,VACUUM VALVE

92081-1912

$24.85

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

223

SCREW-PAN-WS-CROS,4X16

223C0416

$3.14
