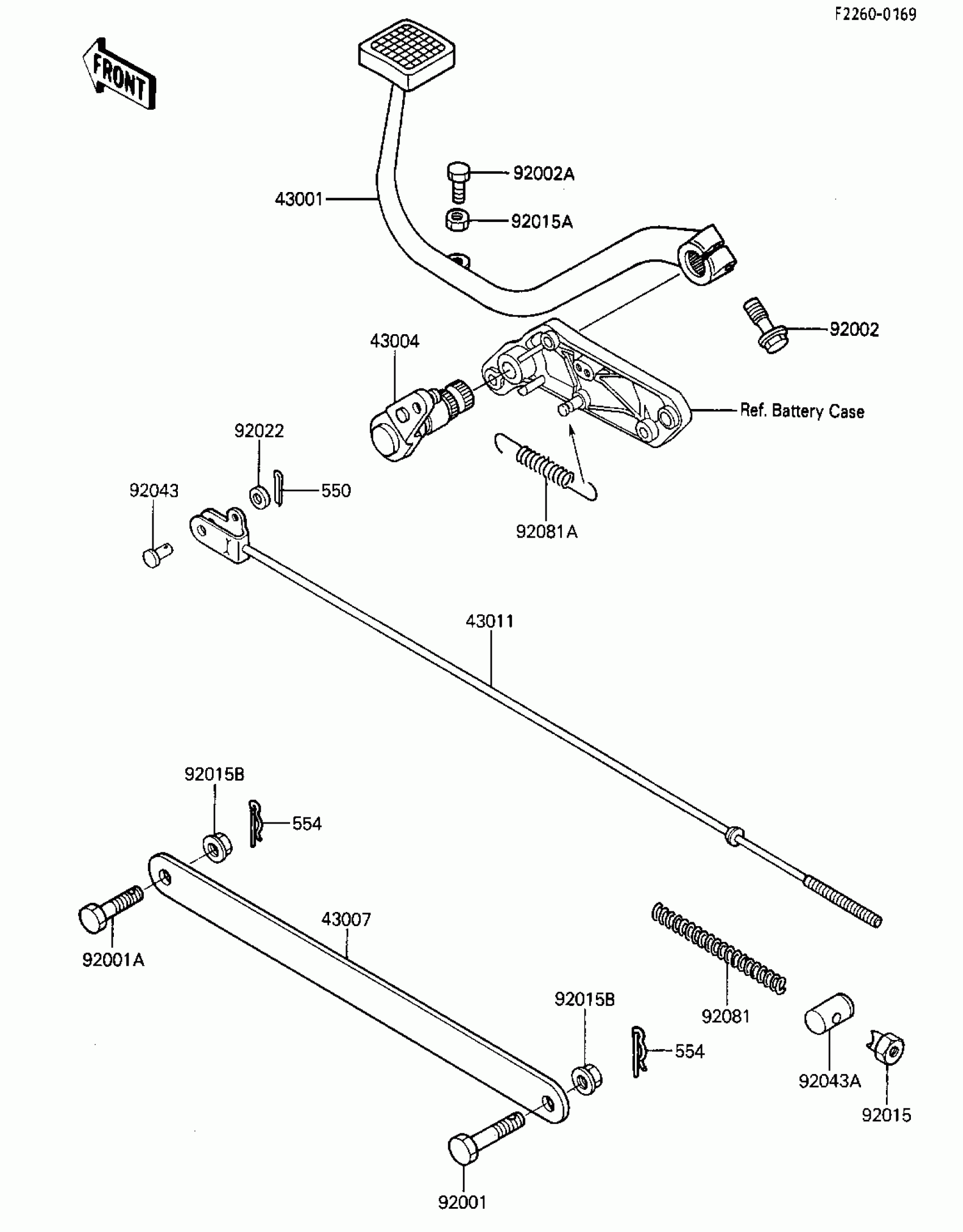

Kawasaki ZL600 Eliminator BRAKE PEDAL/TORQUE LINK Diagram

Description

Price

43001

LEVER-BRAKE,PEDAL

43001-1206

$151.71

43004

SHAFT-BRAKE

43004-1116

Unavailable

43007

ROD-TORQUE

43007-1028

$30.35

43011

ROD-BRAKE

43011-1130

$19.34

92001

BOLT,10X37

92001-1519

$7.49

92001A

BOLT,10X29

92003-096

Unavailable

92002

BOLT,FLANGED,8X25

92002-1201

$4.17

92002A

BOLT,6X20

92002-1373

$3.92

92015

NUT,BRAKE ROD

92015-042

$4.67

92015A

NUT,6MM

92015-1391

$1.77

92015B

NUT,FLANGED,10MM

92015-1428

$3.81

92022

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

92043

PIN,6X17

92043-064

$3.57

92043A

PIN,BRAKE ROD

92043-065

$4.23

92081

SPRING,BRAKE ROD

43012-001

$3.54

92081A

SPRING,SIDE STAND,BLACK

92081-1561

$10.22

550

PIN COTTER 2.0X15

550D2015

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable
