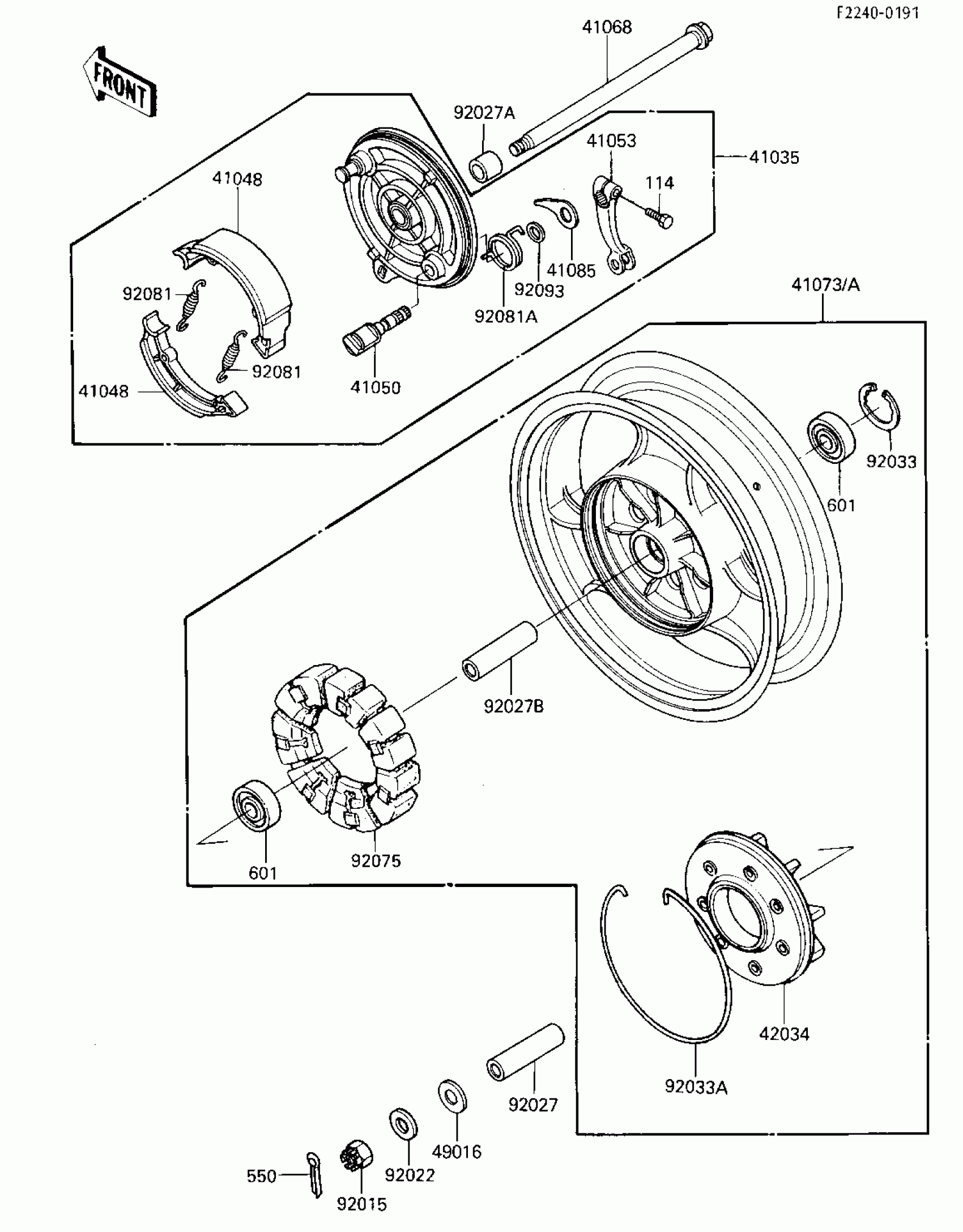

Kawasaki ZL600 Eliminator REAR WHEEL/HUB/BRAKE Diagram

Description

Price

41035

PANEL-ASSY-BRAKE,RR

41035-1210

$461.17

41048

SHOE-BRAKE

41048-1070

$37.86

41050

CAM-BRAKE

41050-017

Unavailable

41053

LEVER-BRAKE CAM

42029-039

$67.01

41068

AXLE,RR

41068-1223

$67.07

41073A

WHEEL-ASSY,RR,SILVER

41073-1337-T7

$671.22

41085

INDICATOR

41085-1054

$10.88

42034

COUPLING,RR HUB

42034-1029

$194.54

49016

COVER-SEAL,RR AXLE

49016-1038

Unavailable

92015

NUT,16MM

92015-055

$11.03

92022

WASHER,17.3X32X3.2

42046-009

$7.71

92027

COLLAR,17.2X25X79

92027-1415

Unavailable

92027A

COLLAR,AXLE,RR,RH,L=28.5

92027-1550

$13.34

92027B

COLLAR,17.2X25X74

92027-1867

$23.12

92033

RING-SNAP,47MM

92033-1042

$3.22

92033A

RING-SNAP,194MM

92033-1075

$11.94

92075

DAMPER,RR HUB SHOCK

92075-1372

$112.13

92081

SPRING,BRAKE SHOE

41049-012

$7.23

92081A

SPRING,BRAKE CAM LEVER RETURN

92081-1814

$8.01

92093

SEAL,BRAKE CAM

41051-003

$3.25

114

BOLT HEX HEAD 8X28

114G0828

Unavailable

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BEARING-BALL,#6303ZZC3

601B6303ZZ

$41.16
