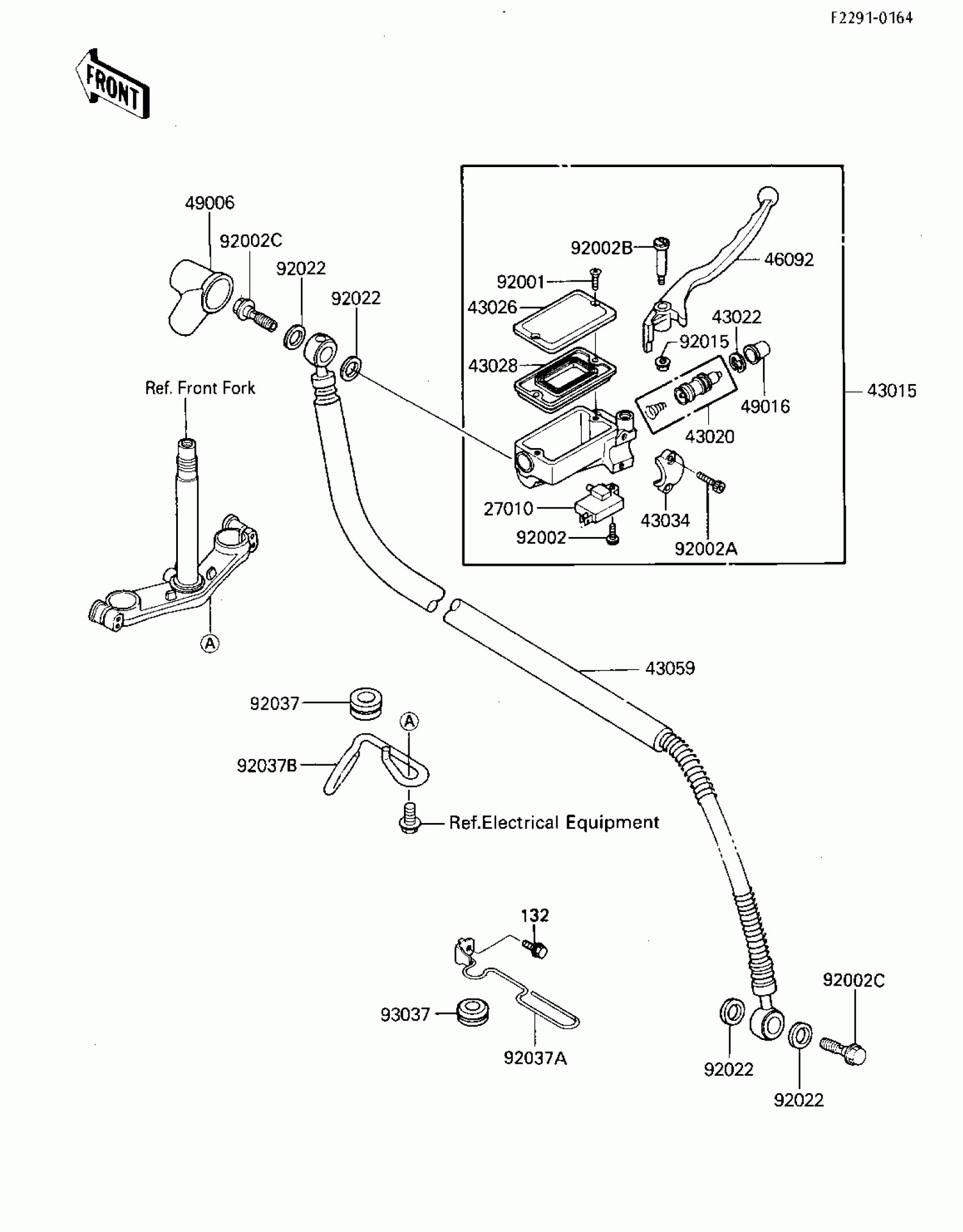

Find the part on the Front Master Cylinder diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki ZL600 Eliminator Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,BRAKE

27010-1170

1
Out of stock

43015

CYLINDER-ASSY-MASTER,

43015-1323

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1098

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE,FR

43026-1052

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

1
Out of stock

43059

HOSE-BRAKE,FR

43059-1361

1
Out of stock

46092

LEVER-GRIP,FRONT BRAK

46092-1121

1
Out of stock

49006

BOOT,DUST

49006-1041

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92001

SCREW,5MM,BLACK

92001-1727

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT,SOCKET,6X20,BLACK

92002-1324

1
Out of stock

92002B

BOLT,LEVER SET

92002-1561

1
Out of stock

92002C

BOLT,OIL,L=23

92002-1888

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1
Out of stock

92037

GROMMET,HOSE CLAMP

43064-006

1
Out of stock

92037A

CLAMP,BRAKE HOSE,LH

92037-1702

1
Out of stock

92037B

CLAMP,HOSE

92037-1833

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock
