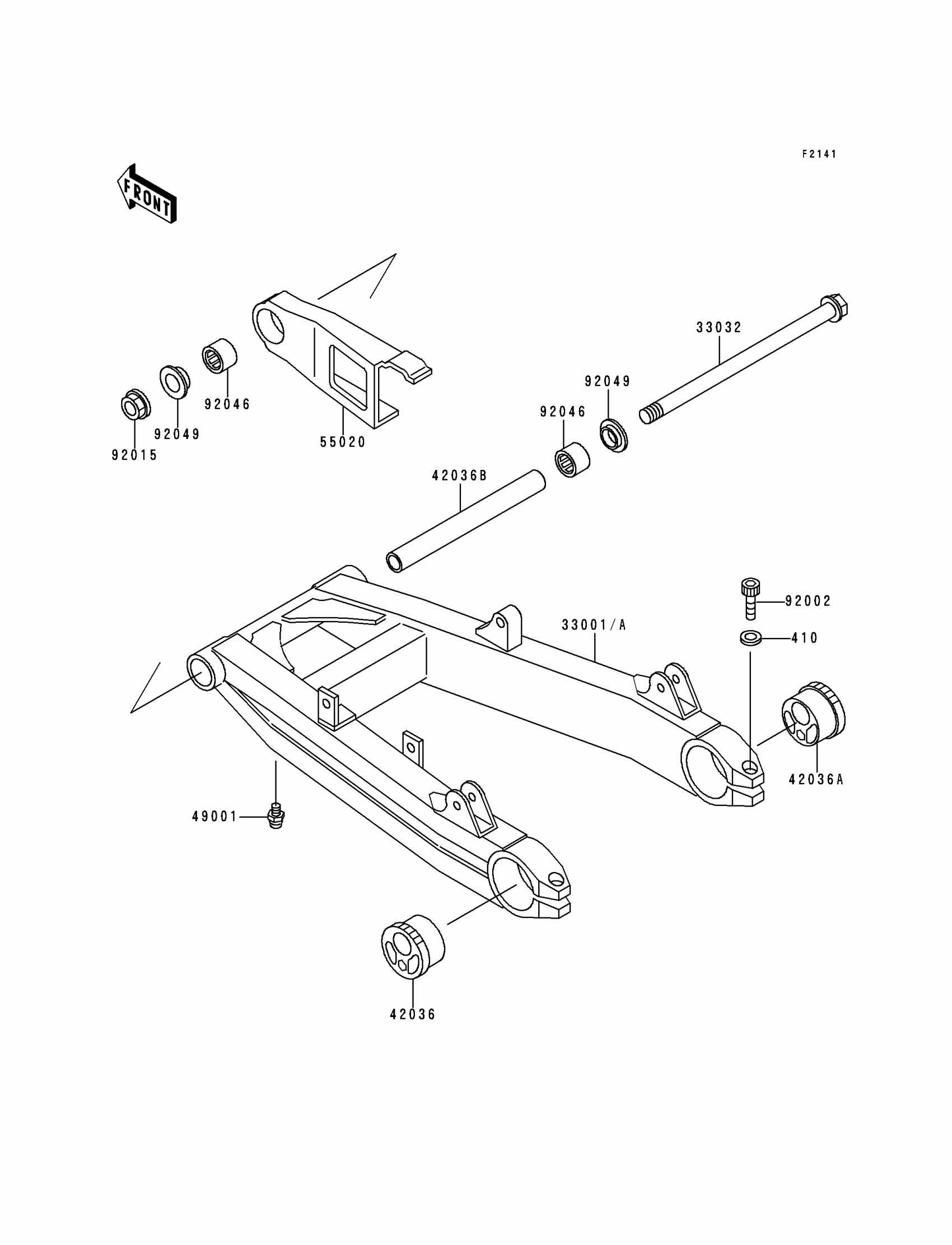

Find the part on the Swing Arm diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

W-PLAIN-S

410E1000

1

$0.63

In stock

33001A

1

$633.05

In stock

33032

SHAFT-SWING ARM

33032-1146

1

$42.24

In stock

42036

SLEEVE,AXLE,LH

42036-1147

1

$84.05

In stock

42036A

SLEEVE,AXLE,RH

42036-1148

1

$84.05

In stock

42036B

SLEEVE,17.1X25X230

42036-1220

1
Out of stock

49001

NIPPLE-GREASE

49001-1051

1

$2.44

In stock

55020

GUARD,CHAIN

55020-1353

1
Out of stock

92002

BOLT,SOCKET,10X40

92002-1452

1

$7.14

In stock

92015

NUT,16MM

92015-1041

1
Out of stock

92046

1

$23.73

In stock

92049

SEAL-OIL,MHA25X33X5.7F

92049-1166

1
Out of stock
